Enclosure Fan Heaters |
| CR027 Series |
|
 |
|
|
|
|
|
¥
2,370.00
CR2700900
|
| • |

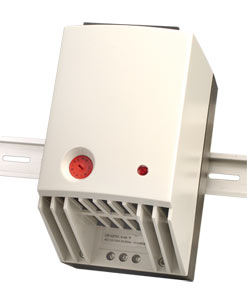

Compact Enclosure Fan Heater in PTC Technology
|
| • |
Compact Fan Heater in PTC Technology
|
| • |
Heating Power Adjusts to Ambient Temperature
|
| • |
Integrated Adjustable Thermostat and Control Light
|
| • |
DIN Rail Mountable
|
View related products - NEMA Electrical Enclosures
|
| |
|
|
|
 |
An easy DIN rail mountable design makes the
CR027 Series fan heater an ideal accessory
for any enclosure. The CR027 maintains
minimum operating temperatures in
enclosures and helps to prevent failure of
electronic components caused by
condensation and corrosion.
To determine the required heater size follow
this equation:
PH = (A x ΔT x k) - Pv
PH = Required heating power for your application in Watts (W)
Pv = Heating power generated by existing components (e.g. a transformer) in Watts (W)
A = Exposed enclosure surface area square meters (m2)
ΔT = Temperature differential between the desired minimum interior temperature and lowest possible external temperature of the enclosure in Kelvin (K), 1.8°F = 1°C = 1K
k = Heat transmission coefficient of the enclosure material used:
Stainless Steel: 3.7 W/m2K
Painted Steel: 5.5 W/m2K
Aluminum: 12 W/m2K
Polyester/Plastic: 3.5 W/m2K
For outdoor applications it is recommended to double the heating power.
SPECIFICATIONS
Heating Element: PTC-semiconductor/ resistor, self-regulating with changing ambient temperaure (see graph in spec sheet)
Thermostat Range: 0 to 60°C (32 to 140°F)
Overheat Protection: Built-in temperature limit in case of fan failure
Function Control Light: LED
Housing: Plastic, UL94V-0
Dimensions: 165 H x 100 W x 128 mm D (6.5 x 3.94 x 5")
Connection: 2-pole terminal, 2.5 mm2 (AWG 14 max)
Mounting: Clip for 35 mm DIN rail (EN 50022)
Protection Class: II (double insulated)
Protection Type: NEMA 2 (IP20)
Axial Fan (Ball Bearing):
CR02702700900,CR02702700901: 35 m3/h (20 cfm)
CR02702701900, CR02702701901: 45 m3/h (26 cfm)
Max Current (Inrush):
CR02702700900, CR02702700901: 14 A
CR02702701900, CR02702701901: 15 A
Weight:
CR02702700900, CR02702700901: 0.9 kg (2 lb)
CR02702701900, CR02702701901: 1.1 kg (2.4 lb)
|
|
|
|
|
|
† Price are shown in RMB.
Note: Comes with complete operator’s manual.
|
|
|
|
|
| |
|
