Hazardous Area Enclosure Heater 50W, 100W |
| CREX020 Series |
|
 |
|
|
|
|
 |
The CREX020 Series has been discontinued, but superseded by the CREX03 Series.

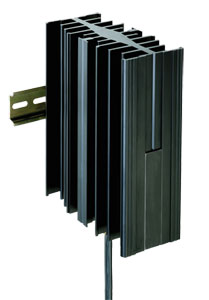

Compact convection heater of temperature class T3 (200 °C max.) for use in areas
with explosion hazard. For the prevention of
formation of condensation, temperature
fluctuations, and for protection against frost
in transmitter housings, switch cabinets, enclosures and
measuring equipment.
SPECIFICATIONS
Explosion Protection According to EN: Gases: Ex db IIC T3 Gb --
Dusts: Ex tb IIIC T200°C Db IP66
Conformity Certificate: EPS 16 ATEX 1 109 X --
IECEx EPS 16.0048X --
EAC
Heating Element: High performance cartridge
Heater Body: Aluminium profile, silver anodised
Connection: Silicone cable (halogen-free) 3 x 0.75 mm², length 1 m
Connection PE: 0.75 to 2.5 mm²
Mounting Clip: clip for 35 mm DIN rail, EN 60715
for heating body sizes 80 x 48 mm
Fitting Position: Vertical
Operating/Storage Temperature: -60 to +85 °C (-76 to +185 °F)
Protection Type/Protection Class: IP66 / I (earthed)
|
|
|
|
|
|
† Price are shown in RMB.
Note: Comes with complete operator’s manual.
|
|
|
|
|
| |
|
