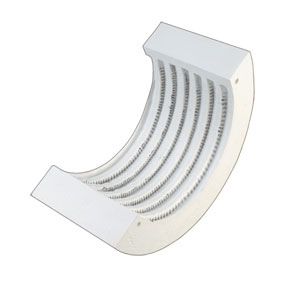

CERAMIC RIBBON HEATERS Ultra-High Temperature, Helically Wound
CRRS Series

Tube Furnace Heaters
CRRS Series:CERAMIC RIBBON HEATERS Ultra-High Temperature, Helically Wound
Click for larger image.

¥ 5,510.00  CRRS-68/120-A
• Helically Wound Ribbon Iron-Chrome-Aluminum
• Rated to 1800°F (900°C)
• Low Mass Vacuum Formed Ceramic Fiber
• Use Two Semi- Cylindrical Units to Form a Full Cylinder
• APPLICATIONS
• Pipe Heating
• Process Air Heating
• Calibration Ovens
• Strain Annealing Ovens
• Tube Furnace

View related products - Radiant Heaters

Click to scroll below to order See Specs PDF Manuals View a printer friendly page

CRRS Series


Watts Volts Dimensions in inches (cm) Without Vestibules
Model No.		 With Vestibules
Model No.
A DIM B DIM C DIM D DIM
8001206 (15)11 (28)7 (18)5 (13)CRRS-67/120-ACRRS-67/120-C-A
160024012 (30)11 (28)7 (18)5 (13)CRRS-127/240-ACRRS-127/240-C-A
240024018 (46)11 (28)7 (18)5 (13)CRRS-187/240-ACRRS-187/240-C-A
320024024 (61)11 (28)7 (18)5 (13)CRRS-247/240-ACRRS-247/240-C-A
9001206 (15)12 (30)8 (20)6 (15)CRRS-68/120-ACRRS-68/120-C-A
180024012 (30)12 (30)8 (20)6 (15)CRRS-128/240-ACRRS-128/240-C-A
270024018 (46)12 (30)8 (20)6 (15)CRRS-188/240-ACRRS-188/240-C-A
360024024*** (61)12 (30)8 (20)6 (15)CRRS-248/240-ACRRS-248/240-C-A
225024012 (30)14 (36)10 (25)8 (20)CRRS-1210/240-ACRRS-1210/240-C-A
337524018 (46)14 (36)10 (25)8 (20)CRRS-1810/240-ACRRS-1810/240-C-A
450024024*** (61)14 (36)10 (25)8 (20)CRRS-2410/240-ACRRS-2410/240-C-A
270024012 (30)16 (41)12 (30)10 (25)CRRS-1212/240-ACRRS-1212/240-C-A
405024018 (46)16 (41)12 (30)10 (25)CRRS-1812/240-ACRRS-1812/240-C-A
540024024***(61)16 (41)12 (30)10 (25)CRRS-2412/240-ACRRS-2412/240-C-A
340024012 (30)19 (48)15 (38)13 (33)CRRS-1215/240-ACRRS-1215/240-C-A
510024018 (46)19 (48)15 (38)13 (33)CRRS-1815/240-ACRRS-1815/240-C-A
6800240**24*** (61)19 (48)15 (38)13 (33)CRRS-2415/240-ACRRS-2415/240-C-A
410024012 (30)22 (56)18 (46)16 (41)CRRS-1218/240-ACRRS-1218/240-C-A
6150240**18 (46)22 (56)18 (46)16 (41)CRRS-1818/240-ACRRS-1818/240-C-A
8200240**24*** (61)22 (56)18 (46)16 (41)CRRS-2418/240-ACRRS-2418/240-C-A
475024012 (30)25 (64)21 (53)19 (48)CRRS-1221/240-ACRRS-1221/240-C-A
7125240**18 (46)25 (64)21 (53))19 (48)CRRS-1821/240-ACRRS-1821/240-C-A
9500240**24*** (61)25 (64)21 (53)19 (48)CRRS-2421/240-ACRRS-2421/240-C-A
* Add 3" for units with vestibules
** Dual 240 VAC circuits
*** Using two 12" long heaters; the indicated wattage is the total of two 12" long heaters.


CRFP Series


Watts Volts Dimensions in inches (cm) Without Flanges
Model No.		 With Flanges
Model No.
A DIM B DIM C DIM D DIM
300606 (15)4 (10)2 (5)8 (20)CRFP-64/60-ACRFP-64/60-C-A
60012012 (30)4 (10)2 (5)8 (20)CRFP-124/120-ACRFP-124/120-C-A
400606 (15)6 (15)2 (5)10 (25)CRFP-66/60-ACRFP-66/60-C-A
80012012 (30)6 (15)2 (5)10 (25)CRFP-126/120-ACRFP-126/120-C-A
125012018 (46)6 (15)2 (5)10 (25)CRFP-186/120-ACRFP-186/120-C-A
165024024 (61)6 (15)2 (5)10 (25)CRFP-246/240-ACRFP-246/240-C-A
110012012 (30)8 (20)2 (5)12 (30)CRFP-128/120-ACRFP-128/120-C-A
165024018 (46)8 (20)2 (5)12 (30)CRFP-188/240-ACRFP-188/240-C-A
220024024 (61)8 (20)2 (5)12 (30)CRFP-248/240-ACRFP-248/240-C-A
137524012 (30)10 (25)2 (5)14 (36)CRFP-1210/240-ACRFP-1210/240-C-A
205024018 (46)10 (25)2 (5)14 (36)CRFP-1810/240-ACRFP-1810/240-C-A
275024024 (61)10 (25)2 (5)14 (36)CRFP-2410/240-ACRFP-2410/240-C-A
340024030 (76)10 (25)2 (5)14 (36)CRFP-3010/240-ACRFP-3010/240-C-A
165024012 (30)12 (30)2 (5)16 (41)CRFP-1212/240-ACRFP-1212/240-C-A
246024018 (46)12 (30)2 (5)16 (41)CRFP-1812/240-ACRFP-1812/240-C-A
328024024 (61)12 (30)2 (5)16 (41)CRFP-2412/240-ACRFP-2412/240-C-A
410024030 (76)12 (30)2 (5)16 (41)CRFP-3012/240-ACRFP-3012/240-C-A
370024018 (46)18 (46)2 (5)22 (56)CRFP-1818/240-ACRFP-1818/240-C-A
500024024 (61)18 (46)2 (5)22 (56)CRFP-2418/240-ACRFP-2418/240-C-A
6200240*30 (76)18 (46)2 (5)22 (56)CRFP-3018/240-ACRFP-3018/240-C-A
*Dual 240 VAC circuits
Order on www.omegaengineering.cn and 5% will be discounted when you checkout.
  To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping
 Part Number   Availability   Price(RMB)   Description    Qty.
 Example part numbers are shown below. For additional configurations see the Part Number Builder below this table.
 CRRS-1810/240-C-A 11 Weeks   ¥16,290.00    Heater with vestibules, 3375 W, 240 V
 CRRS-1818/240-A 11 Weeks   ¥24,040.00    Heater without vestibules, 6150 W, 240 V
 CRRS-68/120-A 11 Weeks   ¥5,510.00    Heater without vestibules, 900 W, 120 V
 CRFP-1210/240-C-A 11 Weeks   ¥6,325.00    Heater with flanges, 1375 W, 240 V
 CRFP-1810/240-C-A 11 Weeks   ¥8,435.00    Heater with flanges, 2050 W, 240 V
 CRFP-186/120-A 11 Weeks   ¥6,190.00    Heater without flanges, 1250 W, 120 V
† Price are shown in RMB.
   Part Number Builder
(1) (2) (3) (4) (5)
-
-
/
/
-
-
A
A
Qty:
Option Descriptions
(1) Model
  Select
CRRS for CRRS series
CRFP for CRFP series
(2) A DIM
  Select
6 for 6 in.
12 for 12 in.
18 for 18 in.
24 for 24 in.
30 for 30 in.
(3) Dimension (C DIM for CRRS Series or B DIM for CRFP Series)
  Select
4 for 4 in.
6 for 6 in.
7 for 7 in.
8 for 8 in.
10 for 10 in.
12 for 12 in.
15 for 15 in.
18 for 18 in.
21 for 21 in.
(4) Voltage
  Select
60 for 60 Vac
120 for 120 Vac
240 for 240 Vac
(5) Vestibules/Flanges
  Select
Nothing(leave field blank) for heater without vestibules/Flanges
-C for heater with Vestibules/Flanges
 NOTE: All combinations may not be valid, check spec sheet for valid part numbers.
