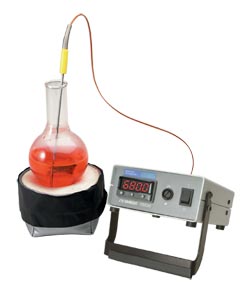

Compact CN9500 Controller in Rugged Benchtop Case
 |
| Click for larger image. |
|
|
|
|
| • |
4-Digit Display, 1 or 0.1° Resolution
|
| • |
Full Autotune PID Heat-Cool Control
|
| • |
Single Ramp and Soak Capability
|
| • |
High Accuracy (± 0.25% full scale ± 1°C)
|
| • |
Model for 9 Thermocouple Types or 100Ω 2-lead RTD, or 0-20 mVdc/0-20 mAdc Process Signals
|
| • |
Two 5 Amp 120 Vac SSR Outputs
|
| • |
Second Output May Have Control Function or Be One of Five Alarm Types
|
| • |
Security Lockouts
OPTIONS
|
| • |
RS-232 or RS-485 MODBUS Communications
|
| • |
CN9-SW Communications Software is free when bundled with the CSC32 with digital communications
|
|
|
| |
|
|
|
 |
Starting from Nov 30th 2017, CSC32 Series have been discontinued. As a possible substitute, please check out the CS8DPT for details.
The CSC32 series compact benchtop controllers are ideal for laboratory use and applications requiring portable temperature and process control. Pre-wired input and output receptacles in the rear of the case enable quick and easy connections to power, input, power output and digital communications. These benchtop controllers are factory configured and calibrated for a dedicated input type by model number.
The 1/32 DIN CN9500 controller used in this benchtop controller series can be programmed for either On/Off, or PID Autotune Control (with autotune Feature) via the front panel or through the use of a PC and CN9-SW communications software.
CN9-SW software is designed to interface with the CN9300, CN9400, CN9500 and CSC32 Series benchtop controllers with optional communication hardware. Benefits:
• Time saving benefit and convenience of remotely configuring and adjusting units.
• Saving and retrieving settings to and from files.
• Highly flexible logging and “real time” charting capability for providing hard copy QA records for ISO-9000 and other management purposes.
• Software is capable of logging readings from up to 128 instruments which it stores in data files.
• The data can be exported into text files in Comma Separated Variable format.
• In addition, up to 12 controllers can be displayed on a single chart, or individual charts can be set up for each instrument.
• A Virtual full color chart recorder can log process variables such as: °C, °F, Bar, PSI, pH, rH, or user defined engineering units
Not available for export to Canada or Europe
|
|
|
|
|
|
† Price are shown in RMB.
Note: This protocol manual provides the address information necessary to communicate with the CN9300/CN9400/CN9500 and CSC32 Series, with communications options installed, when interacting with custom or other commercially available software.
|
|
|
|
|
|
|
|
|
Part Number Builder |
|
|
|
|
|
|
|
|
Option Descriptions
|
|
(1)
|
Input Type
|
| |
Select
J for Iron-Constantan
K for CHROMEGA™-ALOMEGA™
T for Copper-Constantan
E for CHROMEGA™-Constantan
R for Pt-13%Rh/Pt
S for Pt-10%Rh/Pt
N for OMEGA™-P-OMEGA™-N
RTD for 100 ohm Pt/2-Wire/alpha = .00385
MA for Linear Current
MV for Linear Voltage
|
(2)
|
Communications Options
|
| |
Select
Nothing(leave field blank) for Standard Unit
-C2 for RS-232 Communications
-C4 for RS-485 Communications
|
|
NOTE: All combinations may not be valid, check spec sheet for valid part numbers.
|
|
|
|
|
|
|
|
| |
|
