Benchtop Digital iSeries Controllers with Dual 5 Amp SSR Output - Discontinued |
| CSi8D Series |
|
 |
|
|

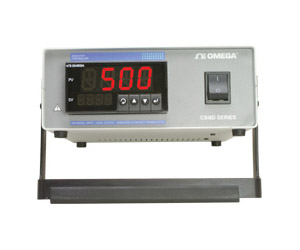

Benchtop Digital iSeries Controllers
 |
| Click for larger image. |
|
|
|
|
| • |
UL and cUL Certified
|
| • |
Optional Embedded Internet Connectivity
|
| • |
Portable, Rugged Metal Benchtop Enclosure with Tilt Handle
|
| • |
Dual, Internal 5 A SSR Control Output
|
| • |
Built Around OMEGA’s Award-Winning iSeries Controllers
|
| • |
5-Year Warranty
|
| • |
High Accuracy
|
| • |
Dual Display Standard, Indicates Both Setpoint and Real-Time Process
|
| • |
Simple to Configure and Use
|
| • |
Universal Inputs: Thermocouple, RTD, Process Voltage/Current, and Strain
|
| • |
Auxiliary Output to Drive Higher-Current SSRs
|
| • |
Totally Programmable Color Displays, Standard
|
| • |
Optional RS232/485 Communications
|
| • |
Operates from 90 to 240 Vac @ 50/60 Hz
|
|
|
| |
|
|
|
 |
Starting from Nov 30th 2017, CSi8D Series have been discontinued. As a possible substitute, please check out the CS8DPT for details.
The OMEGA™ CSi8D is a 1/8 DIN size (96 x 48 mm) Digital Panel Controller in a rugged benchtop metal enclosure featuring the big iSeries color-changing display. The digits are twice the size of typical 1/8 DIN panel meters. The iSeries meters feature the only LED displays that can be programmed to change color between GREEN, AMBER, and RED at any set point or alarm point. Other options include, serial communications, Modbus and Ethernet. The UNIVERSAL TEMPERATURE & PROCESS instrument (model “i”) handles ten common types of Thermocouples, multiple RTD’s, and several Process (DC) Voltage and Current ranges. Units can be re-configured in the field.
Embedded Internet
The OMEGA™ iSeries devices can connect directly to an Ethernet network with a standard RJ-45 connector and can send and receive data in standard TCP/IP packets. (Please specify EI or C4EI option.) The iSeries devices can serve Web pages over an Ethernet LAN or even over the Internet making it possible to monitor and control a process through a web browser (such as Microsoft Internet Explorer) from anywhere in the facility or anywhere in the world.
Remote Control
For example, using an CSi8D Series temperature controller to control a heater, an engineer can monitor the temperature, change set points or alarm points, turn the heater on and off, or make other modifications from anywhere on the local network, or anywhere on the Internet. The web pages are easily customized and secure password protected access to the devices is easily controlled. And it requires absolutely no special software on the engineer’s computer to view the data and “supervise” the controller— nothing other than a Web Browser.
Email and Alarm
In fact, the iSeries controller can even send an email to the engineer or anyone they choose) alerting them to an alarm condition or updating the status. Leveraging the technology of the Internet, the engineer could receive a message from the iSeries controller on an Internet enabled pager or cell phone. Most remarkable is that all this can be accomplished without a computer. The OMEGA™ iSeries device (meter or controller) connects directly to the Ethernet Network — not to the serial port of a computer functioning as a “server” and “master” to “slave” instruments connected through serial communications. The iSeries devices are also available with RS-232, RS-422, RS-485 and MODBUS serial communications. Specify the C24 option.) In fact, the iSeries are the first instruments of this type which include all these serial protocols on one device, selectable from a menu.
Internet Appliances
With the EI option, these 1/8 DIN instruments are stand-alone Web Servers. The Ethernet and Web Server capability is actually embedded in the device. (The smallest 1/32 DIN size device must be connected to an external iServer.) The OMEGA™ iSeries device is assigned an IP address on the network and can also be assigned an easily remembered name such as “Heater1”. In fact, the device could be assigned an authorized Internet IP address from an Internet Service Provider and function as a World Wide Web Server delivering whatever specific information is called for. (For an example, please see www.newportUS.com/iserver) The iSeries devices work well with conventional industrial automation, data acquisition and control programs as well as Microsoft Visual Basic and Excel. OMEGA™ provides free software and demos which makes it fast and easy to get up and running with many applications.
|
|
|
|
|
|
† Price are shown in RMB.
Note: Each CSi8DH Series benchtop controller comes complete with 2 output cords, 1 main power cord (POWER CORD-MOLDED) and complete operators manual. Models with communications option(s) include a cable for connection to your PC.
|
|
|
|
|
| |
|
