Temperature Recorders, Self Powered, Spring Wound, 1 or 24 Hour & 7 Day, CHART-TEMP™ Series
CT-100 Series
1 year warranty

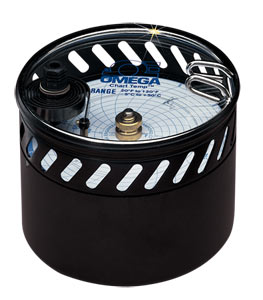

Self Powered Chart Recorder
CT-100 Series:Temperature Recorders, Self Powered, Spring Wound, 1 or 24 Hour & 7 Day, CHART-TEMP™ Series
Click for larger image.

¥ 12,730.00  CT-100AF-7
• From -40 to 260°C (-40 to 500°F)
• Low Temperature Recorders with Ranges Up to 220°F with Either 1 or 7 Day Charts and +2% Accuracy
• Oven Recorders with Ranges up to 500°F and Either 1 or 24 Hour Charts with +3% Accuracy
• Accurate Swiss-Made movement with jewelled bearings (Low Temperature Model)

View related products - Recorders

Click to scroll below to order See Specs PDF View a printer friendly page

OMEGA™ CHART-TEMP™ recorders are dry stylus, spring-wound clockdriven circular chart recorders which never require electric power or ink of any kind. Simply rewind the drive when you replace the chart. These recorders are excellent for recording temperatures inside buildings, refrigerators or ovens. Units with ranges up to 500°F are available.
Order on www.omegaengineering.cn and 5% will be discounted when you checkout.
  To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping
 Part Number   Availability   Price(RMB)   Description    Qty.
 CT-100AF-1 8 Weeks   ¥13,055.00    0 to 100°F, Low Temperature 1 Day Recorder
 CT-100AF-7 2 Weeks   ¥12,730.00    0 to 100°F, Low Temperature 7 Day Recorder
 CT-120AF-7 8 Weeks   ¥13,055.00    20 to 120°F, Low Temperature 7 Day Recorder
 CT-120AF-1 8 Weeks   ¥13,055.00    20 to 120°F, Low Temperature 1 Day Recorder
 CT-160AF-1 8 Weeks   ¥13,055.00    -40 to 160°F, Low Temperature 1 Day Recorder
 CT-160AF-7 8 Weeks   ¥13,445.00    -40 to 160°F, Low Temperature 7 Day Recorder
 CT-220AF-1 8 Weeks   ¥13,055.00    20 to 220°F, Low Temperature 1 Day Recorder
 CT-220AF-7 6 Weeks   ¥13,445.00    20 to 220°F, Low Temperature 7 Day Recorder
 CT-70AF-1 8 Weeks   ¥13,055.00    -30 to 70°F, Low Temperature 1 Day Recorder
 CT-70AF-7 8 Weeks   ¥13,055.00    -30 to 70°F, Low Temperature 7 Day Recorder
 CT-300F-1H 8 Weeks   ¥13,055.00    70 to 300°F, High Temperature 1 Hour Recorder
 CT-300F-24H 8 Weeks   ¥13,055.00    70 to 300°F, High Temperature 24 Hour Recorder
 CT-400F-1H 8 Weeks   ¥13,055.00    70 to 400°F, High Temperature 1 Hour Recorder
 CT-500F-1H 8 Weeks   ¥13,445.00    70 to 500°F, High Temperature 1 Hour Recorder
 CT-500F-24H 2 Weeks   ¥14,160.00    70 to 500°F, High Temperature 24 Hour Recorder
 CT-150C-1H 8 Weeks   ¥13,055.00    20 to 150°C, High Temperature 1 Hour Recorder
 CT-200C-1H 8 Weeks   ¥13,055.00    20 to 200°C, High Temperature 1 Hour Recorder
 CT-260C-1H 8 Weeks   ¥13,055.00    20 to 260°C, High Temperature 1 Hour Recorder
† Price are shown in RMB.
   Part Number Builder
value=''>
(1) (2)
Qty:
Option Descriptions
(1) Replacement Chart Paper for Recording Time
  Select
1 for 1 Day
7 for 7 Day
1H for 1 Hour
24H for 24 Hour
(2) Temperature Range
  Select
-100F for 0 to 100deg F
-120F for 20 to 120deg F
-160F for -40 to 160deg F
-220F for 20 to 220deg F
-70F for -30 to 70deg F
-150C-CHART for 20 to 150deg C
-200C-CHART for 20 to 200deg C
-260C-CHART for 20 to 260deg C
-300F-CHART for 70 to 300deg F
-400F-CHART for 70 to 400deg F
-500F-CHART for 70 to 500deg F
 NOTE: All combinations may not be valid, check spec sheet for valid part numbers.
