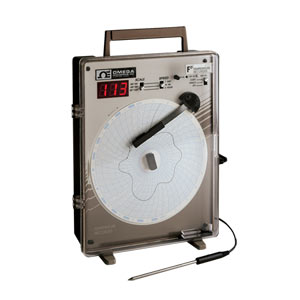

6 inch, (152mm) Circular Temperature Chart Recorders with "J" Thermocouple Input
CT87 Series
1 year warranty CE

Circular Temperature Chart Recorders
CT87 Series:6 inch, (152mm) Circular Temperature Chart Recorders with
Click for larger image.

¥ 4,055.00  CT87LF
• 152 mm (6 in) Circular Chart
• "J" Type Thermocouple Input
• Economical
• Easy-to-Read 6-Inch Circular Chart
• LED Digital Display of Temperature
• Front Panel Controls for Fast, Easy Setup
• Select From 3 Temperature Ranges
• 6-Hour, 24-Hour, or 7-Day Chart Rotation
• Select for Single or Continuous Chart Rotation
• Free Standing or Wall Mounted
• Fold Down Carrying Handle
• Durable Polycarbonate Case
• Plug-In SMP Connection for J Thermocouple
• Adaptor for 120 Vac Operation (220 Vac Optional)
• Battery Back-Up for Power Interruptions

View related products - Laboratory Recorders and Data Loggers

Click to scroll below to order See Specs PDF Manuals View a printer friendly page

The CT87 Series Temperature Recorder is a precision instrument used to monitor and record temperature on a 152 mm (6") circular chart. The CT87 may be carried as as portable instrument or mounted in a fixed location. The CT87 offers a variety of features to meet any temperature recording requirement. A combination of three temperature ranges and three chart speeds provides a high degree of flexibility. In addition, the chart rotation may be set for single or continuous turn operation as required by a particular application. To protect the data being recorded, the CT87 uses an automatic battery backup to maintain operation during a power outage. Note: The unit has limitations on reading at the low end of the scale as a safety feature to keep the pen from hitting the chart hub.

PLEASE NOTE: CT87-J-NP probe included with CT87L Model ONLY
Order on www.omegaengineering.cn and 5% will be discounted when you checkout.
  To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping
 Part Number   Availability   Price(RMB)   Description    Qty.
 CT87LF-220 17 Weeks   ¥4,090.00    Low temperature recorder with 220 voltage and -40 to 30°F, -20 to 50°F and 50 to 120°F ranges
 CT87LF In Stock   ¥4,055.00    Low temperature recorder with 110 voltage and -40 to 30°F, -20 to 50°F and 50 to 120°F ranges
 CT87LC 10 Weeks   ¥4,405.00    Low temperature recorder with 110 voltage and -40 to 0°C, -30 to 10°C and 10 to 50°C ranges
 CT87LC-220 18 Weeks   ¥4,810.00    Low temperature recorder with 220 voltage and -40 to 0°C, -30 to 10°C and 10 to 50°C ranges
 CT87HF 17 Weeks   ¥4,600.00    High temperature recorder with 110 voltage and 0 to 250°F, 0 to 500°F and 500 to 1000°F ranges
 CT87HF-220 10 Weeks   ¥4,905.00    High temperature recorder with 220 voltage and 0 to 250°F, 0 to 500°F and 500 to 1000°F ranges
 CT87HC 10 Weeks   ¥4,880.00    High temperature recorder with 110 voltage and 0 to 120°C, 0 to 250°C and 250 to 500°C ranges
 CT87HC-220 17 Weeks   ¥5,300.00    High temperature recorder with 20 voltage and 0 to 120°C, 0 to 250°C and 250 to 500°C ranges
 Accessories
 CT87C-0-500F/24H 10 Weeks   ¥339.00    60 Charts, Range 0 to 500°F, 24 Hour
 CT87C-0-250F/24H 2 Weeks   ¥339.00    60 Charts, Range 0 to 250°F, 24 Hour
 CT87C--20-50F/7D 2 Weeks   ¥339.00    60 Charts, Range -20 to 50°F, 7 Day
 CT87C-0-250C/24H 2 Weeks   ¥339.00    60 Charts, Range 0 to 250°C, 24 Hour
 CT87C--40-30F/7D 10 Weeks   ¥339.00    60 Charts, Range: -40 to 30°F, 7 Day
 CT87C--40-0C/7D 2 Weeks   ¥321.00    60 Charts, Range -40 to 0°C, 7 Day
 CT87C--30-10C/7D 2 Weeks   ¥332.00    60 Charts, Range -30 to 10°C, 7 Day
 CT87C-50-120F/7D 2 Weeks   ¥339.00    60 Charts, Range 50 to 120°F, 7 Day
 CT87C-10-50C/7D 2 Weeks   ¥339.00    60 Charts, Range 10 to 50°C, 7 Day
 CT87C-LF-MIX 2 Weeks   ¥386.00    60 Assorted Charts, °F
 CT87C-LC-MIX 10 Weeks   ¥374.00    60 Assorted Charts, °C
 CT87C-0-250F/7D 2 Weeks   ¥339.00    60 Charts, Range 0 to 250°F, 7 Day
 CT87C-0-120C/7D 2 Weeks   ¥339.00    60 Charts, Range 0 to 120°C, 7 Day
 CT87C-0-250C/7D 2 Weeks   ¥321.00    60 Charts, Range 0 to 250°C, 7 Day
 CT87C-HF-MIX 10 Weeks   ¥374.00    60 Assorted Charts, High Temp, °F
 CT87C-HC-MIX 2 Weeks   ¥374.00    60 Assorted Charts, High Temp, °C
 CRT-110V-ADAPTOR    Consult sales   110V AC ADAPT.CT82,CT87,CTH89
 CRT-220V    Consult sales   220V POWER ADAPTOR
 CT87-PEN-BLACK 2 Weeks   ¥143.00    Replacement pen (pen shelf life is one year)
 CT87-J-NP 2 Weeks   ¥342.00    Low temp. replacement probe, 4" long 1/8" dia, 304 SS needle probe, 15' leads
 TC-GG-J-24-72-SMP-M-PP 2 Weeks   ¥279.00    High temp. replacement sensor, 6' long 24 gage glass insulated “J” thermocouple
† Price are shown in RMB.

 Note: Each unit includes: 1 package assorted charts, 2 pens, batteries, manual CT87L comes with CT87-J-NP probe. CT87H comes with TC-GG-J-24-72-SMP-M beaded wire thermocouple probe.
  Ordering Example: (1) CT87LF Low temperature recorder with 110 voltage and-40 to 30°F, -20 to 50°F and 50 to 120°F ranges, ¥4,055.00
