Temperature Chart Recorder, Circular Pen Style |
| CT89 Series |
|
 |
|
|

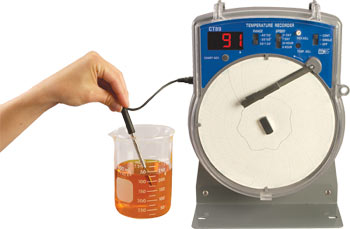

Temperature Chart Recorder, Circular Pen Style
 |
| Click for larger image. |
|
|
¥
4,380.00
CT89F
|
| • |
Advanced Microcontroller Design
|
| • |
Large LED Digital Temperature Display
|
| • |
3 Temperature Ranges and 4 Chart Speeds
|
| • |
Front Panel Selectable Single Turn or Continuous Chart Rotation
|
| • |
Front Panel Controls for Fast and Easy Setup
|
| • |
Standard 120V Operation
|
| • |
Battery Back-Up Assures Normal Operation During Power Interruptions
|
| • |
12V Vehicular or Marine Use Operations
|
| • |
Stainless Steel Remote Reading 102 mm (4") Probe with 4.6 m (15') Cable
|
| • |
Fold-Down Handle
|
| • |
Freestanding or Wall Mounted
|
| • |
Durable Polycarbonate Case, Cover, and Handle
|
View related products - Recorders
|
| |
|
|
|
 |
Applications
- Food Storage
- Environment, Energy Management
- HVAC, Refrigeration Maintenance
- General Laboratory Monitoring
- Computer Room Monitoring
- Ovens, Dryers,Paint Booths
The newly designed CT89
temperature recorder with remote
sensor employs advanced
microcontroller design that enables
this versatile instrument to
accurately measure and record
temperatures in air, gas, liquids,
powders, solids, and semi-solids.
The CT89 is a precision instrument
used to monitor and record
temperature on 6" circular chart
paper. It may be carried as a
portable instrument or mounted in a
fixed location. A combination of
3 temperature ranges and 4 chart
speeds provide a high degree of
flexibility. In addition, the chart
rotation may be set for single or
continuous turn operation. To
protect the data being recorded the
CT89 uses an automatic battery
backup to maintain operation during
a power outage.
Replacement Chart Paper
Scroll down to the "Part Number Builder" section to order replacement chart paper for the CT89 series
Specifications
Temperature Scale: -40 to 30°F, -20 to 50°F, 50 to 120°F, -40 to 0°C, -30 to 10°C, and 10 to 50°C
Chart Speed Selectable: 6 hours, 24 hours, 7 days, 31 days
Chart Speed Accuracy: ±1%
Chart Diameter: 152 mm (6")
Temperature Display: 3 digit LED; 13 mm (0.5") H
Temperature Accuracy: ±1°C (±2°F)
Temperature Sensor: Stainless steel tip submersible with 4.6 m (15') of cable
Recording Pen: Ink type
Power Supply: 120 Vac, 50/60 Hz or 220/240 Vac, 50 Hz
Battery Backup: 8 alkaline "AA" cells (included)
Battery Life: 48 hours
Operating Temperature: 0 to 49°C (32 to 120°F)
Operating Humidity: 0 to 96% max
Dimensions: 235 L x 184 W x 70 mm D (9.25 x 7.25 x 2.75")
Weight: 7 oz (4 lb)
|
|
|
|
|
|
† Price are shown in RMB.
Note: Comes complete with 60 assorted 152mm (6") diameter charts, 102mm (4") probe, 2 black cartridge pens, and operator's manual.
Ordering Example: (1) CT89F temperature chart recorder (110Vac, °F), ¥4,380.00,
|
|
|
|
|
|
|
|
|
Part Number Builder |
|
|
|
|
|
|
|
|
Option Descriptions
|
|
(1)
|
Replacement Chart Paper
|
| |
Select
CT87C- for Replacement Chart Paper for CT89 Series
|
(2)
|
Temperature Range
|
| |
Select
-40-30F/ for -40 to 30F
-40-0C/ for -40 to 0C
-20-50F/ for -20 to 50F
-30-10C/ for -30 to 10C
50-120F/ for 50 to 120F
10-50C/ for 10 to 50C
LF-MIX for 60 Assorted Charts (Farenheit)
LC-MIX for 60 Assorted Charts (Celsius)
|
(3)
|
Chart Time Scale
|
| |
Select
Nothing(leave field blank) for Assortment (if selected in "Temperature Range" above)
6H for 6 Hours
24H for 24 Hours
7D for 7 Days
31D for 31 Days
|
|
NOTE: All combinations may not be valid, check spec sheet for valid part numbers.
|
| |
|
|
|
|
|
|
| |
|
