Circular Chart Recorders, Microprocesser-Based
CT9000 Series
CE

Temperature Circular Chart Recorders

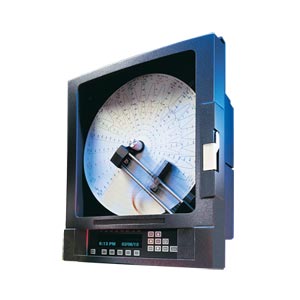

CT9000 Series:Circular Chart Recorders, Microprocesser-Based
Click for larger image.

• 1-, 2-, 3- or 4-Pen Version
• Programmable for 254, 280, 305 mm (10, 11 or 12") Charts
• Accepts Thermocouple, RTD, V, mV, mA or Switch Signals
• 40 Character Display
• Up 4 Alarms per Variable
• 16 Profiles

View related products - Recorders

Click to scroll below to order See Specs PDF Manuals View a printer friendly page

The CT9000 microprocessor-based circular recorder offers one to four trends with one color per channel. The latter allows future trend addition upgrades and improves chart annotation of times, dates, scale values, trend line tags, and user configurable real time actuated chart messages. The instrument can have up to eight inputs. Some inputs do not have to be associated with the trend pens, i.e. display only. Up to four process values can be displayed on the 40-character vacuum fluorescent display at one time (2 lines of 20 characters each). Full English prompts allow easy configuration of the unit. Using proven dotting head print technology, there is no time difference on the chart between trend lines. This feature, along with the straight radial time line (compared to the curved lines on other recorders) allows for more accurate reading of data. The unit uses plain paper charts with pre-printed rings to further enhance readability and provide better long-term storage.
Order on www.omegaengineering.cn and 5% will be discounted when you checkout.
  To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping
 Part Number   Availability   Price(RMB)   Description    Qty.
 CT9133 18 Weeks   ¥61,460.00    3-pen-color recorder with three input
 CT9122-AL4 18 Weeks   ¥40,105.00    2-pen 2-color recorder with 2 inputs and four relay outputs
 CT9144 18 Weeks   ¥63,240.00    4-pen four-color recorder with four inputs
 Accessories
 Pens
 CT9000C-RC-GR 2 Weeks   ¥1,270.00    Pen cartridge-green/red
 CT9000C-RC-GRB 18 Weeks   ¥1,185.00    Pen cartridge-green/red/blue
 CT9000C-RC-GRBB 2 Weeks   ¥1,085.00    Pen cartridge-green/red/blue/black
 Chart Paper
 CT9000C-12-100 2 Weeks   ¥390.00    Paper, 305 mm (12"), 100 div, 100 sheets
 CT9000C-12-120 18 Weeks   ¥945.00    Paper, 305 mm (12"), 120 div, 100 sheets
 CT9000C-11-100 6 Weeks   ¥510.00    Paper, 280 mm (11"), 100 div, 100 sheets
 CT9000-WALL 18 Weeks   ¥505.00    Wall mounting brackets
† Price are shown in RMB.

 Note: Recorder comes complete with a pkg of charts, pen cartridge and operator’s manual.
  Ordering Example: (1) CT9111 1-pen one-color recorder with one input, ¥46,235.00


Keywords:Microprocesser-Based Circular Chart Recorders, 1 to 4 Pen, 10 to 12" Charts, T/C, RTD, V, mV, mA or Switch Input, Up to 4 Alarms per Variable, Models CT9111, CT9122, CT9133, CT9144, CT9151, CT9162, CT9173
