Heavy Duty Cartridge Heaters

C-HD Series

Click for larger image.

•	C-HD Series • Reliable, Premium Quality • CSA Certified • Lengths from 21/2 to 25" • 120 and 240 Vac Models
•	CTRH Series • 0.553 and 0.66" Dia. • 1,670 - 5,130 Watts • 120, 208, 240 and 480 Vac • 50 and 55 W/In2 • 304 Stainless Steel Sheath
View related products - Cartridge Heaters

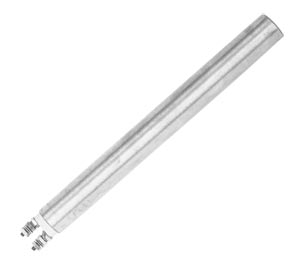

OMEGALUX™ C Series heavy duty cartridge heaters are especially suited for use in applications involving hot plates, molds, dies, platens and container heating.

Type CTRH is an extra high-quality cartridge heater. It is available in 0.553 and 0.663" diameter, sheath lengths up to 41/2 feet, and 50 - 55 W/In2 to heat materials up to 800°F.

C-HD Series

15/16" Diameter

Shth. Lgth.	Watts	W/In2	Model No.	Wt (Lb.)
2 1/2	275	50	C-602/*	0.31
3 1/8	250	34	C-621/*	0.31
4 5/8	450	38	C-622/*	0.44
4 7/8	140	11	C-625/*	0.44
4 7/8	450	36	C-605/*	0.44
7 7/8	500	24	C-607/*	0.5
9 1/2	550	21	C-608/*	0.5
11	625	21	C-609/*	0.75
12 1/2	700	20	C-610/*	0.75
17	950	20	C-613/*	1
18 1/2	1,050	20	C-614/*	1
3	150	22	C-620/*	0.3
3 3/8	190	24	C-604/*	0.31
6 3/8	350	21	C-606/*	0.5
21	1,200	20	C-626/240V	1.2
23	1,325	20	C-627/240V	1.5
25	1,500	20	C-628/240V	1.6

1" Diameter

Shth. Lgth.	Watts	W/In2	Model No.	Wt (Lb.)
3 3/8"	300	35	C-703/*	0.31
4 7/8	375	28	C-704/*	0.5
6 3/8	600	33	C-705/*	0.63
7 7/8	500	22	C-706/*	0.75
9 3/8	700	26	C-707/*	0.75
10 7/8	750	23	C-708/*	1
12 3/8	800	22	C-709/*	1.13
18 3/8	1,250	23	C-713/*	1.75
3 1/8	165	21	C-702/*	0.31
21	1,300	21	C-714/240V	2.1
23	1,425	20	C-715/240V	2.2
25	1,375	18	C-716/240V	2.25

1 19/64" Diameter

Shth. Lgth.	Watts	W/In2	Model No.	Wt (Lb.)
3 1/2	350	33	C-803/*	0.5
4 7/8	600	37	C-806/*	0.75
7 5/8	1,000	37	C-830/*	1.25
7 5/8	1,200	44	C-810/*	1.25
10 1/2	1,000	26	C-812/*	1.75
4 7/8	300	19	C-804/*	0.75
6 1/4	500	23	C-807/*	1
7 5/8	500	18	C-808/*	1.25
9	650	20	C-811/*	1.5
11 7/8	750	17	C-813/*	2
14 5/8	1,250	22	C-815/*	2.25
16	1,300	21	C-816/*	2.75
17 1/2	1,400	20	C-817/240V	3
20 1/4	1,625	20	C-819/240V	3.5
24 1/2	1,780	18	C-822/240V	3.75

*C Series Cartridge heaters are available in 120 or 240 Vac.
To Order, add specified voltage as a suffix.

CTRH Series

Dia. (in.)	Shth. Lgth.	Watts	W/In2	Model No.	Wt (Lb.)
0.553	20	1,670	55	CTRH-520/120V	1.3
0.553	24	2,475	55	CTRH-524/*	1.5
0.553	28	2,440	55	CTRH-528/*	1.8
0.553	32	2,820	55	CTRH-532/*	2
0.553	36	3,200	55	CTRH-536/†	2.3
0.553	40	3,580	55	CTRH-540/†	2.5
0.553	44	3,970	55	CTRH-544/†	2.8
0.553	48	4,350	55	CTRH-548/#	3
0.553	52	4,730	55	CTRH-552/#	3.3
0.66	20	1,810	50	CTRH-620/120V	1.6
0.66	24	2,475	50	CTRH-624/*	1.8
0.66	28	2,640	50	CTRH-628/*	2.1
0.66	32	3,060	50	CTRH-632/*	2.4
0.66	36	3,470	50	CTRH-636/†	2.7
0.66	40	3,880	50	CTRH-640/†	3
0.66	44	4,300	50	CTRH-644/#	3.3
0.66	48	4,610	50	CTRH-648/#	3.6
0.66	52	5,130	50	CTRH-652/#	3.9

*CTRH Cartridge heaters are available in 120, 208 or 240 Vac.
†Heaters available in 208 or 240 Vac.
#Heaters available in 208, 240 or 480 Vac.
To Order, add specified voltage as a suffix.

Order on www.omegaengineering.cn and 5% will be discounted when you checkout.

To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping

Part Number	Availability	Price(RMB)	Description	Qty.

Example part numbers are shown below. For additional configurations see the Part Number Builder below this table.

C-714/240V		Consult sales	Cartridge heater, 1300 W, 240 V, 1' diameter	qty.

C-808/120V		Consult sales	Cartridge heater, 500 W, 120 V, 1 19/64' diameter	qty.
