The DFG31 is being phased out. Product will be available until stock is depleted. Please see the DFG55 SERIES as a possible substitute or contact our Pressure department.

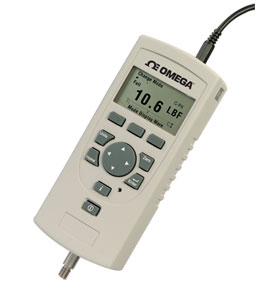

OMEGAs DFG31 Series is an easyto-
use digital force gage designed for
economical applications without
compromising functionality. It’s
available in 7 ranges from 2 to 500 lb
force and features a measurement
accuracy of better than 0.25% full
scale. A large, easy-to-read, high
resolution dot matrix LCD supports a
variety of standard gage functions
including normal and peak readings,
high/low limits, setpoints, pass/fail
results, statistical results, load cell
actuation and direction. Loads are
displayed in ozf, gf, lbf, kgf and
Newtons. The display can be
inverted and displayed results may
be "hidden" from the operator.
RS232, and ±2 Vdc analog outputs
are standard.
SPECIFICATIONS Accuracy: ±0.25% FS Display: High resolution, dot matrix LCD, 8 lines, 40 characters with adjustable contrast Data Sampling Rate: 5000 Hz Peak Capture Rate: 5000 Hz Display Update Rate: 10 Hz Operating Temperature: 4 to 38°C (40 to 100°F) Temperature Effects: <0.05% FS per °C (0.03% per °F) Relative Humidity: 20 to 80% Overload Protection: 150% FS Tare Capacity: 10% FS Power: Rechargeable nickel metal hydride batteries or direct AC power using universal adaptor (batteries and adaptor included) Battery Life: Approximately 30 hours continuous use Dimensions: 173 H x 73 W x 41 mm D (6.8 x 2.9 x 1.6") Weight: 0.7 kg (1.5 lb)
† Price are shown in RMB.
Note: Comes complete with hard carrying case, rechargeable batteries, universal battery eliminator, hook, flat tip, calibration certificate, and operator’s manual.
