High Temperature, Dual-Element Heating Tapes

DHT Series

Click for larger image.

^¥ 855.00 DHT101020LD

•	Dual Element Heating
•	Connects Easily to Your Choice of Temperature Control
•	Wide Range of Sizes
View related products - Flexible Heaters

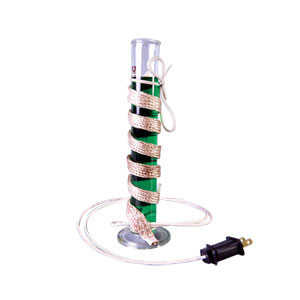

The DHT Series is a highly flexible and durable multi-stranded dual heating element that provides even heat across the tape. It is reinforced with high temperature fiberglass for added strength and durability. High temperatures and rapid thermal response with a maximum exposure temperature of 760ºC (1400ºF).

SPECIFICATIONS
Power Density: 13.1 watts/in² (0.020 watts/mm²) suitable for electrical conductive surfaces
Power Leads [610 mm (24")]:
120 Vac: Standard 2-prong power plug (NEMA 1 to 15)
240 Vac: Bare wire connection
Temperature Controller Required: Includes 230 mm (9") L high temperature tie downs for easy installation

Order on www.omegaengineering.cn and 5% will be discounted when you checkout.

To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping

Part Number	Availability	Price(RMB)	Description	Qty.
DHT051020LD	2 Weeks	¥650.00	13 mm x 0.61 m (0.5' x 2'), 156 Watts, 120 Volts	qty.

DHT051040LD	2 Weeks	¥780.00	13 mm x 1.22 m (0.5' x 4'), 312 Watts, 120 Volts	qty.

DHT051060LD	2 Weeks	¥1,010.00	13 mm x 1.83 m (0.5' x 6'), 468 Watts, 120 Volts	qty.

DHT051080LD	6 Weeks	¥1,220.00	13 mm x 2.44 m (0.5' x 8'), 624 Watts, 120 Volts	qty.

DHT051100LD	11 Weeks	¥1,720.00	13 mm x 3.05 m (0.5' x 10'), 780 Watts, 120 Volts	qty.

DHT052020LD	2 Weeks	¥650.00	13 mm x 0.61 m (0.5' x 2'), 156 Watts, 240 Volts	qty.

DHT052040LD	11 Weeks	¥810.00	13 mm x 1.22 m (0.5' x 4'), 312 Watts, 240 Volts	qty.

DHT052060LD	2 Weeks	¥1,010.00	13 mm x 1.83 m (0.5' x 6'), 468 Watts, 240 Volts	qty.

DHT052080LD	11 Weeks	¥1,200.00	13 mm x 2.44 m (0.5' x 8'), 624 Watts, 240 Volts	qty.

DHT052100LD	11 Weeks	¥1,480.00	13 mm x 3.05 m (0.5' x 10'), 780 Watts, 240 Volts	qty.

DHT052120LD	11 Weeks	¥1,795.00	13 mm x 3.66 m (0.5' x 12'), 943 Watts, 240 Volts	qty.

DHT101020LD	7 Weeks	¥855.00	25.4 mm x 0.61 m (1' x 2'), 312 Watts, 120 Volts	qty.

DHT101040LD	2 Weeks	¥1,060.00	25.4 mm x 1.22 m (1' x 4'), 624 Watts, 120 Volts	qty.

DHT101060LD	7 Weeks	¥1,510.00	25.4 mm x 1.83 m (1' x 6'), 936 Watts, 120 Volts	qty.

DHT101080LD	8 Weeks	¥1,650.00	25.4 mm x 2.44 m (1' x 8'), 1248 Watts, 120 Volts	qty.

DHT102020LD	8 Weeks	¥825.00	25.4 mm x 0.61 m (1' x 2'), 312 Watts, 240 Volts	qty.

DHT102040LD	8 Weeks	¥1,120.00	25.4 mm x 1.22 m (1' x 4'), 624 Watts, 240 Volts	qty.

DHT102060LD	8 Weeks	¥1,480.00	25.4 mm x 1.83 m (1' x 6'), 936 Watts, 240 Volts	qty.

DHT102080LD	11 Weeks	¥1,710.00	25.4 mm x 2.44 m (1' x 8'), 1248 Watts, 240 Volts	qty.

† Price are shown in RMB.

Note: Comes complete with operator’s manual.
