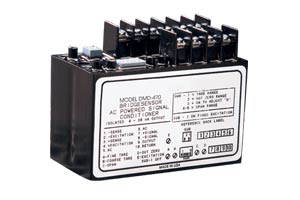

The DMD-470 Series bridge amplifiers are ac powered signal conditioning modules with triple isolated voltage or current outputs for load cells, bridge type sensors and strain gages. Both models have dual zero/tare functions. Zero is used for normal bridge balance and the tare feature allows up to 68% of the input to be offset and still achieve full output span. The DMD-475 has an isolated voltage output; the DMD-476 is similar, but has an isolated 4 to 20 mA output. Both models have input ranges of 5 to 50 mV for a full scale output (0-10 V or 4-20 mA).
SPECIFICATIONS Common Power: 115 Vac ±10 Vac standard or 220 Vac ±10% 50/60 Hz optional Isolation: AC Line: 1100 Vrms, 60 pF Input to Output: 700 Vdc and 60 pF Operating Temperature: -25 to 55°C (-13 to 131°F) Storage Temperature: -25 to 85°C (-13 to 185°F) Weight: 510 g (18 oz) Size: 96 L x 51 W x 73 mm H (3.75 x 2 x 2.87")
Bridge Supply
Voltage Range: 5 to 10 Vdc Current Output: 120 mA max Line and Load Regulation: 0.02% max Output Noise: 1 mVrms max (120 Hz) Temp Coefficient: 60 ppm @ 10V, 100 ppm max
DMD-475 (Voltage Output)
Gain Range: 200 to 2000 Input Range for 10V Output: 5 to 50 mV Linearity: ±0.005% FS Temperature Stability: 0.005%/°C Tare Adjustment: -3 to 25 mV Input Resistance: 1000 MΩ Output Zero Adjust: 0 to 2V Output Range: -3 to 10 Vdc Output Current: 5 mA maximum Dynamic Response: DC to -3 dB = 10 Hz, 2 pole Response Time: 10 to 90% = 35 ms
DMD-476 (4 to 20 mA Transmitter)
Output: 4 to 20 mA, 0 to 20 mA Input Range for 16 mA Span: 5 mV min, 50 mV max Linearity: ±0.01% Zero Adjust: 0 to ±12 mA Temperature Stability: 0.005%/°C Tare Adjustment: -3 to 25 mV equals 80% of 3 mV/V cell Input Impedance: 1000 MΩ Common-Mode Rejection: 100 dB Common-Mode Input Voltage: 5V Output Zero Adjust: 0 or 4 mA Output Range: 4 to 20 mA or 0 to 20 mA Compliance Voltage: -1 to 20V Dynamic Response: DC to -3 dB = 10 Hz, 2 pole Response Time: 10 to 90% = 35 ms
† Price are shown in RMB.
Ordering Example: (1) DMD-475 Isolated voltage output (0 to 10 Vdc) amplifier/signal conditioner module, ¥6,415.00
