Starting from Apr 1st 2018, DP2000/9000 Series have been discontinued. As a possible substitute, please check out the DPPT Panel Meter or CNPT Controller for details.

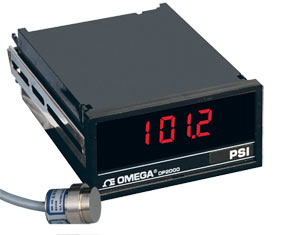

OMEGA ® DP2000 Digital Indicator/Controllers bring you a new world of versatility. A universal 1 /8 DIN case houses your choice from thousands of configurations. Choose any combination of Display Type (LED or LCD), Operating Power, Input Type and Range, Analog Output and Digital or Control Outputs. OMEGA will supply a fully burned-in and tested OMEGA ® DP2000 to suit your needs. Versatility is second only to reliability in the OMEGAROMETER series.
Examples of pricing for popular models is referenced in the "To Order" box. Use the "Part Number Builder" below to get pricing for all available models.
† Price are shown in RMB.
Part Number Builder
Option Descriptions
(1)
Display & Power Options
Select 0 for LED w/ 120 Vac 50/60 Hz power 1 for LCD w/ 120 Vac 50/60 Hz power 2 for LED w/ 240 Vac 50/60 Hz power 3 for LCD w/ 240 Vac 50/60 Hz power 4 for LED w/ 9 to 32 Vdc power 5 for LCD w/ 9 to 32 Vdc power 6 for LED w/ 5 Vdcpower 7 for LCD w/ 5 Vdcpower 8 for LED w/ 24 Vac 50/60 Hz power 9 for LCD w/ 24 Vac 50/60 Hz power A for LED w/ 26 to 56 Vdc isolated power B for LCD w/ 26 to 56 Vdc isolated power
(2)
Analog Outputs
Select 0 for 1 mV/count (supplied on all units) 1 for 0 to 5 vdc 2 for 0 to 10 Vdc 3 for 0 to 1 mA (inetrnally driven) 4 for 4 to 20 mA (internally driven) 5 for 4 to 20 mA (externally driven) 6 for 4 to 20 mA (isolated)
(3)
Control Outputs
Select 0 for None 1 for Dual setpoints with mechanical relays 2 for Proportional 4 to 20 mA 3 for Time proportioning with 2 amp SSR 4 for Parallel BCD (isolated) 5 for single setpoint with 10 amp relay
(4)
Input Type and Range
Select P1 for Process voltage 0.5 Vdc max P2 for Process voltage 0.5 Vdc max P3 for Process voltage 0.5 Vdc max P4 for Process voltage 5 Vdc max P5 for Process voltage 5 Vdc max P6 for Process voltage 10 Vdc max P7 for Process voltage 10 Vdc max P8 for Process current 4 to 20 mA input P9 for Process current 4 to 20 mA input P10 for Process current 10 to 50 mA input P11 for Process current 10 to 50 mA input S1 for Strain gage bridge 500 mv max input S2 for Strain gage bridge 250 mv max input S3 for Strain gage bridge 125 mv max input S4 for Strain gage bridge 62 mv max input S5 for Strain gage bridge 31 mv max input S6 for Strain gage bridge 15 mv max input S7 for Strain gage bridge 8 mv max input
NOTE: All combinations may not be valid, check spec sheet for valid part numbers.
