Easily Scaled in Any Engineering Unit from -1999 to 9999
•
Front Panel Min or Max and Tare Functions
•
External Display Hold and Tare
•
Full-Size 0.56" (14.2 mm) LED Display
•
Exceeds High Standards for Immunity and Emissions
DP24-E Series are discontinued. As a possible substitute, please check out the DPPT Controller or DP20 for details.

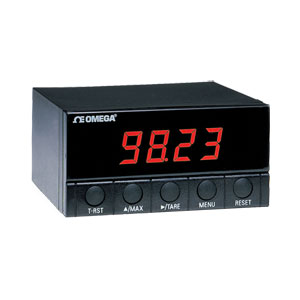

The DP24 Series is an economical,
user-friendly panel meter which can
be scaled without the use of an
electronic calibrator. The DP24-E
accepts voltage (0 to 5, 1 to 5 and
0 to 10 Vdc) or current (4 to 20 mA)
transducers. After scaling, the front
keypad can be locked out to avoid
unauthorized changes, and an
optional bezel without "buttonholes"
can be snapped into place.
Specifications Accuracy: @ 25°C (77°F) ±0.05 Rdg + 1 LSD Input: 0 to 5 Vdc, 1 to 5 Vdc, 0 to 10 Vdc, 4 to 20 mA (bi-directional) Operating Temp: 0 to 50°C (32 to 122°F) Storage Temp: -40 to 85°C (-40 to 185°F) Temp. Coefficient: 50 ppm/°C Display: 4-digit, red or green LED, 14.2 mm H (0.56") Display Range: -1999 to 9999 Relative Humidity: 95% @ 40°C (104°F), non-condensing Connections: Screw terminals External Features: Tare, reset tare, display hold
Power Requirements Voltage: 115 Vac ±10% standard (230 Vac or 10 to 32 Vdc optional) Frequency: 50 or 60 Hz Power Consumption: 3.5 watts max.
Mechanical Specifications Dimensions: 96 W x 48 H x 104 mm D (3.78 x 1.89 x 4.10in.) Panel Cutout: 1/8 DIN, 92 W x 45 mm H (3.62 x 1.77in.) Depth Behind Panel: 100 mm (3.94in.) Weight: 312 g (11 oz)
