Dual-Channel Process Monitor 1/8 DIN Size |
DP3300 |
|
|
|
|
Dual-Channel Process Monitor 1/8 DIN Size
|

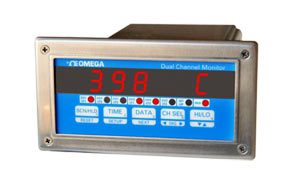

Click for larger image. |
|
|
|
|
Monitor Flow/Temperature, Flow/Pressure or Humidity/Temperature in a Single Unit
|
|
Pulse Input Channel Monitors Count, Rate, RPM or Frequency
|
|
Programmable Scaling on Both Channels
|
|
Auto/manual Scanning of Channels
|
|
Six Different Counter Modes
|
|
Works as Totalizer and Batch Counter
|
|
Programmable Time Base for Rate
|
|
Displays Frequency in 0.01 Hz Resolution
|
|
Three Programmable Alphabets for Engineering Units e.g. PSI. (On Analog CH.)
|
|
Relay Status Indication on Front Panel
|
|
Two Alarm Relays for Each Channel
|
|
Captures Min/Max Readings
|
|
Built-in Alarm Buzzer
|
|
Keeps Track of Process Run Time
|
|
Password Security to Prevent Unauthorized Program Changes
|
View related products - Instrumentation for Pressure and Strain Measurements
|
| |
|
|
|
Highly versatile, the DP3300 series is a dual input meter. The meter can either monitor two analog inputs or an analog input and a pulse input.
On the analog channel, signals from thermocouples, RTD's, or thermistors are linearized and displayed in degrees Centigrade or Fahrenheit. Voltage and current signals are displayed in engineering units. Scaling is easily done from the front keys. A three digit engineering units are programmable for recognition of the process being monitored. (e.g. Lbs, PSI, YDS).
The pulse Input on channel two can be programmed as an up/down counter, rate, rpm or frequency monitor. Scaling allows for converting incoming pulses to engineering units (e.g. pulses from a flow meter can be scaled to display flow, rate of flow etc).In counter mode, the unit offers three presets along with built in delay timers. As a rate indicator, it offers a programmable time base from 0.100 to 9999.999 seconds. In RPM mode, the channel counts incoming pulses and displays the data as revolutions per minute. In frequency mode, an internal crystal reference is used to indicate the frequency of incoming pulses.
Options include 220 Vac and 15 Vdc power supplies, either six relay or open collector outputs.
Examples of pricing for popular models is referenced in the "To Order" box. Use the "Part Number Builder" below to get pricing for all available models. For complete product specifications see the Related Links section at the bottom of this page.
Panel Punches are available for this product here.
|
|
|
|
|
|
† Price are shown in RMB.
|
|
|
|
|
|
|
|
|
Part Number Builder |
|
|
|
|
|
|
Option Descriptions
|
(1)
|
Process Pulse Monitor
|
|
Select DP3300-TC for / K/ T or E thermocouple 4-20 mA input channel one/0-10 Vdc pulse input channel two/220 Vac power and six 1 A relays DP3300-R for R thermocouple/4-20 mA/0-10 Vdc/0 to 5 Vdc Pulse DP3300-S for S thermocouple/4-20 mA/0-10 Vdc/0 to 5 Vdc Pulse DP3300-B for B thremocouple/4-20 mA/0-10 Vdc/0 to 5 Vdc Pulse DP3300-MV for 100 MV/4-20 mA/0-10 Vdc/0 to 5 Vdc Pulse DP3300-TH for Thermistor (400 Series) and 4-20 mA/0-10 Vdc/0 to 5 Vdc Pulse DP3300-RTD for 100 Ohm Platinum RTD and 4-20 mA/0-10 Vdc/0 to 5 Vdc Pulse
(2)
|
Power Output and Communications Options
|
|
Select Nothing(leave field blank) for Standard Unit -1 for 220 Vac power -2 for 15 Vdc power -3 for Six 1A relay outputs -4 for Six open collector outputs
|
NOTE: All combinations may not be valid, check spec sheet for valid part numbers.
|
|
|
|
|
|
|
| |
|
