Digital Panel Meters For Temperature, Process, Voltage and Current |
| DP63000 |
|
 |
|
|
Panel Meters For Temperature, Process, Voltage and Current
 |

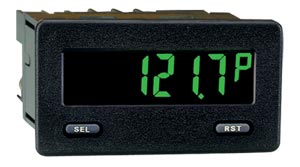

| Click for larger image. |
|
|
|
|
| • |
Thermocouple or RTD Input Models
|
| • |
Programmable Temperature Offset
|
| • |
Selectable °F or °C with 1 or 0.1 Degree Resolution
|
| • |
3 Selectable Process Ranges
|
| • |
0 to 10 Vdc, 0 to 20 mA, 0 to 50 mA
|
| • |
4 Selectable DC Voltage Ranges
|
| • |
0 to 200 mV, 2 V, 20 V, 200 V
|
| • |
4 Selectable DC Current Ranges
|
| • |
200 mA, 2 mA, 20 mA, 200 mA
|
| • |
LCD with Green/Red LED Backlight
|
| • |
12.2 mm (0.48") H Digits
|
| • |
Optional Alarm Output Modules
|
| • |
Optional Serial Communication Modules (RS232 or RS485)
|
| • |
Operates from 9 to 28 Vdc Power Source (85 to 250 Vac Optional Supply)
|
| • |
Display Color Change Capability at Setpoint Output
|
| • |
NEMA 4X/IP65 Sealed Front Bezel
|
| • |
Minimum and Maximum Display Capture
|
View related products - Temperature & Process Meters, Industrial Timers and Counters
|
| |
|
|
|
 |
The DP63000 Series provides the
user the ultimate in flexibility, from
its complete user programming to
the optional setpoint control and
communication capability. The
DP63000-TC accepts a thermocouple
input. The DP63000-RTD accepts
an RTD input and both provide a
temperature display in Celcius or
Farenheit. The meter also features
minimum and maximum display
capture, display offset, °F or °C
indicator, and programmable
user input. The display can be
toggled either manually or
automatically between the selected
displays. Other models include
process, DC voltage or current input
signal and provides a display in the
desired unit of measure.
The DP63000 Series display has
12.2 mm (0.48") H digits. The LCD
model is available in 2 versions,
reflective and red/green backlight.
Note: The reflective display
models have been discontinued due to low sales but
some stock may still be available.
The backlight version is user selectable
for the desired color and
also has variable display intensity.
The capability of the DP63000 can
be easily expanded with the addition
of option modules. Setpoint
capability is field-installable with the
addition of the setpoint output
modules. Serial communications
capability for RS232 or RS485 is
added with a serial option module.
The DP63000 can be powered from
an optional power supply that
attaches directly to the back of a
DP63000. The power supply is
powered from 85 to 250 Vac and
provides up to 400 mA to drive the
unit and sensors.
|
|
|
|
|
|
† Price are shown in RMB.
Note: Comes with complete operator’s manual.
Note: Adding option cards—meters can be fitted with up to 2 optional plug-in card, however, only 1 card from each function type can be installed at a time. The function types include setpoint alarms and communications. The cards can be installed initially or at a later date. Each optional plug-in card is shipped with installation and programming instructions.
* Software is a free; download from www.omega.com.
|
|
|
|
|
| |
|
