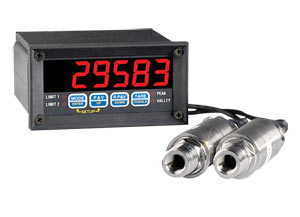

DP7800
|
| • |
Dual Inputs with Programmable Math Functions
|
| • |
Process Voltage or Current Inputs
|
| • |
Programmable Ranges ± 200 mV to ± 200 V and 4-20 mA
|
| • |
Digital Tare (Zero) up to 50% of Span
|
| • |
Easily Programmed Span, 1000 to 30,000 Counts
|
| • |
Two Setpoints with Relay Closures, Standard
|
| • |
NEMA-4 Rated Bezel with Panel Gasket Seal
|
View related products - Instrumentation for Pressure and Strain Measurements
|
| |
|
|
|
 |
SPECIFICATIONS
Accuracy: ±0.01% of reading ±1 count of LSD
Range Programming: Solderless jumpers on rear of unit. Select 200 mV, ±2 V, ±20 V, ±200 V, and 4-20 mA
Conversion Rate: 3/second
Display: 5-digit, seven-segment LED 0.56" (14.3 mm) high
Limit Outputs: Standard dual form "A" relay rated 0.25 A at 28 V
Analog Output (optional): 0-10 Vdc @ 2.5 mV resolution. 0 V and 10 V points are programmable via front panel switches. Maximum drive capability ±2 mA The 4 mA and 20 mA points are programmable via front panel switches. 4-20 mA output, maximum load 600 Ohms
CMV: 1400 V Peak (ac or dc) between analog output ground and ac power line ground
Serial Interface (optional): ASCII RS-232 or RS-485 compatible; format 1 start bit, 8 data bits, 1 stop bit and no parity bits Baud Rates: 9600, 4800, 2400, 1200, 600, 300, 150 and 75 programmable from the front panel
Operating Temperature: -20 to 60°C (-4 to 140°F)
Storage Temperature: -25 to 85°C (-12 to 184°F)
Relative Humidity: 0% to 90%, Non-condensing
Power: 115 Vac (+15% -10%) @ 50 mA (47 to 500 Hz) Optional: 230 Vac (+15% -10%) @ 25 mA (47 to 500 Hz) Optional: 9-18 or 18-36 Vdc
Dimensions: 1.97 H x 3.80 W x 4.0" D (50 x 97 x 102 mm) (Rear Connectors add 0.5" to depth)
Panel Cutout: 1 /8 DIN 45 H x 92 mm W (1.77 H x 3.58" W)
Weight: 454 g (1 lb)
Examples of pricing for popular models is referenced in the "To Order" box. Use the "Part Number Builder" below to get pricing for all available models.
|
|
|
|
|
|
† Price are shown in RMB.
Ordering Example: (1) DP7800-S2 dual input process voltage or current meter with RS232 serial communications, ¥7,925.00
|
|
|
|
|
|
|
|
|
Part Number Builder |
|
|
|
|
|
|
|
|
Option Descriptions
|
|
(1)
|
Options
|
| |
Select
for no options leave blank
-230VAC for 230 Vac power
-DC9/18 for 9 to 18 Vdc power
-DC18/36 for 18 to 36 Vac power
-S2 for ASCII RS232 serial interface
-S4 for ASCII RS485 serial interface
-AMA for 4 to 20 mA analog output
-A10 for 0 to 10 Vdc analog output
|
|
NOTE: All combinations may not be valid, check spec sheet for valid part numbers.
|
|
|
|
|
|
|
| |
|
