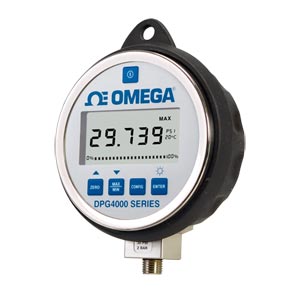

Discontinued - High Accuracy Digital Pressure Gauge, with Data Logging Capability |
| DPG4000 |
|
 |
|
|
|
|
|
¥
11,370.00
DPG4000-30
|
| • |
High Precision Digital Pressure Gauge: ±0.05% FS Accuracy
|
| • |
RS232 Digital Communications Standard
|
| • |
Data Logging for up to 8500 Data Pointswith Optional Software
|
| • |
Calibration Certificate Included
|
| • |
Temperature Compensated: 0 to 50ºC
|
| • |
Displays in 18 Standard or Custom Engineering Units
|
| • |
Displays Ambient Temperature at the Touch of a Button in ºC or ºF
|
| • |
Large, Backlit, 5-Digit Display with 16.5 mm (0.65") High Digits and 20-Segment Bar Graph
|
| • |
Rugged Stainless Steel Case Meets NEMA 4 (IP65) Rating
|
| • |
Min/Max Recall
|
| • |
Adjustable Tare Zeros Large System Offsets
|
| • |
Protective Rubber Boot Included on Battery Models
|
View related products - Pressure Gauges
|
| |
|
|
|
 |
Replaced by DPG280.
Please check out our newest high accyuracy Digital Pressure Gauge, the DPG210, many ranges are in stock, available for immediate delivery, and are priced competitively.
The DPG4000 takes the concept of
a test gauge to a new level. It
combines the accuracy of digital
technology with the simplicity of
an analog gauge, delivering
performance, ease of use, and a
feature set unmatched in the
pressure measurement world.
Setup of the DPG4000 is fast and straightforward, involving a menu driven
display with minimal text and
intuitive functions. The gauge is
simple enough to be used anywhere
in the world, without the need for
multilingual displays.
It also incorporates a built in data
logging function which when combined
with the DPG4000-SW software allows
it to function as a high performance
pressure data logger. The unit can
store up to 8500 data points which can
then be downloaded and stored in a
variety of formats including ASCII text,
comma delimited text, and Micorsoft
Excel Spreadsheet using the software.
The software can also be used to configure
a wide range of settings including logging
interval, number of data points per run,
capture mode and type of data.
SPECIFICATIONS (GAUGE)
(0 to 50ºC Unless Otherwise Noted)
Accuracy: ±0.05% FS positive pressure, ±0.25% FS vacuum/500 psi and below
Temperature Compensation: 0 to 50ºC (32 to 122ºF) to rated accuracy
Standard Engineering Units: psi, bar, kg/cm2, inH2O (4ºC, 20ºC or 60ºF), ftH2O (4ºC, 20ºC or 60ºF), cmH2O (4ºC and 20ºC), mH2O (4ºC and 20ºC), kPa, mbar, inHg, mmHg, torr
Media Compatibility: Liquids and gases compatible with 316 SS
Operating Temperature: -10 to 55ºC (14 to 131ºF)
Storage Temperature: -20 to 70ºC (-4 to 158ºF)
Dimensions: 111.1 H x 127 W x 38.1 mm D (4.375 x 5 x 1.50")
Input Port: 1/4 MNPT lower mount
Display: 5 digits, 16.5 mm (0.65") high
Window: Rugged Polycarbonate
Bar Graph: 0 to 100% in 20 segments
Power: 3 "AA" alkaline batteries (included); 24 Vdc power optional
Battery Life: 1500 hr without backlight (2000 hr at slow sample rate)
Low-Battery Indicator: Icon displayed near the end of battery life. Remaining battery life can also be displayed on bar graph.
(SOFTWARE AND DATA LOGGING)
Data Points: 8500 max (pressure only)
Reading intervals: 1, 2, 5, 10, 30 sec, 1, 2, 5, 10, 30 min, 1 hr
Data Format: Text, CSV or Excel format files
Logging Modes: Continuous, Trip High, Trip Low, Trip Range
Requirements: Microsoft Windows 2000 (SP4), XP (SP2) or
Vista. Exporting data to excel files requires Microsoft Excel
Version 2002 or later
|
|
|
|
|
|
† Price are shown in RMB.
Note: Each DPG4000 gauge comes with batteries (when applicable), protective rubber boot (with battery powered models), calibration certificate and operators manual.
Lower fitting is standard. To order with rear fitting add suffix "-RM" to part number and $75 to the price.
(OPTIONS SHOWN IN THIS "NOTE" ABOVE ARE PRICED IN US$)
Ordering Example: (1) DPG4000-30 Battery powered digital pressure gauge with 0 to 30 psig range, ¥11,370.00
|
|
|
|
|
|
|
|
|
Part Number Builder |
|
|
|
|
|
|
|
|
Option Descriptions
|
|
(1)
|
Range
|
| |
Select
15C for -15 to +15 psig
30C for -15 to 30 psig
15 for 15 psig
30 for 30 psig
100 for 100 psig
300 for 300 psig
500 for 500psig
1K for 1000psig
2K for 2000 psig
3K for 3000 psig
5K for 5000 psig
10K for 10000 psig
15A for 15 psia
30A for 30 psia
100A for 100 psia
300A for 300 psia
|
(2)
|
Power
|
| |
Select
for
-DC for 24 Vdc Powered Gage
-RM for Rear Fitting
-RM-DC for Rear Fitting with 24 Vdc Power
|
|
NOTE: All combinations may not be valid, check spec sheet for valid part numbers.
|
|
|
|
|
|
|
|
| |
|
