High Accuracy Digital Test Gauges, 0.25 to 0.05% Terminal Point Total Error Band Accuracy
DPG7000 Series

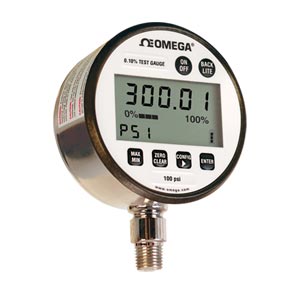

Precision Digital Test Gauge with Stainless Steel Cover
DPG7000 Series:High Accuracy Digital Test Gauges, 0.25 to 0.05% Terminal Point Total Error Band Accuracy
Click for larger image.

¥ 14,205.00  DPG7000-100
• 0.05, 0.10 and 0.25% FS Accuracy Models
• 12 User-Selectable Units of Measure
• Large 17 mm (0.66") Display with % of Range Bar Graph
• All Stainless Steel Wetted Parts and Case
• NEMA 4 (IP65) Weatherproof Case
• Programmable for 7 Languages

View related products - Pressure Gauges

Click to scroll below to order See Specs PDF Manuals View a printer friendly page

The DPG7000 Series comprises high-accuracy digital test gauges designed for the most demanding applications. These gauges feature a 0.05% total error band, which includes linearity, hysteresis, repeatability, and temperature effects from -18 to 66°C (0 to 150°F). The all stainless steel wetted parts and case carry a NEMA 4 (IP65) rating.

A variety of user-configurable options—including languages, update rate, dampening, backlight, and auto-off—greatly increase the DPG7000’s versatility. All units include a stainless steel protective cover and carrying case. A 10-point individual calibration chart is standard with 0.05% accuracy units.

SPECIFICATIONS
Accuracy:
   DPG7000: 0.05% FS total error band accuracy
   DPG7010: 0.10% FS total error band accuracy
   DPG7025: 0.25% FS total error band accuracy
Proof Pressure:
    <3,000 psi: 200% FS
    3000 to 5000 psi: 150% FS
    7000 psi: 120% FS
Burst Pressure:
    <3,000 psi: 800% FS
    3000 to 5000 psi: 300% FS
    7000 psi: 150% FS
Terminal Point: Total error band (TEB) including hysteresis, linearity, repeatability and temperature from -18 to 66°C (0 to 150°F)
Calibrate: Zero and Span (password protected)
Case
   Size: 76 mm (3")
   Material: 300 Series Stainless Steel
   Finish: Electropolished
   Rating: Weatherproof, IP65, NEMA 4
Wetted Parts: 316 Stainless Steel
Socket Size: 1?4 NPT Male
Socket Location: Lower (6 o'clock)
Mounting: Stem
Operating Temperature: -18 to 63°C (0 to 150°F)
Storage Temperature: -40 to 82°C (-40 to 180°F)
Temperature Correction: -18 to 63°C (0 to 150°F); included in accuracy specification
Power: 3 “AAA” alkaline batteries, included
Battery Life: >1000 hr
Auto Off: Five Options: Never, 2 min., 5 min., 15 min., 30 min.
Agency Approvals: CE EN 50082-1 (1997), FM, CSA
Calibration Chart: 10 point individual calibration chart, standard for DPG7000; optional for DPG7010 and DPG7025 models
Standard Features: 300 Series SS Protective Cover, Protective Carrying Pouch
Optional Features: Pressure port type and location, panel mounting; consult engineering for details

DISPLAY
Type: LCD, with bar graph; backlight standard
Display Digits: 5, 99,999 counts
Character Height: 16.7 mm (0.66")
Engineering Units: psi, inHg, inH2O, ftSW, Bar, mBar, kPa, mPa, mmHg, cmH2O, mmH2O, kg/cm²
Update Rate: Four Options; 10x/sec, 5x/sec, 2x/sec, 1x/sec
Dampening: Five Options; None, average 2, 4, 6, 8 readings
Language: Seven Languages; English, Spanish, French, Italian, German, Portuguese, Dutch
Backlight: Five Options; on/off, 10 sec., 30 sec., 1 min., 5 min.
Zero Disable: Allows for disabling of Zero button
Contrast: Seven available options
Disable: Allows for “lock-out” of CONFIG options

KEYPAD FUNCTIONS
On/Off: Manually turns unit on and off
Backlight: Manually turns backlight on and off
Min/Max: Stores min. and max. values when displayed
Zero/Clear: Zeros display or clears min. and max. values when displayed
Enter: Selects items in configuration menu
Config: Configuration mode; allows scrolling through configuration menus to select available options
Order on www.omegaengineering.cn and 5% will be discounted when you checkout.
  To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping
 Part Number   Availability   Price(RMB)   Description    Qty.
 0.05% Accuracy Models with Calibration Certificate
 DPG7000-VAC 16 Weeks   ¥14,205.00    Digital Vacuum Gauge, 0 to -14.7 psi range
 DPG7000-VAC/15 2 Weeks   ¥14,130.00    Digital Pressure Gauge, -14.7 to 15 psi range
 DPG7000-VAC/30 2 Weeks   ¥14,205.00    Digital Pressure Gauge, -14.7 to 30 psi range
 DPG7000-10 16 Weeks   ¥14,205.00    Digital Pressure Gauge, 0-10 psi range
 DPG7000-15 16 Weeks   ¥14,130.00    Digital Pressure Gauge, 0-15 psi range
 DPG7000-30 9 Weeks   ¥14,130.00    Digital Pressure Gauge, 0-30 psi range
 DPG7000-60 16 Weeks   ¥14,205.00    Digital Pressure Gauge, 0-60 psi range
 DPG7000-100 16 Weeks   ¥14,205.00    Digital Pressure Gauge, 0-100 psi range
 DPG7000-200 2 Weeks   ¥14,130.00    Digital Pressure Gauge, 0-200 psi range
 DPG7000-300 2 Weeks   ¥14,205.00    Digital Pressure Gauge, 0-300 psi range
 DPG7000-500 16 Weeks   ¥14,205.00    Digital Pressure Gauge, 0-500 psi range
 DPG7000-1K 2 Weeks   ¥14,205.00    Digital Pressure Gauge, 0-1000 psi range
 DPG7000-2K 16 Weeks   ¥14,205.00    Digital Pressure Gauge, 0-2000 psi range
 DPG7000-3K 28 Weeks   ¥14,205.00    Digital Pressure Gauge, 0-3000 psi range
 DPG7000-5K 28 Weeks   ¥14,205.00    Digital Pressure Gauge, 0-5000 psi range
 DPG7000-7K 2 Weeks   ¥14,205.00    Digital Pressure Gauge, 0-7000 psi range
 0.10% Accuracy Models
 DPG7010-VAC 9 Weeks   ¥12,915.00    Digital Vacuum Gauge, 0 to -14.7 psi range
 DPG7010-VAC/15 9 Weeks   ¥12,915.00    Digital Pressure Gauge, -14.7 to 15 psi range
 DPG7010-VAC/30 9 Weeks   ¥12,915.00    Digital Pressure Gauge, -14.7 to 30 psi range
 DPG7010-10 9 Weeks   ¥12,915.00    Digital Pressure Gauge, 0-10 psi range
 DPG7010-15 9 Weeks   ¥12,915.00    Digital Pressure Gauge, 0-15 psi range
 DPG7010-30 9 Weeks   ¥12,915.00    Digital Pressure Gauge, 0-30 psi range
 DPG7010-60 16 Weeks   ¥12,985.00    Digital Pressure Gauge, 0-60 psi range
 DPG7010-100 2 Weeks   ¥12,915.00    Digital Pressure Gauge, 0-100 psi range
 DPG7010-200 9 Weeks   ¥12,915.00    Digital Pressure Gauge, 0-200 psi range
 DPG7010-300 9 Weeks   ¥12,915.00    Digital Pressure Gauge, 0-300 psi range
 DPG7010-500 16 Weeks   ¥12,915.00    Digital Pressure Gauge, 0-500 psi range
 DPG7010-1K 9 Weeks   ¥12,915.00    Digital Pressure Gauge, 0-1,000 psi range
 DPG7010-2K 9 Weeks   ¥12,915.00    Digital Pressure Gauge, 0-2,000 psi range
 DPG7010-3K 9 Weeks   ¥12,915.00    Digital Pressure Gauge, 0-3,000 psi range
 DPG7010-5K 9 Weeks   ¥12,985.00    Digital Pressure Gauge, 0-5,000 psi range
 DPG7010-7K 9 Weeks   ¥12,915.00    Digital Pressure Gauge, 0-7,000 psi range
 0.25% Accuracy Models
 DPG7025-VAC 9 Weeks   ¥11,100.00    Digital Vacuum Gauge, 0 to -14.7 psi range
 DPG7025-VAC/15 11 Weeks   ¥11,100.00    Digital Pressure Gauge, -14.7 to 15 psi range
 DPG7025-VAC/30 9 Weeks   ¥11,100.00    Digital Pressure Gauge, -14.7 to 30 psi range
 DPG7025-10 2 Weeks   ¥11,100.00    Digital Pressure Gauge, 0-10 psi range
 DPG7025-15 9 Weeks   ¥11,100.00    Digital Pressure Gauge, 0-15 psi range
 DPG7025-30 9 Weeks   ¥11,100.00    Digital Pressure Gauge, 0-30 psi range
 DPG7025-60 9 Weeks   ¥11,100.00    Digital Pressure Gauge, 0-60 psi range
 DPG7025-100 9 Weeks   ¥11,100.00    Digital Pressure Gauge, 0-100 psi range
 DPG7025-200 9 Weeks   ¥11,100.00    Digital Pressure Gauge, 0-200 psi range
 DPG7025-300 9 Weeks   ¥11,100.00    Digital Pressure Gauge, 0-300 psi range
 DPG7025-500 9 Weeks   ¥11,100.00    Digital Pressure Gauge, 0-500 psi range
 DPG7025-1K 9 Weeks   ¥11,100.00    Digital Pressure Gauge, 0-1,000 psi range
 DPG7025-2K 9 Weeks   ¥11,100.00    Digital Pressure Gauge, 0-2,000 psi range
 DPG7025-3K 9 Weeks   ¥11,100.00    Digital Pressure Gauge, 0-3,000 psi range
 DPG7025-5K 9 Weeks   ¥11,100.00    Digital Pressure Gauge, 0-5,000 psi range
 DPG7025-7K 9 Weeks   ¥11,100.00    Digital Pressure Gauge, 0-7,000 psi range
 Cooling Elements
 PG-CTN4-G03 5 Weeks   ¥1,500.00    ¼ NPT Male x ¼ NPT Female for 300°C processes
 PG-CTN4-G02 5 Weeks   ¥830.00    ¼ NPT Male x ¼ NPT Female for 150°C processes
 Accessories
 PA-36 In Stock   ¥160.00    ¼ NPT female to ½ NPT male Adapter
† Price are shown in RMB.

 Note: All DPG7000 series gauges include 300 series SS protective cover, protective carrying pouch, batteries and operator’s manual. DPG7000 0.05% units also include NIST-Traceable calibration certificate.

To order DPG7010 or DPG7025 units with optional NIST-traceable calibration certificate, add suffix "-NIST" to model number, and add $175 to price.
  Ordering Example: (1) DPG7000-100 0.05% accuracy digital pressure gauge with protective cover, calibration certificate and protective carrying pouch, ¥14,205.00
