General Purpose Digital Pressure Gauge
DPG8001 Series
CE

Digital Pressure Gauge

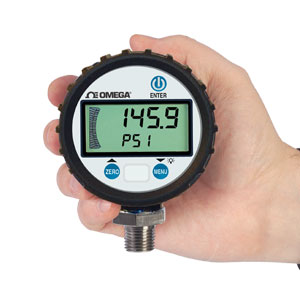

DPG8001 Series:General Purpose Digital Pressure Gauge
Click for larger image.

¥ 5,025.00  DPG8001-200
• 0.25% Full Scale Terminal Point Accuracy
• 5 Digit LCD Display with Large 12.2 mm (0.48") Digits
• 20 Segment Bar Graph Display
• User-Selectable Engineering Units
• MIN/MAX Readings
• Tare Function Standard
• Environmentally Protected to NEMA 4X (IP65)
• All Stainless Steel Wetted Parts
• Rubber Boot Standard

View related products - Pressure Gauges

Click to scroll below to order See Specs PDF Manuals View a printer friendly page

The DPG8001 Series of digital pressure gauges offer 0.25% full scale terminal point accuracy in a rugged easy-to-use unit, and the price is comparable to mechanical test gauges. All Stainless Steel wetted parts make them suitable for a wide variety of industrial liquids and gaseous media. This series features user-selectable engineering units, allowing one gauge to be used for a variety of pressure scales. The DPG8001 comes standard with many features that are either not available or extra cost options on many competitive digital gauges such as a tare, 20 segment bar graph MIN/MAX Memory, 9 selectable engineering units and backlighting for easy reading.

SPECIFICATIONS
Accuracy: 0.25% FS terminal point
Ranges: Vacuum through 25,000 psi gauge, vacuum and compound gauge
Battery: Two “AA” alkaline included
Battery Life: 2000 hr. minimum
Battery Indicator: 4 levels
Storage Temperature: -20 to 80°C (-4 to 176°F)
Operating Temperature: -20 to 60°C (-4 to 140°F)
Temperature Effects: 0.04%/°F (-20 to 180°F) zero and span
Update Rate: 1 Hz
Cycle Life: 100 million
Vibration: MIL-STD-202G Method 201A
Shock: MIL-STD-202G Method 213 B
Display: 5-digit numeric top line, 5 character alphanumeric lower line
Bar Graph: 20 segment vertical bar graph
Digit Height: 12.2 mm (0.48") upper line; 6.1 mm (0.24") lower line
Display Indicators: 4-segment battery life indicator plus dedicated icons for gauge timer, backlight timer, tare, min and max
View Angle: 12 o’clock
Backlight: Standard, blue
Enclosure Material (Case and Back): Polycarbonate/ABS
Window: Polycarbonate
Enclosure Rating: NEMA 4X (IP65)
Protective Boot: Standard
Serial Number: Yes
Proof Pressure
    Vac to <300 psi: 200% range
    300 to <5000 psi: 150% range
    5000 to 25,000 psi: 120% range
Burst Pressure
    Vac to <300 psi: 800% range
    300 to <5000 psi: 500% range
    5000 to 25,000 psi: 300% range
Keypad Functions
3 Key with Multi Press Functionality
    On/Off: Power symbol and enter
    Zero: Zero, tare, and scroll up arrow
    Menu: access, backlight, down arrow
Engineering Units: psi, bar, inHg, cmHg, mmHg, kPa, mPa, kg/cm2, ftH2O, custom units available
Agency Approvals: CE (heavy industrial), ASME B40.7, RoHs, UL 61010/cUL pending
Connection: 1/4 NPT male, lower position up to 10,000 psi
    >10,000 psi: 9/16-18 UNF Female AMINCO
Dimensions: 27 mm Hex (11/16")
Wetted Parts: 17-4 SS & 316L SS laser welded
Order on www.omegaengineering.cn and 5% will be discounted when you checkout.
  To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping
 Part Number   Availability   Price(RMB)   Description    Qty.
 Vacuum and Compound Ranges
 DPG8001-VAC 2 Weeks   ¥5,310.00    Range Resolution; 30.00 inHg to 0
 DPG8001-30V15 21 Weeks   ¥5,310.00    Range Resolution; 30.00 inHg to 15.00 psi
 DPG8001-30V30 2 Weeks   ¥5,025.00    Range Resolution; 30.00 inHg to 30.00 psi
 DPG8001-30V60 21 Weeks   ¥5,310.00    30.00 inHg to 60.00 psi
 DPG8001-30V100 21 Weeks   ¥5,310.00    30.00 inHg to 100.0 psi
 DPG8001-30V150 2 Weeks   ¥5,310.00    30.00 inHg to 150.0 psi
 DPG8001-30V300 2 Weeks   ¥5,310.00    30.00 inHg to 300.0 psi
 Gauge Pressure Ranges
 DPG8001-15 21 Weeks   ¥5,310.00    Range Resolution; 0 to 15.00 psi
 DPG8001-30 21 Weeks   ¥5,025.00    Range Resolution; 0 to 30.00 psi
 DPG8001-60 21 Weeks   ¥5,280.00    Range Resolution; 0 to 60.00 psi
 DPG8001-100 In Stock   ¥5,025.00    Range Resolution; 0 to 100.0 psi
 DPG8001-200 21 Weeks   ¥5,025.00    Range Resolution; 0 to 200.0 psi
 DPG8001-300 2 Weeks   ¥5,025.00    Range Resolution; 0 to 300.0 psi
 DPG8001-500 In Stock   ¥5,310.00    Range Resolution; 0 to 500.0 psi
 DPG8001-1K In Stock   ¥5,025.00    Range Resolution; 0 to 1000 psi
 DPG8001-1.5K 21 Weeks   ¥5,310.00    Range Resolution; 0 to 1500 psi
 DPG8001-2K 21 Weeks   ¥5,310.00    Range Resolution; 0 to 2000 psi
 DPG8001-3K 2 Weeks   ¥5,025.00    Range Resolution; 0 to 3000 psi
 DPG8001-5K 2 Weeks   ¥5,025.00    Range Resolution; 0 to 5000 psi
 DPG8001-10K 3 Weeks   ¥4,920.00    Range Resolution; 0 to 10,000 psi
 DPG8001-15K 21 Weeks   ¥5,310.00    Range Resolution; 0 to 15,000 psi
 DPG8001-20K 2 Weeks   ¥5,570.00    Range Resolution; 0 to 20,000 psi
 DPG8001-25K 2 Weeks   ¥5,740.00    Range Resolution; 0 to 25,000 psi
 Cooling Elements
 PG-CTN4-G03 5 Weeks   ¥1,500.00    ¼ NPT Male x ¼ NPT Female for 300°C processes
 PG-CTN4-G02 5 Weeks   ¥830.00    ¼ NPT Male x ¼ NPT Female for 150°C processes
 Accessories
 PA-36 In Stock   ¥160.00    ¼ NPT female to ½ NPT male Adapter
† Price are shown in RMB.

 Note: Comes complete with protective rubber boot, 2 “AA” batteries, and operator’s manual.

NIST TRACEABLE CALIBRATION add suffix "-NIST" to model number, $160

  Ordering Example: (1) DPG8001-100 Digital pressure gauge with range 0 to 100.0 psi, ¥5,025.00
