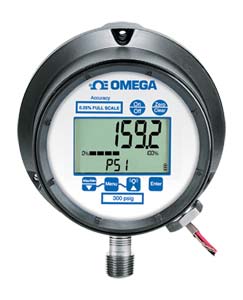

DPG9145-300
|
| • |
A Multi-Functional Digital Gauge with Optional 4 to 20 mA Output and (1) or (2) SPDT Switches
|
| • |
±0.25% of Span Terminal Point Accuracy
|
| • |
IP65 (NEMA 4) Weatherproof Case
|
| • |
3" Stainless Steel Case or 4 1/2" Fiberglass Reinforced Thermoplastic Case
|
| • |
Extra Large Display with Bar Graph
(0.6" on 3" Case, 0.88" on 4 1/2" Case)
|
| • |
Min/Max Readings
|
| • |
Easy-to-Use Menu Options (All Password Protected)
|
| • |
10 User-Selectable Engineering Units
|
| • |
Backlite Display Standard
|
View related products - Pressure Gauges
|
| |
|
|
|
 |
SPECIFICATIONS
Accuracy: ±0.25% of span, terminal point (0.13% BFSL)
Case Size: 76 mm (3"), 114 mm (4.5")
Case Material: 3" stainless steel, 4.5" fiberglass-reinforced thermoplastic
Case Encl. Rating: Weatherproof, NEMA 4 (IP65)
Wetted Materials: 17-4 SS (sensor), 316 SS (socket)
Socket Size: ¼ NPT Standard; Custom: ½ NPT, JIS, DIN, SAE, (½ NPT only with 4.5" case, others on application). Consult Engineering to order custom socket.
Socket Connection: Lower (standard); 3, 9 and 12 o'clock optional
Operating Temp: 10 to 60°C (14 to 140°F)
Temp Error: (Zero and span) 0.08%/°C (0.04%/°F) (<0.04%°C typical)
Storage Temp: -20 to 70°C (-4 to 158°F)
Display: 5-digit LCD
Character Height:
3" Case: 15 mm (0.60")
4.5" Case: 22 mm (0.88")
Backlight: Standard
Bar Graph: Standard
Battery Life: 3" >1000 hr, 4.5" > 3600 hr
Power Options:
DC Power: 12 to 36 Vdc, 2 VA max
Loop Power: 12 to 36 Vdc
Electrical Rating on Optional Switch (Option S1 or S2 DPG9200 series only): (1) or (2) SPDT switches; 30 Vdc 1 A max, 125 Vac 5 A (switches adjustable to 100% of range)
Backlit Display: Models 9x30 and 9x45
Battery Back-Up: Models 9130, 9230, 9145, 9245
KEYPAD FUNCTIONS:
On/Off: Manually turns unit on and off (auto-off options in menu)
Zero/Clear: Zeros display or clears min and max values when displayed
Min/Max (Down) Arrow Key: Stores min and max values, arrow key allows for scrolling menu items
Menu Key: Provides access to menu options
Backlit (Up) Arrow Key: Manually turns backlite on and off (auto-off options in menu); arrow key allows for 5 menu options. (Up) arrow key allows for scrolling menu options.
Enter: Selects items in the menu
MENU MODE:
Engineering Units: 10 units of measurement are available: psi, inH2O (with three temp options: 20°C, 60°F, 4°C), ftH2O, mPa, mbar, kPa, kg/cm2, bar, inHg and mmHg
Configuration Mode: (Config) Allows for changes to default settings of gauge, including zero disable feature
Bar Graph: (Graph) Allows for adjustment of bar graph and 4 to 20 mA (optional feature)
Auto Off (5 Options): (Off) allows for changes to auto-off of gauge: never, 2 min, 5 min, 15 min, 30 min
Update Rate (4 Options): (Update) 100 ms, 200 ms, 500 ms, 1 s
Dampening (6 Options): (Damp) None, average, 2, 4, 6, 8 times per 100 ms
Backlite (5 Options): Never, 10 s, 30 s, 1 min, 5 min
Field Recalibration: Allows for recalibration of zero, midscale and span (password protected)
Examples of pricing for popular models with backlit display are referenced
in the "To Order" box.
|
|
|
|
|
|
† Price are shown in RMB.
Ordering Example: (1) DPG9045-VAC/15 is a battery powered unit with backlit display, a compound range of vacuum to 15 psi gage and a 4½'' diameter case,, ¥7,220.00
|
|
|
|
|
|
|
|
|
Part Number Builder |
|
|
|
|
|
|
|
|
Option Descriptions
|
|
(1)
|
POWER
|
| |
Select
0 for Battery power
1 for Loop powered
2 for DC powered
|
(2)
|
DIAL SIZE
|
| |
Select
30 for 3 inch dial with backlight
31 for 3 inch dial
45 for 4-1/2 inch dial with backlight
46 for 4-1/2 inch dial
|
(3)
|
RANGE (psig)
|
| |
Select
VAC for 0 to -14.7
VAC/15 for -14.7 to 15
VAC/30 for -14.7 to 30
15 for 0 to 15
30 for 0 to 30
60 for 0 to 60
100 for 0 to 100
200 for 0 to 200
300 for 0 to 300
600 for 0 to 600
1K for 0 to 1000
2K for 0 to 2000
3K for 0 to 3000
5K for 0 to 5000
10K for 0 to 10000
|
|
NOTE: All combinations may not be valid, check spec sheet for valid part numbers.
|
| |
|
|
|
|
|
|
| |
|
