DPi32
|
| • |
Universal Inputs
|
| • |
User-Friendly, Simple to Configure
|
| • |
High Quality
|
| • |
Powerful Features
|
| • |
Free Software
|
| • |
Totally Programmable Color Displays
|
| • |
Accuracy at 25°C: 0.5°C (±0.9°F) temp nominal, 0.03% Rdg ±0.03% range process and strain
|
| • |
Both RS232 and RS485 MODBUS®, Selectable from Menu Available
|
| • |
Built-In Excitation
|
| • |
Embedded Internet Connectivity Optional
|
| • |
RS232 and RS485 Serial Communications Optional
|
| • |
Temperature Stability ±0.04°C/°C RTD and ±0.05°C/°C Thermocouple @ 25°C (77°F)
|
| • |
AC or DC Powered Units
|
| • |
Ratiometric Mode for Strain Gages
|
| • |
Programmable Digital Filter
|
| • |
UL and cUL Certified
|
View related products - Temperature & Process Meters, Industrial Timers and Counters
|
| |
|
|
|
 |
The OMEGA™
iSeries is a family of
microprocessor-based instruments
offered in three true DIN sizes with
NEMA 4 (IP65) rated front bezels.
All of the instruments share the same
set-up and configuration menu and
method of operation, a tremendous
time saver for integration of a large
system. The iSeries family includes
extremely accurate digital panel
meters "DPi" and single loop PID
controllers "CNi" that are simple to
configure and use, while providing
tremendous versatility and a wealth
of powerful features.
The DPi Series covers a broad
selection of transducer and
transmitter inputs with 2 input
models.
The Universal temperature and
process instrument (DPi models)
handles 10 common types of
thermocouples, multiple RTDs and
several process (DC) voltage and
current ranges. This model also
features built-in excitation, 24 Vdc @
25 mA. With its wide choice of signal
inputs, this model is an excellent
choice for measuring or controlling
temperature with a thermocouple,
RTD, or 4 to 20 mA transmitter.
The strain and process instruments
(DPiS models) measure inputs from
load cells, pressure transducers,
and most any strain gage sensor as
well as process voltage and current
ranges. The DPiS has built-in
5 or 10 Vdc excitation for bridge
transducers, 5 Vdc @ 40 mA or
10 Vdc @ 60 mA (any excitation
voltage between 5 and 24 Vdc is
available by special order). This
DPiS model supports 4- and 6-wire
bridge communications, ratiometric
measurements. The DPiS features
fast and easy "in process" calibration/
scaling of the signal inputs to any
engineering units. This model also
features 10-point linearization which
allows the user to linearize the signal
input from extremely nonlinear
transducers of all kinds.
Programmable
Color Display

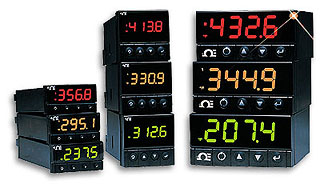

The DPi Series are 1/8, 1/16 and 1/32 DIN
digital panel meter featuring the big
iSeries color-changing display. The
digits are twice the size of typical 1/8 DIN panel meters. The iSeries
meters feature the only LED displays
that can be programmed to change
color between
GREEN, AMBER, and RED. .
Embedded internet and serial
communications featuring optional
"embedded Internet" (specify "-EIT"
option) the iSeries are the first
instruments of their kind that connect
directly to an Ethernet network and
transmit data in standard TCP/
IP packets, or even serve Web
pages over a LAN or the Internet.
The iSeries are also available with
serial communications. With the "-C24" option, the user can select
from the pushbutton menu between
RS232, RS422, and RS485, with
straightforward ASCII commands. If Modbus is required, we recommend our latest Platinum meters - DPPT Series.
SPECIFICATIONS
Universal Temperature and Process Input (DPi/CNi Models)
Accuracy: Accuracy at 25°C: 0.5°C (±0.9°F) temp nominal, 0.03% Rdg ±0.03% range process and strain
Resolution: 1°/0.1° 10 µV process
Temperature Stability:
RTD: 0.04°C/°C
TC @ 25°C (77°F): 0.05°C/°C
Cold Junction Compensation
Process: 50 ppm/°C
NMRR: 60 dB
CMRR: 120 dB
A/D Conversion: Dual slope
Reading Rate: 3 samples/s
Digital Filter: Programmable
Display: 4-digit 9-segment LED 10.2 mm (0.40"); DPi/CNi32, DPi/CNi16, DPi/CNi16D, DPi/CNi8DV 21 mm (0.83"); DPi/CNi8 10.2 mm (0.40") and 21 mm (0.83"); DPi/CNi8DH RED, GREEN, and AMBER programmable colors for process variable, setpoint and temperature units
Input Types: Thermocouple, RTD, analog voltage, analog current
Thermocouple Lead Resistance: 100 Ω max
Thermocouple Types (ITS 90): J, K, T, E, R, S, B, C, N, L (J DIN)
RTD Input (ITS 68): 100/500/1000 Ω Pt sensor, 2-, 3- or 4-wire; 0.00385 or 0.00392 curve
Voltage Input: 0 to 100 mV, 0 to 1V, 0 to 10 Vdc
Input Impedance: 10 MΩ for 100 mV 1 MΩ for 1 or 10 Vdc
Current Input: 0 to 20 mA (5 Ω load)
Configuration: Single-ended
Polarity: Unipolar
Step Response: 0.7 sec for 99.9%
Decimal Selection:
Temperature: None, 0.1
Process: None, 0.1, 0.01 or 0.001
Setpoint Adjustment: -1999 to 9999 counts
Span Adjustment: 0.001 to 9999 counts
Offset Adjustment: -1999 to 9999
Excitation (Not Included with
Communication): 24 Vdc @ 25 mA (not available for low-power option)
Universal Strain and Process Input (DPiS/CNiS Models)
Accuracy: 0.03% reading
Resolution: 10/1µV
Temperature Stability: 50 ppm/°C
NMRR: 60 dB
CMRR: 120 dB
A/D Conversion: Dual slope
Reading Rate: 3 samples/s
Digital Filter: Programmable
Input Types: Analog voltage and current
Voltage Input: 0 to 100 mVdc, -100 mVdc to 1 Vdc, 0 to 10 Vdc
Input Impedance: 10 MΩ for 100 mV; 1 MΩ for 1V or 10 Vdc
Current Input: 0 to 20 mA (5 Ω load)
Linearization Points: Up to 10
Configuration: Single-ended
Polarity: Unipolar
Step Response: 0.7 sec for 99.9%
Decimal Selection: None, 0.1, 0.01 or 0.001
Setpoint Adjustment: -1999 to 9999 counts
Span Adjustment: 0.001 to 9999 counts
Offset Adjustment: -1999 to 9999
Excitation (Optional In Place Of Communication): 5 Vdc @ 40 mA; 10 Vdc @ 60 mA
Control
Action: Reverse (heat) or direct (cool)
Modes: Time and amplitude proportional control; selectable manual or auto PID, proportional, proportional with integral, proportional with derivative and anti-reset Windup, and on/off
Rate: 0 to 399.9 s
Reset: 0 to 3999 s
Cycle Time: 1 to 199 s; set to 0 for on/off
Gain: 0.5 to 100% of span; setpoints 1 or 2
Damping: 0000 to 0008
Soak: 00.00 to 99.59 (HH:MM), or OFF
Ramp to Setpoint:
00.00 to 99.59 (HH:MM), or OFF
Auto Tune: Operator initiated from front panel
Control Output 1 and 2
Relay: 250 Vac or 30 Vdc @ 3 A (resistive load); configurable for on/off, PID and ramp and soak
Output 1: SPDT, can be configured as alarm 1 output
Output 2: SPDT, can be configured as alarm 2 output
SSR: 20 to 265 Vac @ 0.05 to 0.5 A (resistive load); continuous
DC Pulse: Non-isolated; 10 Vdc @ 20 mA
Analog Output (Output 1 Only): Non-isolated, proportional 0 to 10 Vdc or 0 to 20 mA; 500 Ω max
Output 3 Retransmission
Isolated Analog Voltage and Current
Current: 10 V max @ 20 mA output
Voltage: 20 mA max for 0 to 10 V output
Network and Communications
Ethernet: Standards compliance IEEE 802.3 10 Base-T
Supported Protocols: TCP/IP, ARP
RS232/RS422/RS485: Selectable from menu; both ASCII and Modbus protocol selectable from menu; programmable 300 to 19.2 Kb; complete programmable setup capability; program to transmit current display, alarm status, min/max, actual measured input value and status
RS485: Addressable from 0 to 199
Connection: Screw terminals
Alarm 1 and 2 (Programmable)
Type: Same as output 1 and 2
Operation: High/low, above/below, band, latch/unlatch, normally open/ normally closed and process/deviation; front panel configurations
Analog Output (Programmable): Non-isolated, retransmission 0 to 10 Vdc or 0 to 20 mA, 500 Ω max (output 1 only); accuracy is ±1% of FS when following conditions are satisfied: input is not scaled below 1% of input FS, analog output is not scaled below 3% of output FS
General
Power: 90 to 240 Vac ±10%, 50 to 400 Hz*, 110 to 375 Vdc, equivalent voltage
Low Voltage Power Option: 24 Vac**, 12 to 36 Vdc for DPi/CNi/DPiS/CNiS; 20 to 36 Vdc for dual display, ethernet, and isolated analog output from qualified safety approved source
Isolation
Power to Input/Output: 2300 Vac per 1 minute test
For Low Voltage Power Option: 1500 Vac per 1 minute test
Power to Relay/SSR Output: 2300 Vac per 1 minute test
Relay/SSR to Relay/SSR Output: 2300 Vac per 1 minute test
RS232/485 to Input/Output: 500 Vac per 1 minute test
Environmental Conditions:
All Models: 0 to 55°C (32 to 131°F) 90% RH non-condensing
Dual Display Models: 0 to 50°C (32 to 122°F), 90% RH non-condensing (for UL only)
Protection:
DPi/CNi/DPiS/CNiS32, 16, 16D, 8C: NEMA 4X/Type 4 (IP65) front bezel
DPi/CNi8, 8DH, 8DV: NEMA 1/Type 1 front bezel
Approvals: UL, C-UL, CE per EN61010- 1:2001
Dimensions
DPi/CNi8 Series: 48 H x 96 W x 127 mm D (1.89 x 3.78 x 5")
DPi/CNi16 Series: 48 H x 48 W x 127 mm D (1.89 x 1.89 x 5")
DPi/CNi32 Series: 25.4 H x 48 W x 127 mm D (1.0 x 1.89 x 5")
Panel Cutout
DPi/CNi8 Series: 45 H x 92 mm W (1.772 x 3.622"), 1.8 DIN
DPi/CNi16 Series: 45 mm (1.772") square, 1.16 DIN
DPi/CNi32 Series: 22.5 H x 45 mm W (0.886 x 1.772"), 1.32 DIN
Weight
DPi/CNi8 Series: 295 g (0.65 lb)
DPi/CNi16 Series: 159 g (0.35 lb)
DPi/CNi32 Series: 127 g (0.28 lb)
* No CE compliance above 60 Hz.
** Units can be powered safely with 24 Vac power, but no certification for CE/UL are claimed.
THERMOCOUPLE CHART
Universal Temperature / Process |
Input Type |
Range |
Accuracy |
Process Voltage |
0 to 100 mV, 0 to 1 V, 0 to 10 Vdc |
0.03% Rdg ±0.03% range |
Process Current |
0 to 20 mA (4 to 20 mA) |
0.03% Rdg ±0.03% range |
Excitation |
24 V @ 25 mA |
|
J |
Iron-Constantan |
-210 to 760°C / -346 to 1400°F |
0.4°C / 0.7°F |
K |
CHROMEGA™-ALOMEGA™ |
-270 to -160°C / -160 to 1372°C
-454 to -256°F / -256 to 2502°F |
1.0°C / 0.4°C
1.8°F / 0.7°F |
T |
Copper-Constantan |
-270 to -190°C / -190 to 400°C
-454 to -310°F / -310 to 752°F |
1.0°C / 0.4°C
1.8°F / 0.7°F |
E |
CHROMEGA™-Constantan |
-270 to -220°C / -220 to 1000°C
-454 to -364°F / -364 to 1832°F |
1.0°C / 0.4°C
1.8°F / 0.7°F |
R |
Pt/13%Rh-Pt |
-50 to 40°C / 40 to 1768°C
-58 to 104°F / 104 to 3214°F |
1.0°C / 0.5°C
1.8°F / 0.9°F |
S |
Pt/10%Rh-Pt |
-50 to 100°C / 100 to 1768°C
-58 to 212°F / 212 to 3214°F |
1.0°C / 0.5°C
1.8°F / 0.9°F |
B |
30%Rh-Pt/6%Rh-Pt |
100 to 640°C / 640 to 1820°C
212 to 1184°F / 1184 to 3308°F |
1.0°C / 0.5°C
1.8°F / 0.9°F |
C |
5%Re-W/26%Re-W |
0 to 2320°C / 32 to 4208°F |
0.4°C / 0.7°F |
N |
Nicrosil-Nisil |
-250 to -100°C / -100 to 1300°C
-418 to -148°F / -148 to 2372°F |
1.0°C / 0.4°C
1.8°F / 0.7°F |
L |
J DIN |
-200 to 900°C / -328 to 1652°F |
0.4°C / 0.7°F |
|
Pt, 0.00385, 100, 500, 1000 ohm |
-200 to 900°C / -328 to 1652°F |
0.4°C / 0.7°F |
RTD |
Pt, 0.00392, 100, 500, 1000 ohm |
-200 to 850°C / -328 to 1562°F |
0.4°C / 0.7°F |
|
|
|
Input
Type
|
Range
|
Accuracy
|
|
Process
Voltage
|
0
to 100 mV, -100 mV to 1 V, 0 to 10 Vdc
|
0.03%
rdg
|
|
Process
Current
|
0
to 20 mA (4 to 20 mA)
|
0.03%
rdg
|
|
Excitation |
5 V @ 40 mA, 10 V @ 60 mA
|
|
|
Nickel RTD Input (FS required) |
Input Type |
Range |
Accuracy |
RTD-1N |
Nickel MIL-T-7990B |
0 to 200°C /
32 to 392°F |
0.1°C /
0.2°F |
|
RTD-2N
|
Nickel MIL-T-7990B
|
-40 to 300°C /
-40 to 572°F
|
0.3°C /
0.5°F
|
|
|
|
|
|
|
† Price are shown in RMB.
Note: "-DC", "-C24" and "-C4EIT" not available with excitation. Models "-EIT" and "-C4EIT" are only offered on DPi8 and DPiS8 models. * 20 to 36 Vdc for DPi8A, DPi16A, -C4EIT, or -EIT.
Ordering Example: (1) DPi8-C24 1/8 DIN Meter with isolated RS-232 and RS-485 300 to 19.2 k baud, ¥4,025.00
|
|
|
|
|
|
|
|
|
Part Number Builder |
|
|
|
|
|
|
|
|
Option Descriptions
|
|
(1)
|
Input Type
|
| |
Select
Nothing(leave field blank) for Temperature/Process Monitor
S for Strain
|
(2)
|
Case Size
|
| |
Select
32 for 1/32 DIN
16 for 1/16 DIN
16A for 1/16 DIN and isolated analog output
8 for 1/8 DIN
8A for 1/8 DIN and isolated analog output
8C for 1/8 DIN with compact case
|
(3)
|
Network Options
|
| |
Select
Nothing(leave field blank) for No Network Options
-C24 for Isolated RS232 and RS485 300 to 19.2 k baud
-EIT for Ethernet with Embedded Internet (only for DPi/DPiS8)
-C4EIT for Ethernet with Embedded Web Server + Isolated RS485/422 hub for up to 31 devices (only for DPi/DPiS8)
|
(4)
|
Power Supply
|
| |
Select
Nothing(leave field blank) for Standard Power (90 to 240 Vac/dc @ 50 to 400 Hz)
-DC for Low Voltage Power (12 to 36 Vdc/24 Vac for single display. 20 to 36 Vdc/24Vac for dual display ethernet or isolated analog output)
|
|
NOTE: All combinations may not be valid, check spec sheet for valid part numbers.
|
| | |
|
|
|
|
|
|
| |
|
Related Links -
Manual, Software, Related Products
|
|
|
|
Product Manual
|
|
Download
DPi32 - i Series Monitor Quick Start Manual
|
|
Download
DPi32 - i Series Monitor Manual
|
|
Download
DPi32 - i Series Communications Manual
|
|
Download
DPi16 - i Series Communications Manual
|
|
Download
DPi16 - i Series Monitor Manual
|
|
Download
DPi16 - i Series Communications Manual
|
|
Download
DPi8 - i Series Monitor Quick Start Manual
|
|
Download
DPi8 - i Series Monitor Manual
|
|
Download
DPi8 - i Series Communications Manual
|
|
Download
DPi/DPiS/DPiTH 8,8C,8D,16 - -EIT/-C4EIT Option - Embedded Ethernet for iSeries Monitor/Controller
|
|
Software
|
|
Download iSeries ActiveX Control
|
|
Download iSeries Configuration Software
|
|
Related Products
|
 |
OEG_Software:
|
|
Omega Data Logging & Monitoring Software (OEG) w/ OPC UA/DA
|
|
|
|
|
|
|
|
|
|
 |
CNi Series:
|
|
i-Series Temperature, Process and Strain Controllers
|
|
|
|
|
|
 |
CNi32 Series:
|
|
i-Series 1/32 DIN Temperature, Process and Strain PID Controllers
|
|
|
|
|
|
 |
CNi8 Series:
|
|
i-Series 1/8 DIN Temperature, Process
and Strain PID Controllers
|
|
|
|
|
|
 |
CNi16 Series:
|
|
i-Series 1/16 DIN Temperature, Process and Strain PID Controllers
|
|
|
|
|
|
|
|
|
|
|
