1/8 DIN 4 & 7-Channel Temperature or Process Scanner with Optional Outputs |
| DPS3100 & DPS3200 Series |
|
 |
|
|

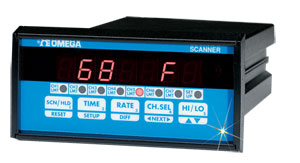

1/8 DIN 4 & 7-Channel Temperature or Process Scanner
 |
| Click for larger image. |
|
|
|
|
| • |
Thermocouple, RTD, Voltage, and Current Input
|
| • |
Auto/Manual Scanning
|
| • |
Rate, Min/Max and Channel Differentials
|
| • |
4-Digit Display Plus 3 Alphanumeric
|
| • |
Separate Limit Relay and Independent Scaling for Each Channel
|
| • |
Built-in Buzzer to Sound Alarm on Models with Outputs
|
View related products - Process Meters and Scanners
|
| |
|
|
|
 |
The DPS3000 Series Scanners monitor up to seven individual inputs. Each channel on the DPS3200 and DPS3204 can be programmed to accept different types of inputs, while the DPS3100 and DPS3104 are limited to one input type on all channels. Temperature is displayed in °C or °F, while voltage and current signals can be scaled. All models can be set up to display in any one of six operating modes: automatically scan and display each channel; show elapsed time; display the channel with highest or lowest reading; scan each channel’s deviation from a preset setpoint; show differential between a ‘master’ channel and other inputs.
SPECIFICATIONS
Accuracy: 0.5% reading (J, K, T, E: 1°C; S: 2°C; R, B: 3°C)
CJC Error: 1°C (10 to 40°C)
Scale: 1 to 30,000
Resolution: 1°C/°F (0.1°C/°F for thermistor input); 0.025% FS
Power: 120 Vac, 60 Hz; 240 Vac, 50 Hz (optional); 9 to 15 Vdc, 900 mA (optional)
Scan Rate: Fixed, 2 channels/second
Channel Display Time: 1 to 999 seconds per channel
Alarms (Optional): Mechanical relay; 1 A @ 28 Vdc or 0.5 A @ 120 Vac, SPST, programmable as NO/NC, DC driver; 5 Vdc @ 50 mA; 1 alarm per channel (channel 7 is monitoring only)
Deadband: 2 to full scale, programmable
Dimensions: 57 H x 112 W x 178 mm D (2.25 x 4.4 x 7")
Cutout: 1/8 DIN; 45 x 92 mm (1.772 x 3.662"); 180 mm (7.0") depth
Weight: 1.2 kg (2.8 lb)
|
|
|
|
|
|
† Price are shown in RMB.
|
|
|
|
|
|
|
|
|
Part Number Builder |
|
|
|
|
|
|
|
|
Option Descriptions
|
|
(1)
|
Dedicated and Programmable Input 4 and 7 Channel Scanners
|
| |
Select
DPS3104 for 4-channel scanner (same input type on all 4 channels)
DPS3107 for 7-channel scanner (same input type on all 7 channels)
DPS3204 for 4-channel scanner (input channels are independently programmable)
DPS3207 for 7-channel scanner (input channels are independently programmable)
|
(2)
|
Input Types
|
| |
Select
R for Type R thermocouple-for DPS 3104 and 3107/Type R thermocouple with 4-20 mA and 0-10 Vdc for DPS3204 and 3207
S for Type S thermocouple for DPS3104 and 3107/Type S thermocouple with 4-20 mA and 0-10 Vdc for DPS3204 and 3207
B for Type B thermocouple for DPS3104 and 3107/Type B thermocouple with 4-20 mA and 0-10 Vdc for DPS3204 and 3207
TC for Type J/K/T/E thermocouples for DPS3104 and 3107/Type J/K/T/E thermocouples with 4-20 mA and 0-10 Vdc DPS3204 and 3207
RTD for RTD (385 & 392 curve) for DPS3104 and 3107/RTD (385 & 392 curve) 4-20 mA and 0-10 Vdc DPS3204 and 3207
TH for 400 series thermistor for DPS3104 and 3107/400 series thermistor with 4-20 mA and 0-10 Vdc for DPS3204 and 3207
MV for 0-100 mV for DPS3104 and 3107 only
V for 0-10 Vdc for DPS3104 and 3107 only
C for 4-20 mA for DPS3104 and 3107 only
P for 0-100 mV/0-10 Vdc/4-20 mA for DPS3204 and 3207 only
|
(3)
|
Power and Output Options
|
| |
Select
Nothing(leave field blank) for Standard Unit
-1 for 240 Vac power
-2 for 9 to 15 Vdc power
-3 for 7 relays (DPS3107 and 3207)
-4 for 7 dc drivers (DPS3107 and 3207)
-5 for 4 relays (DPS3104 and 3204)
-6 for 4 dc drivers (DPS3104 and 3204)
|
|
NOTE: All combinations may not be valid, check spec sheet for valid part numbers.
|
| |
|
|
|
|
|
|
| |
|
