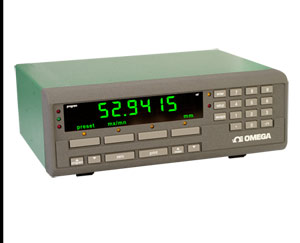

The DR601 is a high performance digital readout designed for use with OMEGA's GP901 digital gage probes. It has two inputs which can be used interchangeably with the digital probes and encoders, or, with the addition of the LDN-CON network connector, up to thirty probes in any combination can be connected.
SPECIFICATIONS Power: 85 to 264 Vac, 47 to 440 Hz at 15 Watts max Number of Inputs: 2 digital probes or linear encoders, expandable to 30 using LDN-CON's Numeric Display: 9-digit LED with polarity and decimal point Information Display: 24-character alphanumeric display Engineering Units: User selectable for inches or millimeters Operating Temp.: 0 to 40°C (32 to 104°F) Storage Temp.: -20 to 60°C (-4 to 140°F) Humidity:0 to 95% non-condensing Environmental Rating: Front panel IP65, entire unit IP40 EMC Rating: Emission EN500081-1 Immunity EN500082-2 Dimensions: 235 W x 80 Hx 190 mm D (9.25 x 3.2 x 7.5") Weight: 1.5 kg (3.3 lb)
