Combined Watt/Var Transducers
DRA-WVT-3
1 year warranty OmegaCare

Combined Watt/Var Transducers

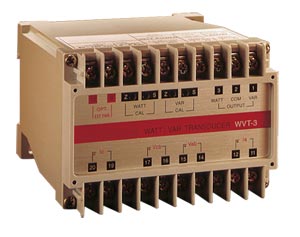

DRA-WVT-3:Combined Watt/Var Transducers
Click for larger image.

• ± 0.1% Accuracy
• Galvanically Isolated
• Two Simultaneous Outputs for Watt and VAR
• Single Phase & Three Phase Models

View related products - Signal Conditioners

Click to scroll below to order See Specs PDF Manuals View a printer friendly page

The DRA-WVT-3 Series combines watt and VAR transducers in one compact housing. Two simultaneous proportional dc current outputs are provided for watt and VAR parameters. The polarity of the watt output is positive for unity power factor (PF); polarity for the VAR output is positive for lagging power factor.
Order on www.omegaengineering.cn and 5% will be discounted when you checkout.
  To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping
 Part Number   Availability   Price(RMB)   Description    Qty.
 DRA-WVT-3-1A    Consult sales   115 Vac/5A 60 Hz* single phase input, 4-20 mA** outputs for Watt and VAR, 115 Vac power
 DRA-WVT-3-1B    Consult sales   230 Vac/5A 60 Hz* single phase input, 4-20 mA** outputs for Watt and VAR, 115 Vac power
† Price are shown in RMB.

 Note: * Consult engineering for 50 Hz and 400 Hz models. Comes with complete operator’s manual. ** Models with ±1mA or ±20mA outputs are also available. Consult engineering.


Keywords:Watt Transducer Var Transducers Power Monitor
