Thermocouple Input Signal Conditioner - Discontinued
|
| DRF-TC Series |
|
 |
|
|
Thermocouple Input Signal Conditioner
 |

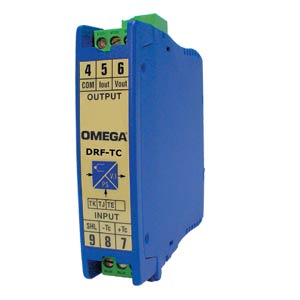

| Click for larger image. |
|
|
|
|
| • |
Models for J, K, E, T, R and S Thermocouples
|
| • |
Accuracy 0.3%
|
| • |
250 ms Response Time
|
| • |
Upscale Break Protection
|
| • |
Linearized Output
|
| • |
Galvanic Isolation Between Input, Output and Power
|
|
|
| |
|
|
|
 |
This product has been discontinued. For a potential replacement, please see DR-I4P.
The DRF series DIN rail signal conditioners are
designed to accept a broad range of input signals,
such as ac and dc voltage and current, frequency,
temperature (thermocouple and RTD), and process
transducers, and provide standard process outputs
of either 4 to 20 mA, or 0 to 10 Vdc. The DRF series
feature a modern housing design, that is easily
mounted on standard 35 mm DIN rails. Connections
are safely and securely made through pluggable
screw terminal connectors, with input and output
connections on the opposite sides of the module.
The DRF-TC thermocouple signal
conditioners accept thermocouple input
and provide a linearized and isolated 0
10 Vdc or 4 to 20 mA output. Models are
available with three different power
options, 24Vdc, 120 Vac and 240 Vac.
The DRF-TC are ideally suited for
industrial applications. All models mount
on a standard 35 mm DIN rail and
provide galvanic isolation between input,
output and power up to 3500 Veff (model
specific). To insure maximum
measurement accuracy the units feature
cold junction compensation, 0.2%
linearity and less than 0.1°C/1°C thermal
drift due to compensation. Module
response time is 250 ms or less.
Range Code Table for DRF-TC
| Range Code | Range | J | K | T | E | R | S |
| 0/100°C | 0 to 100°C | | | | X | | |
| 0/150°C | 0 to 150°C | X | X | | | | |
| 0/175°C | 0 to 175°C | | | | X | | |
| 0/200°C | 0 to 200°C | | | X | | | |
| 0/250°C | 0 to 250°C | X | X | | | | |
| 0/300°C | 0 to 300°C | | | X | X | | |
| 0/400°C | 0 to 400°C | X | X | X | | | |
| 0/500°C | 0 to 500°C | | | | X | | |
| 0/700°C | 0 to 700°C | X | X | | | | |
| 0/800°C | 0 to 800°C | | | | X | | |
| 0/1200°C | 0 to 1200°C | | X | | | | |
| 0/1600°C | 0 to 1600°C | | | | | | X |
| 850/1700°C | 850 to 1700°C | | | | | X | |
| Minimum Span* | | 85°C | 85°C | 100°C | 85°C | 100°C | 100°C |
* Custom ranges may be obtained by adjusting on-board zero and span potentiometers.
The minimum range is limited by the minimum span specification.
SPECIFICATIONS
Accuracy: <0.3% full scale
Linearity: <0.2% full scale
Thermal Drift: 250 ppm/°C typical
Thermocouple CJC Drift: 0.1°C/°C
Response Time: <250 mS (90% of signal)
Power: 24 Vdc ±10%, 230 Vac ±10% 50/60 Hz,
115 Vac ±10% 50/60 Hz
Power Consumption: <3.8 VA
Output: 4 to 20 mA and 0 to 10 Vdc
Maximum Voltage Output: 11 Vdc approx.
Minimum Voltage Output: -1 Vdc approx.
Minimum Load Resistance (Voltage): >1 KΩ
Maximum Current Output: 22 mA approx.
Maximum Current Output: -1.5 mA approx.
Maximum Load Resistance (current): >400 Ω
|
|
Electrical Connections: Plug-in screw terminals
Protection: IP-30
MECHANICAL DIMENSIONS
Weight:
(DC Powered Models): 120 g (4.2 oz)
(AC Powered Models): 200 g (7 oz)
Dimensions:
(DC Powered models):
110 H x 22.5 W x 93 mm D (4.3 x 0.9 x 3.7")
(AC Powered models):
110 H x 37 W x 93 mm D (4.3 x 1.46 x 3.7")
Operating Temperature: 0 to 60°C (32 to 140°F)
Storage Temperature: -20 to 70°C (-4 to 158°F)
|
|
|
|
|
|
|
† Price are shown in RMB.
|
|
|
|
|
|
|
|
|
Part Number Builder |
|
|
|
|
|
|
|
|
Option Descriptions
|
|
(1)
|
Thermocouple Type
|
| |
Select
J for J thermocouple
K for K thermocouple
T for T thermocouple
E for E thermocouple
R for R thermocouple
S for S thermocouple
|
(2)
|
Power
|
| |
Select
115VAC for 115 Vac power
230VAC for 230 Vac power
24VDC for 24 Vdc power
|
(3)
|
Range Code
|
| |
Select
0/100C for 0 to 100°C (E thermocouple only)
0/150C for 0 to 150 degree C (K thermocouple only)
0/175C for 0 to 175 degree C (E thermocouple only)
0/200C for 0 to 200 degree C (T thermocouple only)
0/250C for 0 to 250 degree C (K thermocouple only)
0/300C for 0 to 300 degree C (T and E thermocouple only)
0/400C for 0 to 400 degree C (K and T thermocouple only)
0/500C for 0 to 500 degree C (E thermocouple only)
0/700C for 0 to 700 degree C (J and K thermocouple only)
0/800C for 0 to 800 degree C (E thermocouple only)
0/1200C for 0 to 1200 degree C (K thermocouple only)
0/1600C for 0 to 1600 degree C (S thermocouple only)
850/1700C for 850 to 1700 degree C (R thermocouple only)
|
(4)
|
Output
|
| |
Select
4/20 for 4 to 20 mA
0/10 for 0 to 10Vdc
|
|
NOTE: All combinations may not be valid, check spec sheet for valid part numbers.
|
| | |
|
|
|
|
|
|
| |
|
