Gauge Calibration Kit
|
| DWT1327D |
|
 |
|
|
|
|
 |

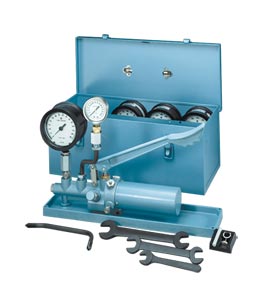

A compact, lightweight, portable pressure standard with 0.25% accuracy gauges, the DWT1327D Test Set is ideally suited
to field testing or remote in-plant applications. The test set consists of a two-stage hydraulic pump and a manifold which is
pressurized during operation. An integral part of the pump is a new shuttle valve feature that can increase the speed of
pressure build-up or reduce the effort necessary to operate the pump handle. One connection to the manifold is for a
4½" PGT-45L solid front test gauge (0.25% gauge span accuracy); the other connection accommodates most
standard size dial gauges.
SPECIFICATIONS
TEST SET
Accuracy: 0.25% of Gauge Span
Operating Pressure: 0 to 10,000 psi (0 to 70,000 kPa) max
Body Material: Aluminum Alloy
Operating Fluid: SAE 20 Automotive or Machine Oil
O-Ring: Standard-Buna N
Reservoir Volume: Approximately 1.5 Pints (0.7 liter)
TEST GAUGES
Type and Size: PGT45L 4½" Test Gauges
Accuracy: 0.25% of Gauge Span
Bourdon Tube Materials: Monel
|
|
|
|
|
|
† Price are shown in RMB.
Note: Complete Test Set includes: two-stage hydraulic pump with base; three wrenches for gauge installation and removal, spare O-rings, all piping, fittings and 1 /4 and 1 /2 NPT adaptors, rugged metal carrying case that holds up to four test gauges, and complete operator’s manual
Ordering Example: (1) PGT-45L-5000 0-5,000 psig, 1/4% accuracy, 4 1/2'' test gauge, ¥5,855.00
|
|
|
|
|
| |
|
