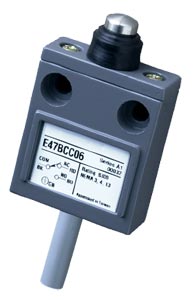

Limit Switch, Prewired, Compact |
| E47BCC Series |
|
 |
|
|
|
|
|
|
|
| • |
Rugged Aluminum Alloy Die Cast Housing
|
| • |
Sealed Construction With Enclosure Ratings of NEMA 4, 6 and 13
|
| • |
Prewired With 3 m of 18 AWG, AWM 2517, 300V Cable
|
| • |
Stackable Ridge for Ganged Operation
|
View related products - Sensors and Transducers
|
| |
|
|
|
 |
The E47 Compact Prewired Limit Switch is
designed to be a versatile, slim device for hard
to fit applications where sealing integrity is
required. The rugged die cast aluminum alloy
housing, cable connection and switch
mechanism are encapsulated for protection
against extreme temperature (-10 to 70°C),
contaminants, moisture, shock and vibration.
This factory wired (3 m) device has NEMA
enclosure ratings of 4, 6 and 13, making it
suitable for applications such as machine tool,
food processing and packaging.
SPECIFICATIONS
Contacts: 1-SPDT (Form C)
Mechanical Life: 10,000,000 operations
Electrical Life: 200,000 operations, 30 operation/min at rated load
Operating Speed: 30 operations per minute maximum
Operating Temperature Range: 10 to 70°C (14 to 158°F)
Storage Temperature Range: 10 to 70°C (14 to 158°F)
Humidity: 95% maximum noncondensing
Vibration: Malfunction durability, 10 to 55 Hz 1.5 mm double amplitude
Shock: Malfunction durability, approximately 50 g
Enclosure Ratings: NEMA 4, 6 and 13; IEC IP67
| MODEL NUMBER | ACTUATOR TYPE | OPERATING FORCE | RESET FORCE | OVERTRAVEL | PRETRAVEL | MOVEMENT | OPERATING |
| | | (MAXIMUM) | (MINIMUM) | (MINIMUM) | | DIFFERENTIAL | POSITION |
| E47BCC06 | Sealed Plunger | 1.8 kg(63.5 oz) | 450g (15.9 oz) | 3 mm (0.118") | 1.8 mm (0.07") | 0.2 mm (0.008") | 24.9 ± 1 mm
( 0.99 ± 0.04") |
| E47BCC07 | Roller Plunger | 1.2 kg (42.3 oz) | 450g (15.9 oz) | 3 mm (0.118") | 1.8 mm (0.07") | 0.2 mm (0.008") | 28.5 ± 1 mm
(1.12 ± 0.04") |
| E47BCC15 | Roller Lever | 580g (20.5 oz) | 150g (5.3 oz) | 40° | 25° max | 3° | – |
|
|
|
|
|
|
† Price are shown in RMB.
Note: Comes with instruction sheet.
|
|
|
|
|
| |
|
