Modular Plug-In Limit Switches

E50 Series

Click for larger image.

^¥ 3,455.00 E50ANR1

•	Easy to Install
•	High Reliability
•	Low Maintenance
•	Modular to Reduced Inventory
View related products - Sensors and Transducers

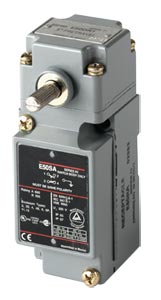

E50 Modular Plug-In Limit Switch components are the industry standard with versatility of design and high reliability for low maintenance, installation and inventory costs. Standard FKM gaskets, seals and boots, and a zinc die cast enclosure provide exceptional chemical resistance to the common coolants, cleansing agents, and hydraulic fluids found in machine tool, automotive, waste water treatment and other heavy-duty industrial applications. Mounting dimensions accommodate both U.S. and DIN standards for easy retrofit installations. Super bright 24 to 120 Vac/dc LED indicating light versions simplify setup and troubleshooting operations.

SPECIFICATIONS
Environmental Ratings: NEMA 1, 3, 3S, 4, 4X, 6, 6P, 13, IP67
Material of Construction: Zinc die cast
Switch Gasket Material: FKM Universal U.S./DIN Mounting
Dimensions: 30 x 60 mm (1.16 x 2.34")
Conduit Entrance: 1.2 NPT or 20 mm threading
Contact Operation: Snap action over center mechanism
Contact Material: Fine silver
Maximum Frequency of Operation: 8000 operations per hour
Mechanical Life:
    Side Rotary Side: 13,000,000 operations minimum
    Top Push: 10,000,000 operations minimum
Electrical Life:
    Single Pole: 1,000,000 operations typical at full load
    Double Pole: 100,000 operations typical at full load
Ambient Temperature Range—Standard
    Standard without Cable: -10 to 121°C (14 to 250°F)
    Standard with Cable: -10 to 105°C (14 to 221°F)
    Low Temperature without Cable: -40 to 121°C (-40 to 250°F)
    Low Temperature with Cable: -40 to 105°C (-40 to 221°F)
Repeat Accuracy—Standard
    Side Operated: Within 0.0012"
    Top Operated: Within 0.0003"
    Side Rotary: Within 0.0014"
Torque Requirements:
    Switch Body Screws: 25 to 30 lb/in
    Operating Head Screws: 14 to 18 lb/in
Wire Size: Will accept AWG #22 to #12, single or stranded wire

Order on www.omegaengineering.cn and 5% will be discounted when you checkout.

To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping

Part Number	Availability	Price(RMB)	Description	Qty.
E50AL1	10 Weeks	¥3,315.00	E50SA body, pre-assembled, single pole, 1 N O / 1 N C, side rotary head with low force spring return, no indicating light	qty.

E50AM1	10 Weeks	¥3,675.00	E50SA body, pre-assembled, single pole, 1 N O / 1 N C, side rotary head with maintained 2-position, no indicating light	qty.

E50ANR1	2 Weeks	¥3,455.00	E50SAN body, pre-assembled, single pole, 1 N O / 1 N C, side rotary head with standard spring return, neon indicating light (not CE)	qty.

E50AR1	10 Weeks	¥2,955.00	E50SA body, pre-assembled, singe pole, 1 N O / 1 N C, side rotary head with standard spring return, no indicating light	qty.

E50AT3	10 Weeks	¥3,605.00	E50SA body, pre-assembled, single pole, 1 N O / 1 N C, top pushbutton head with adjustable spring return, no indicating light	qty.

E50BR1	10 Weeks	¥3,605.00	E50SB body, pre-assembled, double pole, 2 N O / 2 N C, side rotary head with standard spring return, no indicating light	qty.

E50NN1	10 Weeks	¥3,675.00	E50SN body, pre-assembled, neutral position special purpose side rotary head, 5-degree operating travel	qty.

E50AR16P	10 Weeks	¥3,675.00	E50 6P+ version, pre-assembled, single pole, side rotary head with standard spring return, no indicating light	qty.


Components

E50DH1		Consult sales	Side pushbutton, maintained	qty.

E50DL1		Consult sales	Side rotary, low force spring return (Photo similar to E50DR1)	qty.

E50DM1		Consult sales	Side rotary, maintained 2-position (Photo similar to E50DR1)	qty.

E50DN1	10 Weeks	¥1,240.00	Side rotary, neutral position (Photo similar to E50DR1)	qty.

E50DR1		Consult sales	Side rotary, standard spring return	qty.

E50DS1		Consult sales	Side pushbutton, spring return	qty.

E50DS2		Consult sales	Side pushbutton, adjustable spring return	qty.

E50DS3		Consult sales	Side push roller, spring return	qty.

E50DT1		Consult sales	Top pushbutton, spring return	qty.

E50DT2		Consult sales	Top pushbutton, adjustable spring return	qty.

E50DT3		Consult sales	Top push roller, spring return	qty.

E50DW1		Consult sales	Standard duty wobble head, spring return	qty.

E50SA	10 Weeks	¥1,380.00	Single pole, 1 N O / 1 N C, no indicating light	qty.

E50SAL	10 Weeks	¥1,860.00	Single pole, 1 N O / 1 N C, LED indicating light	qty.

E50SAN	2 Weeks	¥1,860.00	Single pole, 1 N O / 1 N C, neon indicating light	qty.

E50SB	10 Weeks	¥1,790.00	Double pole, 2 N O / 2 N C, no indicating light	qty.

E50SN	10 Weeks	¥1,955.00	Neutral position, 15° travel	qty.

E50SA6P	10 Weeks	¥2,550.00	E50 6P+ version switch component, body, single pole, 1 N O / 1 N C, no indicating light	qty.


Mounting Adaptor

E50KH3	2 Weeks	¥550.00	E50 Mounting adaptor for horizontal and vertical adjustment	qty.

E50KH10	10 Weeks	¥251.00	E50 mounting adaptor allows E50 to easily replace AB 802M Series	qty.

E50KH5	10 Weeks	¥186.00	E50 mounting adaptor plate allows E50 to easily replace SqD 9007 type T, national Acme Type D-1200M, Denison LoxSwitch Model L-100W	qty.


Lever Arms

E50KL200		Consult sales	Standard nylatron roller	qty.

E50KL355		Consult sales	Standard metal roller	qty.

E50KL201		Consult sales	Adjustable nylatron roller	qty.

E50KL537		Consult sales	Adjustable nylatron roller	qty.

E50KL538		Consult sales	Adjustable metal roller	qty.

E50KL443		Consult sales	Adjustable stainless steel roller	qty.

E50KL202	2 Weeks	¥460.00	Adjustable rod, 5.5" length, 0.12" diameter	qty.

E50KL220		Consult sales	Adjustable rod, 9" length, 0.19" diameter	qty.

E50KL226		Consult sales	Adjustable rod, 12" length, 0.12" diameter	qty.

E50KL36	10 Weeks	¥373.00	Clamps for adjustable diameter rods 3.2 mm (0.12")	qty.

E50KL421		Consult sales	Stainless steel spring rod, 11.62" length, 0.09" diameter	qty.

E50KL556		Consult sales	Spring rod, 12.12" length, 0.25" diameter, nylon	qty.

E50KL142		Consult sales	Nylatron loop	qty.

† Price are shown in RMB.

Note: Comes with complete instruction sheet.
Ordering Example: (1) E50AL1 Pre-assembled, singe pole, 1 N O / 1 N C, Side rotary head with low force spring return, no indicating light, ¥3,315.00,
