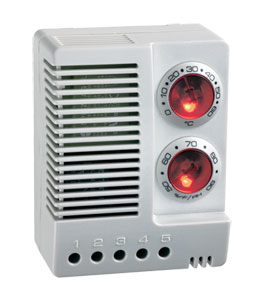

Electronic Hygrothermostat |
| ETF012 Series |
|
 |
|
|
|
|
 |
The electronic hygrotherm senses the
ambient temperature and relative humidity in
an enclosure with electric/electronic
components, and turns on a heater (or
alternatively, a fan) at either set point,
helping prevent the formation of
condensation in the enclosure. The LED
integrated in the adjustment knob on the
active controller is lit when the connected
device is in operation.
SPECIFICATIONS
Switch Difference (Temperature): 2K (±1K tolerance) at 25°C (77°F) (50% RH)
Switch Difference (Humidity): 4% RH (±1% tolerance) at 25°C (77°F) (50% RH)
Reaction Time (Humidity): Approximately 5 sec
Contact Type: Change-over contact (relay)
Contact Resistance: <10 mΩ
Service Life:
NC: >50,000 cycles
NO: >100,000 cycles
Max Switching Capacity: 24 Vdc, 4 A
Relay NC: 240 Vac, 6 (1) A output
Relay NO: 240 Vac, 8 (1.6) A output
NC: 120 Vac, 6 (1) A
NO: 120 Vac, 8 (1.6) A
EMC: Acc. to EN 55014-1-2, EN 61000-3-2, EN 61000-3-3
Optical Indicator: LED
Connection: 5-pole terminal, clamping torque 0.5Nm max; rigid wire 2.5 mm2 (0.10 in2) stranded wire (with wire end ferrule) 1.5 mm2 (0.06 in2)
Mounting: Clip for 35 mm (1.4") DIN rail, EN50022
Casing: Plastic according to UL94 V-0, light gray
Dimensions: 77 x 60 x 43 mm (3.0 x 2.4 x 1.7")
Weight: Approx. 0.20 kg (7.1 oz)
Fitting Position: Vertical
Operating Temperature: 0 to 60°C or 32 to 140°F
Storage Temperature: -20 to 80°C (-4 to 176°F)
Protection Type: NEMA 2 (IP20)
|
|
|
|
|
|
† Price are shown in RMB.
Note: Comes with complete operator’s manual.
Ordering Example: (1) ETF01230900 Electronic hygrotherm, ¥1,505.00
|
|
|
|
|
| |
|
