Excelon® General Purpose Air Line Filters for Partical and Water Removal in Compressed Air Systems  - Discontinued
F72G Series General Purpose Compressed Air Filters

Airline Filters
F72G Series General Purpose Compressed Air Filters:Excelon® General Purpose Air Line Filters for Partical and Water Removal in Compressed Air Systems  - Discontinued

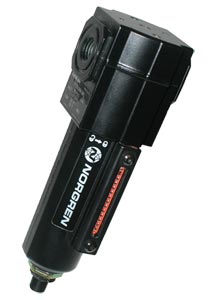

Click for larger image.

¥ 815.00  F72G-2AN-AE3
• In-Line or Modular Installation
• High Efficiency Air Filters for Water and Particle Removal
• Quick Release Bayonet Bowl
• Highly Visible, Prismatic Liquid Level Indicator Lens on Metal Bowls
• Optional Service Indicator Turns from Green to Red When the Filter Element Needs to be Replaced
• Optional Electrical Service Indicator Also Available
• Modular Installations with Excelon 72, 73 and 74 Series can be Made to Suit Particular Applications
Click to scroll below to order See Specs PDF View a printer friendly page

The F72G series has been discontinued. Please contact our Flow Engineering department for a viable replacement.


The F72G Series General Purpose Air Line Filters units are designed for use as a single in-line unit or as part of Norgren's Excelon® modular compressed air preparation supply system. As a modular FRL component, this air filter can quickly be attached to regulators, oilers, smooth start / exhaust valves, safety lockout valves and pipe adapters. With our Quickclamp® and Quickclamp® and wall bracket accessories, a complete compressed air supply system can be assembled and mounted in minutes.

The F72G series genaral purpose air line filters are high efficient water and partical air filters for compressed air systems. The highly visable liquid level indicators make it easy to detect water removal and the 40 µm filter element is adequate for most pneumatic application.
As a modular pneumatic component, this regulator can quickly be attached to filters, oilers, smooth start / exhaust valves, safety lockout valves and pipe adapters. With our Quickclamp® and Quickclamp® and wall bracket accessories, a complete compressed air supply system can be assembled and mounted in minutes.

SPECIFICATIONS

Fluid: Compressed Air
Operating Pressure:
    Transparent Bowl: 10 bar(150 psig)
    Metal Bowl: 17 bar(250 psig)
Operating Temperature*:
    Transparent Bowl:-34 to 50°C (-30 to 125°F)
    Metal Bowl: -34 to 65°C(-30 to 150°F)

F72G MATERIALS
Body: Zinc
Transparent Bowl: Polycarbonate
Guard for Transparent Bowl: Zinc
Metal Bowl Liquid
Level Indicator Lens: Transparent nylon
Element: Sintered polypropylene
Elastomers: Neoprene and nitrile

F73G AND F74G MATERIALS
Body: Aluminum
Transparent Bowl: Polycarbonate
Transparent with Guard: Polycarbonate, steel guard
Metal Bowl: Aluminum
Metal Bowl Liquid Level
Indicator Lens: Transparent nylon
Element: Sintered polypropylene
* Air supply must be dry enough to avoid ice formation at temperatures below 2°C (35°F)
Order on www.omegaengineering.cn and 5% will be discounted when you checkout.
  To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping
 Part Number   Availability   Price(RMB)   Description    Qty.
 General Purpose Air Line Filter Models with Automatic drain
 F72G-2AN-AE1    Consult sales   General Purpose 5 µm Air Filter with ¼' Port
 F72G-2AN-AE3 2 Weeks   ¥815.00    General Purpose 40 µm Air Filter with ¼' Port
 F73G-3AN-AD1    Consult sales   General Purpose 5 µm Air Filter with 3⁄8' Port
 F73G-3AN-AD3    Consult sales   General Purpose 40 µm Air Filter with 3⁄8' Port
 F73G-4AN-AD1    Consult sales   General Purpose 5 µm Air Filter with ½' Port
 F73G-4AN-AD3    Consult sales   General Purpose 40 µm Air Filter with ½' Port
 F74G-4AN-AD1    Consult sales   General Purpose 5 µm Air Filter with ½' Port
 F74G-4AN-AD3    Consult sales   General Purpose 40 µm Air Filter with ½' Port
 F74G-6AN-AD1    Consult sales   General Purpose 5 µm Air Filter with ¾' Port
 F74G-6AN-AD3 2 Weeks   ¥1,355.00    General Purpose 40 µm Air Filter with ¾' Port
 Models with Manual Drain
 F72G-2AN-QE1    Consult sales   General Purpose 5 µm Air Filter with ¼' Port
 F72G-2AN-QE3    Consult sales   General Purpose 40 µm Air Filter with ¼' Port
 F73G-3AN-QD1    Consult sales   General Purpose 5 µm Air Filter with 3⁄8' Port
 F73G-3AN-QD3    Consult sales   General Purpose 40 µm Air Filter with 3⁄8' Port
 F73G-4AN-QD1    Consult sales   General Purpose 5 µm Air Filter with 3⁄8' Port
 F73G-4AN-QD3    Consult sales   General Purpose 40 µm Air Filter with 3⁄8' Port
 F74G-4AN-QD1 2 Weeks   ¥975.00    General Purpose 5 µm Air Filter with ½' Port
 F74G-4AN-QD3    Consult sales   General Purpose 40 µm Air Filter with ½' Port
 F74G-6AN-QD3    Consult sales   General Purpose 40 µm Air Filter with ¾' Port
 Service Life Indicator
 OM-AIR-5797-50    Consult sales   Indicator truns from green to red when element needs to be replaced, for all models
 Replacement Filter Elements
 OM-AIR-4338-05 2 Weeks   ¥126.00    F74G Replacement filter element, 40 µm
 OM-AIR-4338-04    Consult sales   F74G Replacement filter element, 5 µm
 OM-AIR-4438-03    Consult sales   F73G Replacement filter element, 40 µm
 OM-AIR-4438-01    Consult sales   F73G Replacement filter element, 5 µm
 OM-AIR-5925-03    Consult sales   F72G Replacement filter element, 5 µm
 OM-AIR-5925-02    Consult sales   F72G Replacement filter element,40 µm
 Wall Mounting Brackets
 OM-AIR-4224-50    Consult sales   For L72G models
 OM-AIR-4424-50    Consult sales   For L73G models
 OM-AIR-4324-50    Consult sales   For L74G models
 Quickclamps
 OM-AIR-4214-51 2 Weeks   ¥116.00    Quickclamps for F72G models
 OM-AIR-4314-51 2 Weeks   ¥126.00    Quickclamps for F73G & F74G models
 Quickclamp Wall Brackets
 OM-AIR-4214-52 2 Weeks   ¥149.00    Quickclamp wall bracket for F72G models
 OM-AIR-4314-52    Consult sales   Quickclamp wall bracket for F73G,& F74G models
 Pipe Adapters
 OM-AIR-4215-02 2 Weeks   ¥154.00    ¼' NPT for F72G models
 OM-AIR-4215-03    Consult sales   ⅜' NPT for F72G models
 OM-AIR-4315-01    Consult sales   ¼' NPT for F73G & F74G models
 OM-AIR-4315-02    Consult sales   ⅜' NPT for F73C & F74G models
 OM-AIR-4315-03 2 Weeks   ¥159.00    ½' NPT for F73G & F74G models
 OM-AIR-4315-04 2 Weeks   ¥170.00    ¾' NPT for F73G & F74G model
† Price are shown in RMB.

 Note: Models listed include PTF threads, automatic drain, metal bowl with liquid level indicator and a 40 µm element.
Typical flow with a 40 µm element at 6.3 bar (90 psig) inlet pressure and 0.35 bar (5 psig) pressure drop.
  Ordering Example: (1) F72G-2AN-AE3 General purpose filter with ¼'' port, metal bowl with liquid level sensor, PTF threads, 40 µm element, ¥815.00,
