Drum Heaters 55 Gallon Wraparound |
| FCDH Series |
|
 |
|
|
|
|
|
¥
16,440.00
FCDH-1600-120
|
| • |
55 Gallon Drum Wraparound
|
| • |
Full-Coverage Insulated
|
| • |
Easy-to-Use Digital Temperature Controller
|
| • |
Audible/Visual Alarm
|
| • |
Low-Watt Density
|
| • |
Silicone-Coated Fiberglass Facing
|
| • |
25 mm (1") Fiberglass Insulation
|
| • |
Metal and Poly Drum Models
|
| • |
Safe and Efficient Method of Temp & Viscosity Control
|
View related products - Flexible Heaters
|
| |
|
|
|
 |

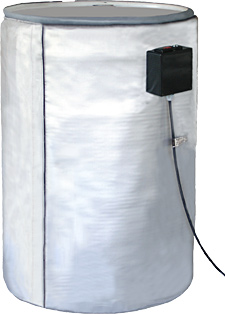

The FCDH Series consists of
full-coverage insulated drum
heaters that provide a safe and
efficient method of temperature
and viscosity control. An easy-to-use
digital temperature controller prevents
temperature runaway.
These heaters
use a patented grounded heating
element and are designed for
indoor use when it is desirable
to insulate the entire surface of
the drum.
SPECIFICATIONS
Metal Drums: 10 to 232°C (50 to 450°F)
Poly Drums: 10 to 71°C (50 to 160°F)
Max Exposure Temperature: 260°C (500°F)
Outer Sheath: Silicone-coated fiberglass facing
Inner Sheath: Silicone-coated fiberglass liner
Insulation: 25.4 mm (1") fiberglass
Dielectric Strength: Over 2000V
Power Cord: 1.8 m (6') with plug on 120V models, stripped lead ends on 240V models
Power: 120 or 240 Vac
|
|
|
|
|
|
† Price are shown in RMB.
Note: All drum heaters are for 55 gallon size and comes with a digital temperature controller. The 120 Vac models include a 3-prong plug, and the 240 Vac models have stripped leads.
For "Rolling Drums" with removable tops the standard full coverage drum heater may not completely wrap around the drum. For these drums with diameters larger than the standard 22.6" an expander strip may be purchased.
Ordering Example: (1) FCDH-1600-120 Drum Heater, 120V, 1600 watt, ¥16,440.00, plus (1) FCDH-STRIP 6'' Expander Strip, ¥800.00, plus (1) FCDH-TOP Drum Heater top cover, ¥1,060.00, ¥16,440.00 + 800.00 + 1,060.00 = $18,300.00
|
|
|
|
|
| |
|
