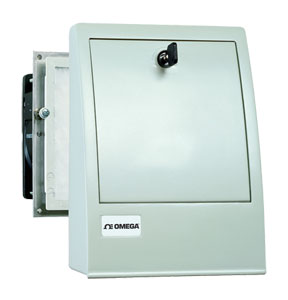

This outdoor filter fan can be used in
outdoor enclosures where warm air has to
be dissipated on account of increased
thermic development. To clean and
exchange the filter mat, it is only necessary
to open the lockable door of the outdoor
hood. A protection type of NEMA 4 (IP55) is
achieved due to the special design of the
hood and the use of fine filter mats. The
plastic casing is impact resistant, highly
weather proof and resistant to UV light.
SPECIFICATIONS Filter Mat: Fine grade 360 g/m2, filtering degree 98% particle Ø >10µm, F5 (EN 779) Air Flow Free Blowing: 11.8 cfm (20 m3/h) Current Consumption: 180 mA Power Consumption: 15 W Average Noise Level at 10 m (3'): (DIN EN ISO 9614-2) 40 dB (A) Mounting Depth: 62 mm (2.4") Enclosure Cut-Out: 125 x 125 mm (4.9 x 4.9") ±0.4 Weight: Approx 1.2 kg (2.6 lb) Protection Type: NEMA 4 (IP55) Axial Fan: Ball bearing, aluminum frame, plastic impeller UL94V-0; operational life min 50,000 hrs at 25°C (77°F) (RH 65%); ambient temperature -30 to 70°C (-22 to 158°F); connection 3-pole terminal, AWG 14 [2.5 mm2 (0.10")] max Filter Fan and Exhaust Filter Housing: Plastic, UL94V-0; color light gray, temperature resistant -0.5 to 70°C (-31 to 158°F) Mounting Frame: With double sided industrial adhesive tape for affixing to the outside of enclosure; certain operating conditions may make the additional use of screws necessary Filter Material: Synthetic fiber with progressive construction, temperature resistant to 100°C (212°F), self-extinguishing class F1; moisture resistant to 100% RH; can be cleaned by washing or vacuuming for reuse EXHAUST FILTER Filter Mat: Medium grade 360 g/m2, filtering degree 98% for particle Ø<10 m, F5 (EN 779) Mounting Depth: 16 mm (0.6") Enclosure Cut-Out: 125 x 125 mm (4.9 x 4.9") ±0.4 Weight: 0.60 kg (1.3 lb)
