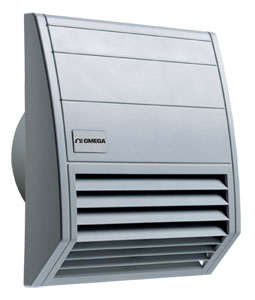

In addition to the easy mounting axial fan,
the self-adhesive seal of the mounting
frame prevents dust and water from
entering the cabinet. The functional design
of the intake and exhaust fan hoods very
effectively prevents direct infiltration of
falling water and dust. The design also
provides air channeling which makes the
filter fan particularly quiet in operation.
SPECIFICATIONS Air Flow Free Blowing: FF01803011: 300 m3/h (176 cfm) FF01805001: 550 m3/h (323 cfm) Air Flow with Exhaust Filter: FF0180301: 230 m3/h (135 cfm) FF01805001: 300 m3/h (176 cfm) Current Consumption 120V: FF0180301: 700 mA FF01805001: 780 mA Power Consumption 120V: FF0180301: 60 W FF01805001: 85 W Average Noise Level at 1 m (3') (DIN EN ISO 9614-2): FF0180301: 53 db (A) FF01805001: 65 db (A) Mounting Depth: FF0180301: 65 mm (2.6") FF01805001: 107 mm (4.2") Enclosure Cut-Out: 176 x 176 mm ±0.4 (6.9 x 6.9") Weight: FF0180301: 3.3 kg (7.3 lb) FF01805001: 2.7 kg (5.9 lb) Axial Fan: Ball bearing, aluminum frame, plastic impeller UL94V-0, operational life min 50,000 hrs at 25°C (77°F) (RH 65%); operating temperature -45 to 70°C (-49 to 158°F) 2 lead wires 102 mm (4") long with pressure clamps, type AWG 14 max Filter Fan and Exhaust Filter Housing: Plastic, UL94V-0, color light gray, UV resistant (rated F1), storage temperature -45 to 70°C (-49 to 158°F) Mounting Frame: With double sided industrial adhesive band for affixing to the outside of enclosure; certain operating circumstances may make the additional use of screws necessary Filter Material: Synthetic fiber with progressive construction, temperature resistant to 100°C (212°F), selfextinguishing class F1; moisture resistant to 100% RH. Can be cleaned by washing or vacuuming for reuse. Protection: Standard filter mats G4, IP54; using fine filter mats F5 increases the protection to IP55 but reduces the air volume
EXHAUST FILTER SPECIFICATIONS Filter Mat: Medium Grade 350 g/m2, filtering degree 94% for particle Ø<10 m, G4 (EN 779) Mounting Depth: 22 mm (0.9") Enclosure Cut-Out: 250 x 250 mm ±0.4 (9.8 x 9.8") Weight: 0.95 kg (2.1 lb) Dimensions: FF0180301: 300 m3/h (176 cfm) FF01805001: 550 m3/h (323 cfm)
