Fine Diameter 1/16" and 1.5mm RTD (PT100) Probes |
| PR-11, PR-13, PR-16, and PR-17 Series |
|
 |
|
|
|
|
|
¥
1,625.00
PR-11-2-100-1/16-12-E
|
| • |
Temperature Sensor is a Precision 100 Ohm Class A DIN Platinum Element
|
| • |
Fine Diameter 1/16" or 1.5 mm Probes
|
| • |
Four Probe Styles to Choose From:

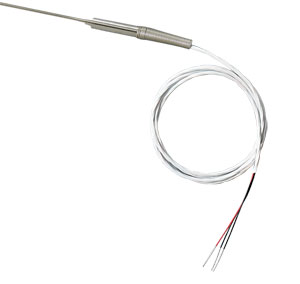

PR-11 Immersion Probe With Transiton
PR-13 Standard Sized Quick Disconnect Probe
PR-16 Hand-Held Probe
PR-17 Miniature Sized Quick Disconnect Probe
|
| • |
Four Sheath Lengths Readily Avaible in Standard Dimensions (6" 12", 18" 24") or Metric Dimensions (150mm, 300mm, 450mm, 600mm),
|
View related products - Thermocouples and RTDs
|
| |
|
|
|
 |
OMEGA's precision platinum pt100 RTD temperature probes are now available in 1/16" and 1.5 mm diameters for faster response times.
Note: Because of their smaller physical size, these temperature sensors are more fragile and should be handled with greater care than our larger diameter versions of the same probes. Avoid subjecting probes to bending, flexing or vibration.
|
|
|
|
|
|
† Price are shown in RMB.
Note:
Standard: Specify sheath length. Minimum sheath length for any style probe is 4". 1/16" dia RTD probes cannot be bent. For intermediate lengths, use next longer probe price. Over 24", consult Custom Engineering. Actual diameter of sheath is 0.064" ± 0.003".
Metric: Minimum sheath length for any style probe is 100 mm. 1.5 mm dia RTD probes cannot be bent. For intermediate lengths, use next longer probe price. Over 600 mm, consult Custom Engineering. Actual diameter of sheath is 1.5 mm ± 0.075 mm.
All: Available in lead type 2 (3-wire) and lead type 1 (2-wire); please see page C-13. Please contact Custom Engineering for 4-wire, type 3. Consult Sales Department for lead wire with stainless steel overbraid. To order additional lead length on the PR-11 style probes, consult Sales Department.
Ordering Example: (1) PR-17-2-100-1/16-6-E Quick disconnect probe with miniature connector, 1/16, ¥1,775.00
|
|
|
|
|
|
|
|
|
Part Number Builder |
|
|
|
|
|
|
|
|
Option Descriptions
|
|
(1)
|
RANGE
|
| |
Select
L for L=LOW (-50 to 250°C)
H for H=HIGH (-50 to 450°C)
E for E=EXTREME (-200 to 600°C)
|
(2)
|
NUMBER OF WIRES
|
| |
Select
2 for 2 WIRE
3 for 3 WIRE
4 for 4 WIRE
|
(3)
|
OHMS
|
| |
Select
100 for 100 OHMS
1000 for 1000 OHMS
|
(4)
|
SHEATH DIAMETER
|
| |
Select
1/8 for 1/8" DIAMETER
3/16 for 3/16" DIAMETER
1/4 for 1/4" DIAMETER
|
(5)
|
SHEATH LENGTH
|
| |
Select
2 for 2 INCHES
3 for 3 INCHES
4 for 4 INCHES
6 for 6 INCHES
8 for 8 INCHES
9 for 9 INCHES
10 for 10 INCHES
12 for 12 INCHES
15 for 15 INCHES
18 for 18 INCHES
24 for 24 INCHES
36 for 36 INCHES
|
(6)
|
COLD END TERMINATION
|
| |
Select
Nothing(leave field blank) for stripped leads
-RDXL6SD-CONN for connector for RDXL6SD datalogger
-TA3F for 3-pin DIN connector
-TA4F for 4-pin DIN connector
-HH804-CONNECTOR for DIN connector for use with HH-804 RTD meter
-LUG for Spade Lugs
-MTP for 3-pin mini connector
-OTP for 3-pin standard connector
|
|
NOTE: All combinations may not be valid, check spec sheet for valid part numbers.
|
| | | | |
|
|
|
|
|
|
| |
|
