In-line Flowmeters With Limit Switches |
| FL-6100B, FL-6300B, FL-6700B, FL-7600B and FL-7900B |
|
 |
|
|
In-line Flowmeters With Limit Switches
 |

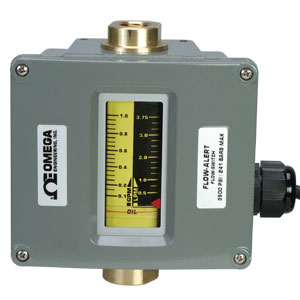

| Click for larger image. |
|
|
¥
5,050.00
FL-6101B
|
| • |
±2% Full Scale Accuracy
|
| • |
±1% Repeatability
|
| • |
Direct Readings for Oil, Water or Air
|
| • |
Built-in Limit Switch for Alarm and Control
|
| • |
Mounts in Any Direction
|
| • |
Easy Setpoint Adjustment
|
| • |
Splash-Proof Construction
|
| • |
Compact Size
|
| • |
1/2 or 3/4" FNPT Connections
|
View related products - Variable Area Flow Meters & Switches
|
| |
|
|
|
 |
OMEGA ® in-line flowmeters offer high accuracy flow rate indication for oil, water or
air and the ability to either control the flowrate or alarm on high or low flowrates.
These units feature an SPDT switch which can be triggered at any point along
the flow range.
SPECIFICATIONS
Switch: Micro SPDT 10 A @ 250 Vac
Cable: 0.8 m (34") cable
Max Temperature and Pressure:
Water/Oil: 116°C (240°F)/3500 psi
Air: 116°C (240°F)/1000 psi
Dimensions (D x W x Lay Length):
1/2 NPT: 102 x 72 x 168 mm (4 x 2.82 x 6.6")
3/4 NPT: 83 x 184 x 182 mm (3.3 x 7.3" x 7.2")
Wetted Parts:
Water Meters: C360 brass body, piston, and cone; T302 SS spring;
ceramic magnet
Oil Meters: 2024-T351 anodized aluminum body, piston, and cone;
T302 SS spring; ceramic magnet
Air Meters: 2024-T351 anodized aluminum body, piston, and cone;
T302 SS spring; ceramic magnet
Enclosure: NEMA 12 (IP65)
Relay: 10 A @ 250 Vac max; 0.5 A @ 125 Vdc max
|
|
|
|
|
|
† Price are shown in RMB.
Note: Comes complete with operator's manual.
For a 5-point NIST traceable cert, add suffix "-NIST" to the model number, add $385 to price.
Ordering Example: (1) FL-6101B oil flowmeter (0.876 sg), 1/2 NPT fittings, 0.1 to 1 GPM range, ¥5,050.00
|
|
|
|
|
| |
|
