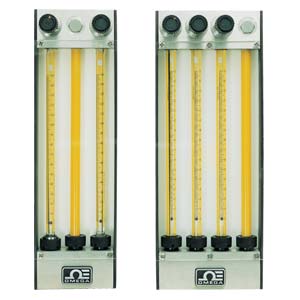

Multi-tube Variable Area Flow Meters/Gas Proportioning Variable Area Flow Meters

FL-1,2,3,4,5,6,7,8GP

FL-1,2,3,4,5,6,7,8GP:Multi-tube Variable Area Flow Meters/Gas Proportioning Variable Area Flow Meters

Click for larger image.

•	±2%FS Accuracy
•	Back Pressure Compensated for Accurate Blending
•	Blend Up To Three Gases
•	Save on Cost of Custom Gas Mixtures
•	Vary Concentrations With Operating System
•	For Use With 150 mm Flow Tubes
•	Bench Mount Tripod Base Optional
•	Standard 6-Turn Valves or Precision 16-Turn Valves Available
View related products - Variable Area Flow Meters & Switches

To blend two or three gases in homogeneous infinitely variable concentrations, directly at the end use point, these Variable Area Flow Meters are unsurpassed in convenience and economy. Gas proportioning Variable Area Flow Meters pay for themselves in a short period of time since their use eliminates the need for expensive custom blended gas mixtures from outside sources. This series of Variable Area Flow Meters lend flexibility and economy to the efficient utilization of component gas cylinders and piped in supply lines. Another significant advantage in laboratory use is the freedom to reproducibly increase or decrease concentrations during the course of an experiment.

The flowrates of component gases are not affected by downstream pressure variations as long as back pressures do not exceed or approach the input pressure.

150 mm Flowtube, Gas Flow Capacities of Routine Gases
Ranges in cc/min, flowtubes have 10:1 range

Model No.	Valve Type	End Fittings
Models for 2 Flow Tubes
*FL-1GP-()-()*	Standard	Aluminum
*FL-2GP-()-()*	Precision	Aluminum
*FL-3GP-()-()*	Standard	316 SS
*FL-4GP-()-()*	Precision	316 SS
Models for 3 Flow Tubes
*FL-5GP-()-()-()**	Standard	Aluminum
*FL-6GP-()-()-()**	Precision	Aluminum
*FL-7GP-()-()-()**	Standard	316 SS
*FL-8GP-()-()-()**	Precision	316 SS

*Specify flow tube and float from flowtube table at right.

Float Materials:
G = black glass
SA = sapphire
ST = 316 SS
C = carboloy

SPECIFICATIONS
Accuracy: ±2% FS, from 10% to 100% of scale
Repeatability: ±0.25% FS
Max Pressure: 200 psig
Scaled Pressure: 50 psig
Max Temperature: 250°F (180°F for water)
Flow Tube: Borosilicate glass
End Fittings: Black and anodized aluminum or 316 SS
Packing and O-Rings: Buna in aluminum models, FKM -A in 316 SS models
Side Panels: Black anodized aluminum
Connections: 1/8 FNPT

Tube No.	Air	Argon	CO₂	He	H₂	N₂	O₂
45G	83	67	97	73	169	85	74
45SA	127	104	146	117	267	131	114
45ST	242	200	265	241	535	249	218
45C	415	343	437	450	967	426	376
41G	191	161	203	195	399	197	166
41SA	270	229	279	302	662	283	246
41ST	460	383	478	573	1185	471	442
41C	743	625	702	1094	2013	771	719
61G	324	270	346	333	844	331	294
61SA	505	412	494	569	1209	467	460
61ST	825	687	771	1089	2432	833	764
61C	1275	1062	1132	1972	3732	1303	1175
02G	1086	855	934	1779	3110	1016	930
02SA	1324	1115	1168	2468	4289	1340	1228
02ST	2024	1717	1724	4083	6740	2034	1905
02C	2912	2472	2521	6927	9979	2997	2703
03G	2008	1697	1747	4214	6711	2039	1865
03SA	2590	2186	2264	5656	8995	2643	2503
03ST	3903	3274	3343	8669	14490	3731	3685
03C	5547	4697	4691	12717	19993	6169	5210
04G	5528	4794	4954	12540	18862	5801	5381
04SA	7240	6163	6217	15703	25235	7415	6826
04ST	10813	9077	9178	24629	38556	11044	10335
04C	15322	12904	12879	34709	55936	15433	14451
05G	9294	7705	7888	19830	30900	9419	8749
05SA	11647	9969	10042	26008	45263	11955	11137
05ST	17311	14489	14420	40831	60300	17525	16353
05C	24065	20744	20099	59702	86369	24549	22905
39G	19767	17978	17936	48193	73500	21676	19931
39SA	27514	23001	54010	63240	97000	27449	25800
39ST	38995	33778	33087	98676	142000	40086	36821
39C	55293	47151	45745	139847	200500	55930	52494
40G	49374	41899	40520	125617	182239	50258	46851
40SA	62480	53038	51220	159976	231239	63595	59304
40ST	89880	76322	73584	231946	333775	91478	85341
40C	123846	105182	101303	321265	460942	126041	117615

Order on www.omegaengineering.cn and 5% will be discounted when you checkout.

To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping

Part Number	Availability	Price(RMB)	Description	Qty.

Sample Configurations - Please consult Flow Engineering for Specific Models

FL-1GP-45G-45G		Consult sales	Two tubes, standard valve, aluminum end fittings; two 83 cc/min (air) tubes	qty.

FL-1GP-45G-45ST		Consult sales	Two tubes, standard valve, aluminum end fittings; one 83 cc/min (air) tube and one 242 cc/min (air) tube	qty.

FL-2GP-41G-41G	7 Weeks	¥6,050.00	Two tubes, precision valve, aluminum end fittings; two 191 cc/min (air) tubes	qty.

FL-2GP-45ST-45ST		Consult sales	Two tubes, precision valve, aluminum end fittings; two 242 cc/min (air) tubes	qty.

FL-4GP-03ST-03ST	2 Weeks	¥8,460.00	Two tubes, precision valve, 316 SS end fittings; two 3903 cc/min (air) tubes	qty.


Tri-pod mounting bases

FLTR-2	5 Weeks	¥665.00	Tripod base for even number of tubes configurations (Including mixing tube)	qty.

FLTR-3	5 Weeks	¥630.00	Tripod base for odd number of tubes configurations (Including mixing tube)	qty.

† Price are shown in RMB.

Note: Comes complete with correlation table for each tube and instruction sheet.

Select the desired 150mm flow tube from those listed, delete the FLT-prefix and insert the remaining suffix from the flow tube into the model numbers.

For NIST calibration, add suffix "-NIST AIR" to model number, add $225 per tube, per gas, per float to the price.

Ordering example: FL-5GP-61G-41SA-03C calls out a gas proportioner for three gasses with standard valves and aluminum end fittings with tubes FLT-61G, FLT-41SA, and FLT-03C installed, $394 + 78 + 78 + 78 = $628.00 U.S.

Part Number Builder

		(1)			(2)	(3)	(4)
F F L L	- -		G G P P	- -
Qty:

Option Descriptions

(1)

Valve Type and End Fittings

Select
1 for Valve Type Standard and End Fitting Aluminum for Two Tubes
2 for Valve Type Precision and End Fitting Aluminum for Two Tubes
3 for Valve Type Standard and End Fitting 316 SS for Two Tubes
4 for Valve Type Precision and End Fitting 316 SS for Two Tubes
5 for Valve Type Standard and End Fitting Aluminum for Three Tubes
6 for Valve Type Precision and End Fitting Aluminum for Three Tubes
7 for Valve Type Standard and End Fitting 316 SS for Three Tubes
8 for Valve Type Precision and End Fitting 316 SS for Three Tubes

(2)

Tube Number and Float (Only for 1GP 2GP 3GP and 4GP Models)

Select
Nothing(leave field blank) for None
45G for Tube Number 45 Float Black Glass
45SA for Tube Number 45 Float Red Sapphire
45ST for Tube Number 45 Float 316 SS
45C for Tube Number 45 Float Carboloy
45T for Tube Number 45 Float Tantalum
41G for Tube Number 41 Float Black Glass
41SA for Tube Number 41 Float Red Sapphire
41ST for Tube Number 41 Float 316 SS
41C for Tube Number 41 Float Carboloy
41T for Tube Number 41 Float Tantalum
61G for Tube Number 61 Float Black Glass
61C for Tube Number 61 Carboloy
61T for Tube Number 61 Tantalum
02G for Tube Number 02 Black Glass
02SA for Tube Number 02 Red Sapphire
02ST for Tube Number 02 316 SS
02C for Tube Number 02 Carboloy
02T for Tube Number 02 Tantalum
03G for Tube Number 03 Black Glass
03SA for Tube Number 03 Red Sapphire
03ST for Tube Number 03 316 SS
03C for Tube Number 03 Carboloy
03T for Tube Number 03 Tantalum
04G for Tube Number 04 Black Glass
04SA for Tube Number 04 Red Sapphire
04ST for Tube Number 04 316 SS
04C for Tube Number 04 Carboloy
04T for Tube Number 04 Tantalum
05G for Tube Number 05 Black Glass
05SA for Tube Number 05 Red Sapphire
05ST for Tube Number 05 316 SS
05C for Tube Number 05 Carboloy
05T for Tube Number 05 Tantalum
39G for Tube Number 39 Black Glass
39SA for Tube Number 39 Red Sapphire
39ST for Tube Number 39 316 SS
39C for Tube Number 39 Carboloy
39T for Tube Number 39 Tantalum
40G for Tube Number 40 Black Glass
40SA for Tube Number 40 Red Sapphire
40ST for Tube Number 40 316 SS
40C for Tube Number 40 Carboloy
40T for Tube Number 40 Tantalum

(3)

Tube Number and Float (Only for 1GP 2GP 3GP and 4GP Models)

(4)

Tube Number and Float (Only for 5GP 6GP 7GP and 8GP Models)

NOTE: All combinations may not be valid, check spec sheet for valid part numbers.
