Acrylic Flow Meters

FL-2000

Acrylic Flow meters

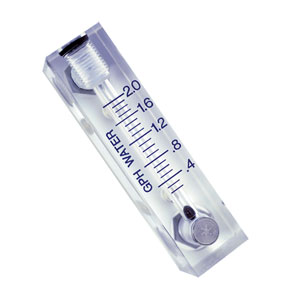

Click for larger image.

•	FEATURES:
•	Easy-to-Read English or Metric Scales
•	Water Ranges from 4 CCM to 20 GPM, Air Ranges from 40 CCM to 4000 LPM
•	Threaded Brass Inserts for Quick Installation
•	Easy Disassembly and Assembly for Maintenance
•	Durable One-Piece Clear Acrylic Construction
•	Stable, Easy-to-Read Float
•	Superior Quality
•	APPLICATIONS:
•	Air Sampling Equipment
•	Aquaculture
•	Desalinization Equipment
•	Gas Analyzers
•	Medical Systems
•	Photo Processing Equipment
•	Water Treatment and Distribution Systems
View related products - Variable Area Flow Meters

Find how a Variable Area Flow Meter works on this link.

NOT ALL MODELS ARE STANDARD WITH VALVES, VERIFY MODEL DESCRIPTION TO CONFIRM

The FL-2000 Series offers a wide variety of precision water and air variable area flow meters for use in medical, industrial, chemical, and laboratory applications at an economical price. Units are available with or without valves.

SPECIFICATIONS
Accuracy:
    Models FL-2001–FL-2025: ±5% F.S.
    Models FL-2031–FL-2069: ±3% F.S.
    Models FL-2071–FL-2128: ±2% F.S.
Float: Black glass stainless steel
Body: Clear acrylic
Seals: Buna O-Rings with brass or PVC fittings FKM O-Rings with stainless steel fittings
Pressure: 100 psig max @ 21°C (70°F)
Temperature: 65°C (150°F) max @ 0 psig
Fittings: Brass std; stainless steel optional except for FL-2071 through FL-2128, which have 1 NPT PVC fittings only
Valves:
    Models FL-2001 through FL-2069: brass standard; stainless steel cartridge type (optional)
              FL-2071 through FL-2128: optional plastic in-line gate

Variable Area Flow Meters for Air (Models with others engineering units available)
Panel Mount 5% Accurancy		Panel Mount 3% Accurancy		Panel Mount 2% Accurancy
FL-2010	0.04 - 0.5 LPM	FL-2038	100 - 1000 CCM	FL-2074	100 - 700 LPM
FL-2011	0.1 - 1.0 LPM	FL-2039	0.4 - 5 LPM	FL-2075	100 - 1400 LPM
FL-2012	0.2 - 2.5 LPM	FL-2040	1 - 10 LPM	FL-2076	400 - 3400 LPM
FL-2013	0.4 - 5.0 LPM	FL-2041	2 - 20 LPM	In-Line 2% Accurancy
FL-2014	1 -10 LPM	FL-2042	3 - 30 LPM	In-Line 2% Accurancy
FL-2015	2 -25 LPM	FL-2043	4 - 50 LPM	FL-2094	100 - 700 LPM
FL-2016	6 -50 LPM	FL-2044	10 - 100 LPM	FL-2095	100 - 1400 LPM
FL-2017	10 -100 LPM	FL-2063	14-140 LPM	FL-2096	400 - 4000 LPM
		FL-2064	30-300 LPM
		FL-2065	100-560 LPM

To order Stainless Steel valve, add suffix "-SS" to model number. Consult Flow Engineering for price.
To order witout a valve, add suffix "-NV" to model. Consult Flow Engineering for price.

Variable Area Flow Meters for water (Models with others engineering units available)
Panel Mount 3% Accurancy		Panel Mount 5% Accurancy		In-Line 2% Accurancy
FL-2045	4 - 50 CCM	FL-2018	5 - 50 CCM	FL-2126	1 - 19 LPM
FL-2046	10 - 120 CCM	FL-2019	10 - 100 CCM	FL-2127	4 - 36 LPM
FL-2047	25 - 225 CCM	FL-2020	20 - 240 CCM	FL-2128	5 - 75 LPM
FL-2048	40 - 400 CCM	Panel Mount 2% Accurancy
FL-2049	40 - 660 CCM	Panel Mount 2% Accurancy
FL-2050	100 - 1500 CCM	FL-2080	1 - 19 LPM
FL-2051	200 - 3000 CCM	FL-2081	4 - 36 LPM
FL-2052	300 - 3700 CCM	FL-2082	5 - 75 LPM
FL-2068	0.8-9 LPM
FL-2069	1.5-20 LPM

To order Stainless Steel valve, add suffix "-SS" to model number. Consult Flow Engineering for price.
To order witout a valve, add suffix "-NV" to model. Consult Flow Engineering for price.

Order on www.omegaengineering.cn and 5% will be discounted when you checkout.

To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping

Part Number	Availability	Price(RMB)	Description	Qty.

±5% FULL SCALE PANEL MOUNT - RANGE SCFH OF AIR

FL-2001		Consult sales	0.1 to 1 SCFH of Air, with valve	qty.

FL-2001-NV		Consult sales	0.1 to 1 SCFH of Air, No Valve	qty.

FL-2001-SS	2 Weeks	¥1,005.00	0.1 to 1 SCFH of Air, with valve, Stainless Steel	qty.

FL-2002		Consult sales	0.2 to 2.0 SCFH of Air, with valve	qty.

FL-2002-NV		Consult sales	0.2 to 2.0 SCFH of Air, No Valve	qty.

FL-2002-SS		Consult sales	0.2 to 2.0 SCFH of Air, with valve, Stainless Steel	qty.

FL-2003	2 Weeks	¥725.00	0.4 to 5.0 SCFH of Air, with valve	qty.

FL-2003-NV	2 Weeks	¥645.00	0.4 to 5.0 SCFH of Air, No Valve	qty.

FL-2003-SS		Consult sales	0.4 to 5.0 SCFH of Air, with valve Stainless Steel	qty.

FL-2004		Consult sales	0.5 to 10 SCFH of Air, with valve	qty.

FL-2004-NV		Consult sales	0.5 to 10 SCFH of Air, No Valve	qty.

FL-2004-SS		Consult sales	0.5 to10 SCFH of Air, with valve, Stainless Steel	qty.

FL-2007		Consult sales	4.0 to 50 SCFH of Air, with valve	qty.

FL-2007-NV		Consult sales	4.0 to 50 SCFH of Air, No Valve	qty.

FL-2007-SS		Consult sales	4.0 to 50 SCFH of Air, with valve, Stainless Steel	qty.

FL-2008		Consult sales	10 to 100 SCFH of Air, with valve	qty.

FL-2008-NV		Consult sales	10 to 100 SCFH of Air, No Valve	qty.

FL-2008-SS		Consult sales	10 to 100 SCFH of Air, with valve, Stainless Steel	qty.

FL-2009		¥765.00	20 to 200 SCFH of Air, with valve	qty.

FL-2009-NV		Consult sales	20 to 200 SCFH of Air, No Valve	qty.

FL-2009-SS		Consult sales	20 to 200 SCFH of Air, with valve, Stainless Steel	qty.


±5% FULL SCALE PANEL MOUNT - RANGE LPM OF AIR

FL-2010		¥765.00	0.04 to 0.5 LPM of Air, with valve	qty.

FL-2010-NV		Consult sales	0.04 to 0.5 LPM of Air, No Valve	qty.

FL-2010-SS		Consult sales	0.04 to 0.5 LPM of Air, with valve, Stainless Steel	qty.

FL-2011	101 Weeks	¥725.00	0.1 to 1.0 LPM of Air, with valve	qty.

FL-2011-NV		Consult sales	0.1 to 1.0 LPM of Air, No Valve	qty.

FL-2011-NV-SS	2 Weeks	¥1,030.00	0.1 TO 1.0 LPM of Air, No Valve, Stainless Steel Cartridge	qty.

FL-2011-SS		Consult sales	0.1 to 1.0 LPM of Air, with valve, Stainless Steel	qty.

FL-2012	101 Weeks	¥725.00	0.2 to 2.5 LPM of Air, with valve	qty.

FL-2012-NV	101 Weeks	¥645.00	0.2 to 2.5 LPM of Air, No Valve	qty.

FL-2012-NV-SS	2 Weeks	¥975.00	0.2 to 2.5 LPM of Air, No Valve, Stainless Steel Cartridge	qty.

FL-2012-SS	101 Weeks	¥1,005.00	0.2 to 2.5 LPM of Air, with valve, Stainless Steel	qty.

FL-2013	2 Weeks	¥725.00	0.4 to 5 LPM of Air, with valve	qty.

FL-2013-NV	101 Weeks	¥610.00	0.4 to 5 LPM of Air, No Valve	qty.

FL-2013-SS	101 Weeks	¥1,005.00	0.4 to 5 LPM of Air, with valve, Stainless Steel	qty.

FL-2014		¥725.00	1.0 TO 10 LPM of Air, with valve	qty.

FL-2014-NV	2 Weeks	¥645.00	1.0 to 10 LPM of Air, No Valve	qty.

FL-2014-SS	101 Weeks	¥1,005.00	1.0 to 10 LPM of Air, with valve, Stainless Steel	qty.

FL-2015	2 Weeks	¥765.00	2.0 to 25 LPM of Air, with valve	qty.

FL-2015-NV		Consult sales	2.0 to 25 LPM of Air, No Valve	qty.

FL-2015-SS		Consult sales	2.0 to 25 LPM of Air, with valve, Stainless Steel	qty.

FL-2016	2 Weeks	¥765.00	6.0 to 50 LPM of Air, with valve	qty.

FL-2016-NV		Consult sales	4.0 to 50 LPM of Air, No Valve	qty.

FL-2016-NV-SS		Consult sales	4.0 to 50 LPM of Air, No Valve, Stainless Steel Cartridge	qty.

FL-2016-SS		Consult sales	4.0 to 50 LPM of Air, with valve, Stainless Steel	qty.

FL-2017	2 Weeks	¥765.00	10 to 100 LPM of Air, with valve	qty.

FL-2017-NV		Consult sales	10 to 100 LPM of Air, No Valve	qty.

FL-2017-SS		Consult sales	10 to 100 LPM of Air, with valve, Stainless Steel	qty.


±5% FULL SCALE PANEL MOUNT - RANGE SCCM OF WATER

FL-2019	101 Weeks	¥765.00	10 to 100 SCCM of Water, with valve	qty.

FL-2019-NV		Consult sales	10 to 100 SCCM of Water, No Valve	qty.

FL-2019-SS		Consult sales	10 to 100 SCCM of Water, with valve, Stainless Steel	qty.

FL-2020		Consult sales	20 to 240 SCCM of Water, with valve	qty.

FL-2020-NV		Consult sales	20 to 240 SCCM of Water, No Valve	qty.

FL-2020-SS	101 Weeks	¥985.00	20 to 240 SCCM of Water, with valve, Stainless Steel	qty.


±5% FULL SCALE PANEL MOUNT - RANGE GPH OF WATER

Fl-2021		Consult sales	0.2 to 2.0 GPH of Water, with valve	qty.

FL-2021-NV		Consult sales	0.2 to 2.0 GPH of Water, No Valve	qty.

FL-2021-NV-SS		Consult sales	0.2 to 2.0 GPH of Water, No Valve, Stainless Steel Cartridge	qty.

FL-2021-SS		Consult sales	0.2 to 2.0 GPH of Water, with valve, Stainless Steel	qty.

FL-2022		Consult sales	0.4 to 5 GPH of Water, with valve	qty.

FL-2022-NV		Consult sales	0.4 to 5 GPH of Water, No Valve	qty.

FL-2022-SS		Consult sales	0.4 to 5 GPH of Water, with valve, Stainless Steel	qty.

FL-2023		Consult sales	1.0 to 10 GPH of Water, with valve	qty.

FL-2023-NV		Consult sales	1.0 to 10 GPH of Water, No Valve	qty.

FL-2023-NV-SS		Consult sales	1.0 to 10 GPH of Water, No Valve, Stainless Steel Cartridge	qty.

FL-2023-SS	2 Weeks	¥1,005.00	1.0 to 10 GPH of Water, with valve, Stainless Steel	qty.

FL-2024		Consult sales	2 to 20 GPH of Water, with valve	qty.

FL-2024-NV		Consult sales	2 to 20 GPH of Water, No Valve	qty.

FL-2024-NV-SS		Consult sales	2 to 20 GPH of Water, No Valve, Stainless Steel Cartridge	qty.

FL-2024-SS		Consult sales	2 to 20 GPH of Water, with valve, Stainless Steel	qty.

FL-2025		Consult sales	4 to 40 GPH of Water, with valve	qty.

FL-2025-NV		Consult sales	4 to 40 GPH of Water, No Valve	qty.

FL-2025-NV-SS		Consult sales	4 to 40 GPH of Water, No Valve, Stainless Steel Cartridge	qty.

FL-2025-SS		Consult sales	4 to 40 GPH of Water, with valve, Stainless Steel	qty.


±3% FULL SCALE PANEL MOUNT - RANGE SCFH OF AIR

FL-2031	2 Weeks	¥990.00	0.4 to 5 SCFH of Air, with valve	qty.

FL-2031-NV	101 Weeks	¥850.00	0.4 to 5 SCFH of Air, No Valve	qty.

FL-2031-SS		Consult sales	0.4 to 5 SCFH of Air, with valve, Stainless Steel	qty.

FL-2032		Consult sales	1 to 10 SCFH of Air, with valve	qty.

FL-2032-NV		Consult sales	1 to 10 SCFH of Air, No Valve	qty.

FL-2032-SS		Consult sales	1 to 10 SCFH of Air, with valve, Stainless Steel	qty.

FL-2034		Consult sales	4 to 40 SCFH of Air, with valve	qty.

FL-2034-NV		Consult sales	4 to 40 SCFH of Air, No Valve	qty.

FL-2034-SS		Consult sales	4 to 40 SCFH of Air, with valve, Stainless Steel	qty.

FL-2035		Consult sales	10 to 100 SCFH of Air, with valve	qty.

FL-2035-NV		Consult sales	10 to 100 SCFH of Air, No Valve	qty.

FL-2035-SS		¥1,190.00	10 to 100 SCFH of Air, with valve, Stainless Steel	qty.

FL-2037		Consult sales	20 to 200 SCFH of Air, with valve	qty.

FL-2037-NV		Consult sales	20 to 200 SCFH of Air, No Valve	qty.

FL-2037-SS		Consult sales	20 to 200 SCFH of Air, with valve, Stainless Steel	qty.


±3% FULL SCALE PANEL MOUNT - RANGE CCM OF AIR

FL-2038		Consult sales	100 to 1000 CCM of Air, with valve	qty.

FL-2038-NV		Consult sales	100 to 1000 CCM of Air, No Valve	qty.

FL-2038-SS		Consult sales	100 to 1000 CCM of Air, with valve, Stainless Steel	qty.


±3% FULL SCALE PANEL MOUNT - RANGE LPM OF AIR

FL-2039	2 Weeks	¥935.00	0.4 to 5 LPM of Air, with valve	qty.

FL-2039-NV	101 Weeks	¥865.00	0.4 to 5 LPM of Air, No Valve	qty.

FL-2039-SS		Consult sales	0.4 to 5 LPM of Air, with valve, Stainless Steel	qty.

FL-2040	101 Weeks	¥935.00	1 to 10 LPM of Air, with valve	qty.

FL-2040-NV	101 Weeks	¥865.00	1 to 10 LPM of Air, No Valve	qty.

FL-2040-SS	101 Weeks	¥1,190.00	1 to 10 LPM of Air, with valve, Stainless Steel	qty.

FL-2041		Consult sales	2 to 20 LPM of Air, with valve	qty.

FL-2041-NV	101 Weeks	¥865.00	2 to 20 LPM of Air, No Valve	qty.

FL-2041-NV-SS	101 Weeks	¥1,095.00	2 to 20 LPM of Air, No Valve, Stainless Steel Cartridge	qty.

FL-2041-SS	101 Weeks	¥1,165.00	2 to 20 LPM of Air, with valve, Stainless Steel	qty.

FL-2042		Consult sales	3 to 30 LPM of Air, with valve	qty.

FL-2042-NV		Consult sales	3 to 30 LPM of Air, No Valve	qty.

FL-2042-SS		Consult sales	3 to 30 LPM of Air, with valve, Stainless Steel	qty.

FL-2043		Consult sales	4 to 50 LPM of Air, with valve	qty.

FL-2043-NV		Consult sales	4 to 50 LPM of Air, No Valve	qty.

FL-2043-SS		Consult sales	4 to 50 LPM of Air, with valve, Stainless Steel	qty.

FL-2044	101 Weeks	¥990.00	10 to 100 LPM of Air, with valve	qty.

FL-2044-NV	2 Weeks	¥865.00	10 to 100 LPM of Air, No Valve	qty.

FL-2044-NV-SS		Consult sales	10 to 100 LPM of Air, No Valve, Stainless Steel Cartridge	qty.

FL-2044-SS		Consult sales	10 to 100 LPM of Air, with valve, Stainless Steel	qty.


±3% FULL SCALE PANEL MOUNT - RANGE CCM OF WATER

FL-2045		Consult sales	4 to 50 CCM of Water, with valve	qty.

FL-2045-NV		Consult sales	4 to 50 CCM of Water, No Valve	qty.

FL-2045-SS		Consult sales	4 to 50 CCM of Water, with valve, Stainless Steel	qty.

FL-2047	2 Weeks	¥990.00	25 to 225 CCM of Water, with valve	qty.

FL-2047-NV	101 Weeks	¥850.00	25 to 225 CCM of Water, No Valve	qty.

FL-2047-SS		Consult sales	25 to 225 CCM of Water, with valve, Stainless Steel	qty.

FL-2048		Consult sales	40 to 400 CCM of Water, with valve	qty.

FL-2048-NV	101 Weeks	¥865.00	40 to 400 CCM of Water, No Valve	qty.

FL-2048-SS	101 Weeks	¥1,125.00	40 to 400 CCM of Water, with valve, Stainless Steel	qty.

FL-2049	2 Weeks	¥990.00	40 to 660 CCM of Water, with valve	qty.

FL-2049-NV		Consult sales	40 to 660 CCM of Water, No Valve	qty.

FL-2049-SS		Consult sales	40 to 660 CCM of Water, with valve, Stainless Steel	qty.

FL-2050		Consult sales	100 to 1500 CCM of Water, with valve	qty.

FL-2050-NV		Consult sales	100 to 1500 CCM of Water, No Valve	qty.

FL-2050-NV-SS		Consult sales	100 to 1500 CCM of Water, No Valve, Stainless Steel Cartridge	qty.

FL-2050-SS		Consult sales	100 to 1500 CCM of Water, with valve, Stainless Steel	qty.

FL-2051	2 Weeks	¥990.00	200 to 3000 CCM of Water, with valve	qty.

FL-2051-NV		Consult sales	200 to 3000 CCM of Water, No Valve	qty.

FL-2051-NV-SS		Consult sales	200 to 3000 CCM of Water, No Valve, Stainless Steel Cartridge	qty.

FL-2051-SS		Consult sales	200 to 3000 CCM of Water, with valve, Stainless Steel	qty.

FL-2052	101 Weeks	¥990.00	300 to 3700 CCM of Water, with valve	qty.

FL-2052-NV		Consult sales	300 to 3700 CCM of Water, No Valve	qty.

FL-2052-SS		Consult sales	300 to 3700 CCM of Water, with valve, Stainless Steel	qty.


±3% FULL SCALE PANEL MOUNT - RANGE GPH OF WATER

FL-2053		Consult sales	1 to 10 GPH of Water, with valve	qty.

FL-2053-NV		Consult sales	1 to 10 GPH of Water, No Valve	qty.

FL-2053-SS		Consult sales	1 to 10 GPH of Water, with valve, Stainless Steel	qty.

FL-2054		Consult sales	2 to 25 GPH of Water, with valve	qty.

FL-2054-NV		Consult sales	2 to 25 GPH of Water, No Valve	qty.

FL-2054-SS		Consult sales	2 to 25 GPH of Water, with valve, Stainless Steel	qty.

FL-2056		Consult sales	6 to 60 GPH of Water, with valve	qty.

FL-2056-NV		Consult sales	6 to 60 GPH of Water, No Valve	qty.

FL-2056-SS		Consult sales	6 to 60 GPH of Water, with valve, Stainless Steel	qty.


±3% FULL SCALE PANEL MOUNT - RANGE SCFM OF AIR

FL-2057		Consult sales	0.3 to 3 SCFM of Air, with valve	qty.

FL-2057-SS		Consult sales	0.3 to 3 SCFM of Air, with valve, Stainless Steel	qty.

FL-2057-NV		Consult sales	0.3 to 3 SCFM of Air, No Valve	qty.

FL-2060	2 Weeks	¥1,625.00	0.5 to 5 SCFM of Air, with valve	qty.

FL-2060-NV		Consult sales	0.5 to 5 SCFM of Air, No Valve	qty.

FL-2060-SS		Consult sales	0.5 to 5SCFM of Air, with valve, Stainless Steel	qty.

FL-2061	2 Weeks	¥1,625.00	1 to 10 SCFM of Air, with valve	qty.

FL-2061-NV		Consult sales	1 to 10 SCFM of Air, No Valve	qty.

FL-2061-SS	2 Weeks	¥1,930.00	1 to 10 SCFM of Air, with valve, Stainless Steel	qty.

FL-2062		Consult sales	4 to 20 SCFM of Air, with valve	qty.

FL-2062-NV		Consult sales	4 to 20 SCFM of Air, No Valve	qty.


±3% FULL SCALE PANEL MOUNT - RANGE LPM OF AIR

FL-2063		Consult sales	14 to 140 LPM of Air, with valve	qty.

FL-2063-NV	2 Weeks	¥1,415.00	14 to 140 LPM of Air, No Valve	qty.

FL-2063-SS	101 Weeks	¥1,895.00	14 to 140 LPM of Air, with valve, Stainless Steel	qty.

FL-2064	2 Weeks	¥1,540.00	30 to 300 LPM of Air, with valve	qty.

FL-2064-NV	2 Weeks	¥1,280.00	30 to 300 LPM of Air, No Valve	qty.

FL-2064-SS		Consult sales	30 to 300 LPM of Air, with valve, Stainless Steel	qty.

FL-2065		Consult sales	100 to 560 LPM of Air, with valve	qty.

FL-2065-NV		Consult sales	100 to 560 LPM of Air, No Valve	qty.


±3% FULL SCALE PANEL MOUNT - RANGE GPM OF WATER

FL-2066	101 Weeks	¥1,650.00	0.25 to 2.5 GPM of Water, with valve	qty.

FL-2066-NV		Consult sales	0.25 to 2.5 GPM of Water, No Valve	qty.

FL-2066-SS		Consult sales	0.2 to 2.5 GPM of Water, with valve, Stainless Steel	qty.

FL-2067		Consult sales	0.4 to 5 GPM of Water, with valve	qty.

FL-2067-NV		Consult sales	0.4 to 5 GPM of Water, No Valve	qty.

FL-2067-SS		Consult sales	0.4 to 5 GPM of Water, with valve, Stainless Steel	qty.


±3% FULL SCALE PANEL MOUNT - RANGE LPM OF WATER

FL-2068		Consult sales	1 to 10 LPM of Water, with valve	qty.

FL-2068-NV		Consult sales	1 to 10 LPM of Water, No Valve	qty.

FL-2068-SS		Consult sales	1 to 10 LPM of Water, with valve, Stainless Steel	qty.

FL-2069		Consult sales	2 to 20 LPM of Water, with valve	qty.

FL-2069-NV		Consult sales	2 to 20 LPM of Water, No Valve	qty.

FL-2069-SS		Consult sales	2 to 20 LPM of Water, with valve, Stainless Steel	qty.


±2% FULL SCALE PANEL MOUNT - RANGE SCFM OF AIR

FL-2071		Consult sales	3 to 25 SCFM of Air, no valve	qty.

FL-2071-V	2 Weeks	¥3,520.00	3 to 25 SCFM of Air, with plastic integral gate valve	qty.

FL-2072		Consult sales	4 to 50 SCFM of Air, no valve	qty.

FL-2072-V		Consult sales	4 to 50 SCFM of Air, with plastic integral gate valve	qty.

FL-2073		Consult sales	10 to 100 SCFM of Air, no valve	qty.

FL-2073-V		Consult sales	10 to 100 SCFM of Air, with plastic integral gate valve	qty.


±2% FULL SCALE PANEL MOUNT - RANGE LPM OF AIR

FL-2074	101 Weeks	¥2,645.00	100 to 700 LPM of Air, no valve	qty.

FL-2074-V	2 Weeks	¥3,520.00	100 to 700 LPM of Air, with plastic integral gate valve	qty.

FL-2075		Consult sales	100 to 1400 LPM of Air, no valve	qty.

FL-2075-V		Consult sales	100 to 1400 LPM of Air, with plastic integral gate valve	qty.

FL-2076		Consult sales	400 to 3400 LPM of Air, no valve	qty.

FL-2076-V		Consult sales	400 to 3400 LPM of Air, with plastic integral gate valve	qty.


±2% FULL SCALE PANEL MOUNT - RANGE GPM OF WATER

FL-2077		Consult sales	0.6 to 5 GPM of Water, no valve	qty.

FL-2077-V		Consult sales	0.6 to 5 GPM of Water, with plastic integral gate valve	qty.

FL-2078		Consult sales	1 to 10 GPM of Water, no valve	qty.

FL-2078-V		Consult sales	1 to 10 GPM of Water, with plastic integral gate valve	qty.

FL-2079		Consult sales	2 to 20 GPM of Water, no valve	qty.

FL-2079-V		Consult sales	2 to 20 GPM of Water, with plastic integral gate valve	qty.


±2% FULL SCALE PANEL MOUNT - RANGE LPM OF WATER

FL-2080	2 Weeks	¥2,645.00	2 to 19 LPM of Water, no valve	qty.

FL-2080-V		Consult sales	2 to 19 LPM of Water, with plastic integral gate valve	qty.

FL-2081		Consult sales	4 to 36 LPM of Water, no valve	qty.

FL-2081-V		Consult sales	4 to 36 LPM of Water, with plastic integral gate valve	qty.

FL-2082		Consult sales	5 to 75 LPM of Water, no valve	qty.

FL-2082-V		Consult sales	5 to 75 LPM of Water, with plastic integral gate valve	qty.


±2% FULL SCALE IN-LINE - RANGE SCFM OF AIR

FL-2091		Consult sales	3 to 25 SCFM of Air, no valve	qty.

FL-2092		Consult sales	4 to 50 SCFM of Air, no valve	qty.

FL-2093		Consult sales	10 to 100 SCFM of Air, no valve	qty.


±2% FULL SCALE IN-LINE - RANGE LPM OF AIR

FL-2094		Consult sales	100 to 700 LPM of Air, no valve	qty.

FL-2095		Consult sales	100 to 1400 LPM of Air, no valve	qty.

FL-2096	2 Weeks	¥2,380.00	400 to 4000 LPM of Air, no valve	qty.


±2% FULL SCALE IN-LINE - RANGE GPM OF WATER

FL-2097	2 Weeks	¥2,445.00	0.4 to 5 GPM of Water, no valve	qty.

FL-2098	2 Weeks	¥2,345.00	1 to 10 GPM of Water, no valve	qty.

FL-2099	2 Weeks	¥2,345.00	2 to 20 GPM of Water, no valve	qty.


±2% FULL SCALE IN-LINE - RANGE LPM OF WATER

FL-2126		Consult sales	1 to 19 LPM of Water, no valve	qty.

FL-2127		Consult sales	4 to 36 LPM of Water, no valve	qty.

FL-2128		Consult sales	5 to 75 LPM of Water, no valve	qty.

† Price are shown in RMB.

Note: NOT ALL MODELS ARE STANDARD WITH VALVES, VERIFY MODEL DESCRIPTION TO CONFIRM

Comes complete with operator's manual.

NIST certificate is not available for the FL-2000 Series.

Models FL-2001 through FL-2069: brass standard; stainless steel cartridge type optional)
FL-2071 through FL-2128: optional plastic in-line gate.

To order Models FL-2001 through FL-2069 without a valve and with stainless steel fittings, add suffix "-NV-SS" to model number, consult Flow Engineering for price.

Related Links - Manual

Product Manual
Download FL-2000 - FL-2069 Series - Acrylic Flowmeter
Download FL-2071 - FL-2128 Series - Flowmeters

Keywords:Acrylic Flowmeters, variable area flow meter, flowmeter, flow meter, flow measurement, air fow, liquid flow, water flow meter, liquid flow sensor, water flow sensors, water flow measurement, gpm flow meters, gas flow meters , convection heaters plc modbus

Americas

Europe

Asia/Pacific

Acrylic Flow Meters
