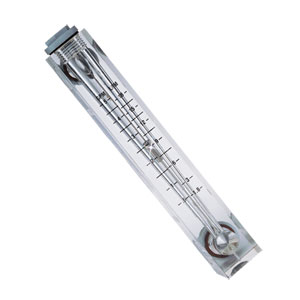

FL50000A Series flowmeters feature a rugged, one-piece acrylic body, stainless
steel internal parts, rear inlet and outlet ports for panel mounting, and excellent accuracy. The stainless
steel float guide helps reduce float oscillation and improve overall performance. Permanent screenprinted
scales are positioned directly in front of the float for easy reading. For greater versatility and control,
FL5000A Series meters may be ordered with an integral flow adjustment valve.
SPECIFICATIONS Accuracy: ±5% of FS Meter Body Construction: Machined acrylic O-Ring Material: FKM Float: 316 SS Lock Nut: Polypropylene Temperature Limits: 48°C (120°F) at 0 psi (3/4 and 1 MNPT units) 93°C (200°F) at 0 psi (1/4, 1/2 and 3/8 MNPT units) Pressure Limits: 120 psi at 21°C (70°F) (3/4 and 1 MNPT units) 250 psig at 21°C (70°F) (1/4, 1/2 and 3/8 MNPT units) Pressure Drop: 2 psi max Adaptor: 1/4" and 1" are PVC, all others are glass-filled polypropylene Dimensions Without Valve (Center to Center x Overall Height x Width): FL50001: 143 x 191 x 25 mm (5-5/8 x 7-1/4 x 11/16") FL50002 to FL50004: 165 x 227 x 32 mm (6-1/2 x 8-3/8 x 1-9/32") FL50005: 165 x 229 x 38 mm (6-1/2 x 9 x 1-1/2") FL50006 to FL50007: 203 x 276 x 44 mm (8 x 10-5/8 x 1-3/4")
† Price are shown in RMB.
Note: Comes complete with operator’s manual.
*For optional 5-point NIST calibration of Water Units, add suffix "-NIST" to the model number; add $375 to the price and two weeks to the delivery.
(OPTIONS SHOWN IN THIS "NOTE" ABOVE ARE PRICED IN US$)
