In-line Flowmeters for water and wastewater treatment
FL-500WW
1 year warranty

In-line Flowmeters

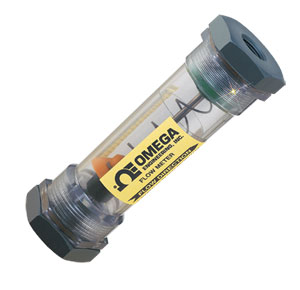

FL-500WW:In-line Flowmeters for water and wastewater treatment
Click for larger image.

¥ 3,100.00  FL-505WW
• Direct Flow Indication
• PVC Body and End Fittings
• Titanium Shaft and Spring
• Easily Mounted in Any Pipe Orientation Typical Applications:
• Aluminum Sulfate (Alum) -Clarification
• Chlorinated Water -Disinfection
• Ferric Chloride -Clarification
• Potassium Permanganate -Disinfection
• Sodium Bisulfite -Disinfection
• Sodium Hypochlorite (Bleach) -Disinfection
• Sodium Hydroxide -Neutralization
• Sulfur Dioxide (in Water) -Dechlorination
• Chlorine Dioxide -Disinfection

View related products - Variable Area Flow Meters & Switches

Click to scroll below to order See Specs PDF Manuals Related Items View a printer friendly page

The FL-500WW Series provides flowrate indication for 1 to 5% dilute aqueous chemical solutions used in the treatment of water and wastewater.
Specifications:
Model No. End
Fittings		 Dual Scales Diameter: Length:
GPM LPM
FL-505WW 1 FNPT 0.5 to 5 2 to 20 50.8 mm (2") 177.8 mm (7")
FL-510WW 1 FNPT 1 to 10 4 to 38
FL-515WW 1 FNPT 1.5 to 15 6 to 55
FL-520WW 1½ FNPT 2 to 20 8 to 75 76.2 mm (3") 177.8 mm (7")
FL-530WW 1½ FNPT 3 to 30 11 to 110
FL-540WW 1½ FNPT 4 to 40 15 to 150
FL-550WW 1½ FNPT 5 to 50 20 to 200
Order on www.omegaengineering.cn and 5% will be discounted when you checkout.
  To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping
 Part Number   Availability   Price(RMB)   Description    Qty.
 FL-505WW 15 Weeks   ¥3,100.00    1 NPT, 0.5 to 5 GPM In-line flowmeter
 FL-510WW 15 Weeks   ¥3,100.00    1 NPT, 1 to 10 GPM In-line flowmeter
 FL-510WW-BSPT 15 Weeks   ¥3,100.00    1 BSPT, 1 to 10 GPM In-line flowmeter
 FL-515WW 15 Weeks   ¥3,100.00    1 NPT, 1.5 to 15 GPM In-line flowmeter
 FL-515WW-BSPT 15 Weeks   ¥3,100.00    1 BSPT, 1.5 to 15 GPM In-line flowmeter
 FL-520WW 15 Weeks   ¥4,115.00    1½ NPT, 2 to 20 GPM In-line flowmeter
 FL-530WW 15 Weeks   ¥4,350.00    1½ NPT, 3 to 30 GPM In-line flowmeter
 FL-540WW 15 Weeks   ¥5,030.00    1½ NPT, 4 to 40 GPM In-line flowmeter
 FL-550WW 6 Weeks   ¥4,350.00    1½ NPT, 5 to 50 GPM In-line flowmeter
 Accessory Switch Kits (rated: 8 W, 100 Vdc/120Vac)
 FL-500-S1 15 Weeks   ¥1,620.00    FOR FLOWMETERS: FL-505, FL-510, FL-515
 FL-500-S2 2 Weeks   ¥2,175.00    FOR FLOWMETERS: FL-520, FL-530, FL-540, FL-550
† Price are shown in RMB.

 Note: Comes complete with operator's manual.

For NIST traceable certificate add suffix, "-NIST" to model number, add $250. to price.


  Ordering Example: (1) FL-500-S1 SWITCH KIT, ¥1,620.00,  plus (1) FL-515WW 1" flowmeter, 1.5 to 15 GPM, ¥3,100.00, ¥1,620.00 + 3,100.00 = $4,720.00
