Economical In-line Flowmeters |
| FL-6400 |
|
 |
|
|
|
|
|
¥
8,565.00
FL-6402A-316
|
| • |
±2% Full Scale Accuracy
|
| • |
±1% Repeatability
|
| • |
Direct Reading Scale for Water
|
| • |
For Corrosive Fluids
|
| • |
For High Pressure Systems
|
| • |
Mounts in Any Position
|
| • |
Vertical Connections for In-Line Mounting
|
| • |
High Viscosity Immunity
|
| • |
116°C (240°F) Standard, 204°C (400°F) Optional
|
View related products - Variable Area Flow Meters & Switches
|
| |
|
|
|
 |

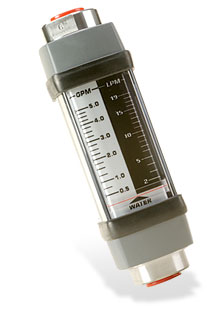

OMEGA™ FL-6400A in-line flowmeters are designed for use with many caustic or corrosive fluids. These meters feature
stainless steel construction, and because of the unique construction design, they can be mounted in any position.
The FL-6400A flowmeters have direct-reading scales for water on the metering tube, and, due to the sharp-edged orifice float,
variances in viscosity have only a minimal effect. FL-6400A flowmeters feature a unique spring-bound design flow rate
indicator, which can be used with both clear and opaque liquids for maximum versatility.
SPECIFICATIONS
Accuracy: ±2% FS
Repeatability: ±1%
Connections: 1/2 FNPT
Dimensions: 61.0 x 53.6 mm (2.4 x 2.11") for 116°C (240°F) units
Length: 168 mm (6.6") for all units
Max Pressure: 413.7 bar (6000 psig)
Max Temperature: 116°C (240°F)
Shipping Weight: 1.34 kg (2.95 lb)
Metering Tube: 316 SS
Float: 316 SS
Spring: 316 SS
Seals: FKM
Magnet: Polyphenylene sulfide/ceramic
|
|
|
|
|
|
† Price are shown in RMB.
Note: Comes complete with operators manual.
NIST traceable certificate not available on units with direct read scales.
For British standard pipe thread parallel, add suffix "-BSPP" to model number, no additional cost.
(OPTIONS SHOWN IN THIS "NOTE" ABOVE ARE PRICED IN US$)
Ordering Example: (1) FL-6412A-316 Water flowmeter, 1-10 GPM, ¥8,565.00
|
|
|
|
|
| |
|
