Large Capacity In-line Flowmeters - Capacities: 3 to 150 GPM of Water/3 to 150 GPM of Oil
FL-8100A and FL-8300A
1 year warranty

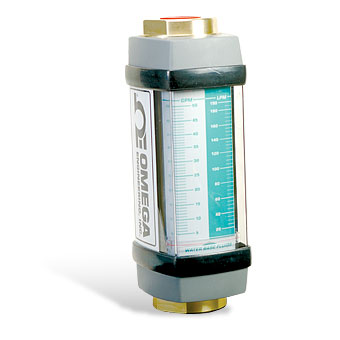

FL-8100A and FL-8300A:Large Capacity In-line Flowmeters - Capacities: 3 to 150 GPM of Water/3 to 150 GPM of Oil
Click for larger image.

¥ 14,525.00  FL-8305AB
• ±2% Full Scale Accuracy
• ±1% Full Scale Repeatability
• Mounts in Any Position
• Direct Reading for Oil and Water
• 3500 psig Pressure Rating
• Vertical Connections for In-Line Mounting
• High Viscosity Immunity
• For Clear and Opaque Fluids
• 240°F std, 400°F Opt.

View related products - Variable Area Flow Meters & Switches

Click to scroll below to order See Specs PDF View a printer friendly page

The FL-8000A Series of general purpose flowmeters is designed to provide economical, accurate flow rate indication for oil and water. These industrial flowmeters utilize a spring-and-piston type assembly, which enables them to be mounted in any position and gives immunity to changes in viscosity. The FL-8000A meters can be used in severe environments, at up to 241.3 bar (3500 psig) and 116°C (240°F).

SPECIFICATIONS
Accuracy: ±2% full scale
Repeatability: ±1%
Connections: 1-1/4 FNPT
Dimensions: 119 x 104 mm (4.7 x 4.1") for 116°C (240°F) units
Length: 310 mm (12-3/16") for all units
Max Pressure: 241.3 bar (3500 psig)
Max Temperature: 204°C (400°F) at 124 bar (1800 psig) max optional
Shipping Weight:
   Oil: 3.3 kg (7.3 lb)
   Water: 7.6 kg (16.8 lb)
Wetted Parts: Polyphenylene sulfide/ceramic magnet and FKM O-rings; FL-8100A has aluminum body and 302 SS spring; FL-8300AB has brass body and 302 SS spring
Order on www.omegaengineering.cn and 5% will be discounted when you checkout.
  To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping
 Part Number   Availability   Price(RMB)   Description    Qty.
 Standard Temperature (116°C/204°F) Units
 Oil Flowmeters (specific gravity 0.876)
 FL-8103A 5 Weeks   ¥8,985.00    3 to 30 GPM
 FL-8105A 5 Weeks   ¥8,985.00    5 to 50 GPM
 FL-8107A 5 Weeks   ¥8,985.00    10 to 75 GPM
 FL-8110A 2 Weeks   ¥8,985.00    10 to 100 GPM
 FL-8115A 5 Weeks   ¥8,985.00    10 to 150 GPM
 Water Flowmeter (specific gravity 1.0)
 FL-8302AB 5 Weeks   ¥14,525.00    3 to 30 GPM
 FL-8307AB 5 Weeks   ¥14,855.00    10 to 75 GPM
 FL-8309AB 5 Weeks   ¥14,525.00    10 to 100 GPM
 FL-8313AB 5 Weeks   ¥14,525.00    10 to 150 GPM
 High Temperature (204°C/400°F) Units
 Oil Flowmeters (specific gravity 0.876)
 FL-8103A-H 5 Weeks   ¥10,485.00    3 to 30 GPM
 FL-8105A-H 5 Weeks   ¥10,485.00    5 to 50 GPM
 FL-8107A-H 5 Weeks   ¥10,485.00    10 to 75 GPM
 FL-8110A-H 5 Weeks   ¥10,485.00    10 to 100 GPM
 FL-8115A-H 5 Weeks   ¥10,485.00    10 to 150 GPM
 Water Flowmeter (specific gravity 1.0)
 FL-8302AB-H 5 Weeks   ¥15,975.00    3 to 30 GPM
 FL-8305AB-H 5 Weeks   ¥15,975.00    5 to 50 GPM
 FL-8307AB-H 5 Weeks   ¥15,975.00    10 to 75 GPM
 FL-8309AB-H 5 Weeks   ¥15,975.00    10 to 100 GPM
 FL-8313AB-H 5 Weeks   ¥15,975.00    10 to 150 GPM
† Price are shown in RMB.

 Note: Comes complete with operator's manual.

For British standard pipe thread parallel, add suffix "-BSPP" to model number, no additional cost.

NIST traceable certificate is not available on units with direct read scales.

(OPTIONS SHOWN IN THIS "NOTE" ABOVE ARE PRICED IN US$)


  Ordering Example: (1) FL-8305AB A water inline flowmeter, 50 GPM, ¥14,525.00
