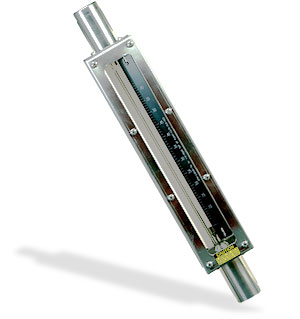

Heavy Duty Flowmeters With Stainless Steel Enclosures

FL900

Click for larger image.

^¥ 14,830.00 FL901G

•	Heavy Duty 304 SS Case and Covers
•	316 SS Rotatable Fittings Feature Dual Ports for Vertical or Horizontal Mounting
•	Unique Float Stop Design Allows Internals to Be Removed and Replaced Without Disturbing Tube or Shield
•	NIST Calibration Available
•	Direct Reading Scales (GPM Water or SCFM Air)
•	Full 4.76 mm (3/16") Thick Polycarbonate Safety Shields
•	Detachable, Clear Polycarbonate Scale Plate
View related products - Variable Area Flow Meters & Switches

The Omega FL900 series are heavy duty flowmeter with stainless steel enclosures, unique float stop design allowing internals to be reomoved and replaced without disturbing the tube and the tube has a direct reading scale. The accuracy is ±2% of full scale, repeatability is ±1%, the scale is 250 mm or 10 inches, the wetted parts are as follows: 316 stainless steel, EPR o-rings, and borosilicate glass.

SPECIFICATIONS
Accuracy: ±2% FS
Repeatability: ±0.5%
Scale: 250 mm (10")
Scale Plate and Shield: Polycarbonate
Wetted Parts: 316L SS, EPR O-rings, borosilicate glass
Max Temp: 93°C (200°F)
Turndown: 10:1

Water Models				Air Models			Max Pressure PSIG	Wt. kg (lb)
Model No.	Max GPM	ΔP inH₂O	Ports NPT	Model No.	Max SCFM	Ports NPT	Max Pressure PSIG	Wt. kg (lb)
FL-901G	0.64	7	½	FL910G	2.7	½	300	9 (20)
FL-902G	2.26	41	½	FL911G	10.2	½	300	9 (20)
FL-903G	5.20	18	1	FL912G	22.0	1	250	9 (20)
FL-904G	12.60	13	1	-	-	-	250	9 (20)
FL-904P	34.50	110	1	FL913P	100.0	1	250	9 (20)
FL-906P	34.0	24	1½	FL915P	102.0	1½	150	13.6 (30)
FL-908P	132.0	60	2	FL917P	350.0	2	125	13.6 (30)

Order on www.omegaengineering.cn and 5% will be discounted when you checkout.

To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping

Part Number	Availability	Price(RMB)	Description	Qty.

Water Models

FL901G	7 Weeks	¥14,830.00	0.64 GPM max, 1/2 NPT, rib guided float	qty.

FL902G	7 Weeks	¥14,135.00	2.25 GPM max, 1/2 NPT, rib guided float	qty.

FL903G	7 Weeks	¥17,005.00	5.20 GPM max, 1 NPT, rib guided float	qty.

FL904G	2 Weeks	¥16,205.00	12.60 GPM max, 1 NPT, rib guided float	qty.

FL904P	7 Weeks	¥16,205.00	34.50 GPM max, 1 NPT, pole guided float	qty.

FL906P	7 Weeks	¥30,090.00	34.00 GPM max, 1-1/2 NPT, pole guided float	qty.

FL908P	7 Weeks	¥30,565.00	132.00 GPM max, 2 NPT, pole guided float	qty.


Air Models

FL910G	7 Weeks	¥13,845.00	2.7 SCFM max, 1/2 NPT, rib guided float	qty.

FL911G	7 Weeks	¥14,830.00	10.2 SCFM max, 1/2 NPT, rib guided float	qty.

FL912G	2 Weeks	¥16,205.00	22.0 SCFM max, 3/4 NPT, rib guided float	qty.

FL913P	7 Weeks	¥16,190.00	100.0 SCFM max, 1 NPT, pole guided float	qty.

FL915P	7 Weeks	¥27,795.00	102.0 SCFM max,1-1/2 NPT, pole guided float	qty.

FL917P	7 Weeks	¥30,565.00	350.0 SCFM max, 2 NPT, pole guided float	qty.

† Price are shown in RMB.

Note: *Minimum flowrate is 10% of Maximum shown.

Comes complete with operator’s manual.

Model FL917P requires minimum 30 psi outlet pressure, to keep float from becoming unstable.

Weights shown are for both water and air models.

For a 5-point Nist calibration certificate, add suffix "-NIST5" to model number, add $250 to price.

For a 10-point NIST calibration certificate add "-NIST10" to model number, add $350 to price.

(OPTIONS SHOWN IN THIS "NOTE" ABOVE ARE PRICED IN US$)

Ordering Example: (1) FL906P Flowmeter for water, pole-guided float, 34 GPM max. flowrate, 1-1/2 NPT fitting, 150 psi maximum pressure, ¥30,090.00
