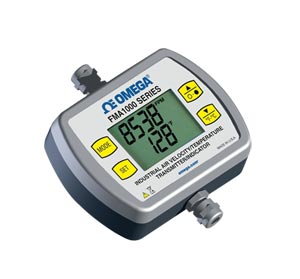

General Purpose Industrial Air Velocity/Temperature Transmitter/Indicator |
| FMA1000 Series |
|
 |
|
|
|
|
|
¥
10,000.00
FMA1001R-V1
|
| • |
Measures Air Velocities up to 50.8 m/sec (1o,000 FPM)
|
| • |
Measures Air Temperature up to 93°C (199°F)
|
| • |
3 Different Sensor Probe Configurations
|
| • |
250 msec Response time, programmable up to 2 seconds
|
| • |
Hot Wire Air Velocity Sensor Design
|
| • |
Economical Insertion Probe Design
|
| • |
Backlit LCD Displays Air Velocity and Air Temperature Simultaneously
|
| • |
Monitors Maximum and Minimum Air Velocity and Temperature
|
| • |
Dual Linear Analog Outputs for Air Velocity and Temperature
|
| • |
High and Low Velocity Alarm Voltage Outputs
|
| • |
USB serial PC Interface with Windows based data logging PC application
|
| • |
NEMA 4X (IP65) Industrial Enclosure
|
View related products - Anemometers & Wind Tunnels
|
| |
|
|
|
 |
The FMA1000 Series industrial air velocity and
temperature transmitter/indicator measures and
displays air velocity as well as air temperature in
research and development labs, HVAC applications,
and other manufacturing processes. The sensor
design is based on three RTD elements, one measures
air temperature and the other two measure air velocity by
measuring the heat loss from the RTD sensor as it
cools down by the air flow.
The FMA1000 series offers
many standard features such as display of air velocity
and temperature, two analogue outputs corresponding to
air velocity and temperature, high and low voltage
alarm outputs, USB serial interface, and Windows® based data logging software. The FMA1000 displays
the air velocity in different engineering units such as
FPM, m/sec, miles/hour, and km/hour. The air
temperature is displayed in °C or °F.
The cross sectional area (csa) of the pipe or duct can be entered by the user, allowing the display of flow volume in cubic metres per minute (m³/min) or cubic feet per minute (ft³/min).
Specifications
Air Velocity Ranges: 0 to 1000 FPM, 0 to 5.08 m/s; 0 to 5000 FPM, 0 to 25.4 m/s;
0 to 10000 FPM, 0 to 50.8 m/s
Air Volume Display: Store csa of pipe/duct to allow volumetric display in metres³/min or feet³/min
Air Temperature Range: -40 to 93°C
Accuracy:
Air Velocity: 1.5% full scale
Air Temperature: 0.5% full scale
Air Velocity/Temperature Probe: Stainless steel, 6.35 OD x 300 mm L
Air Velocity/Temperature Sensor: Three RTDs, 100 and 1000 Ω
Display: Backlit LCD, 32 x 51 mm
|
Analogue Output (Air Velocity): 4 to 20 mA, 0 to 5 Vdc, or 0 to 10 Vdc
Analogue Output (Air Temperature): 0 to 5 Vdc
Air Velocity/Temperature Probe Pressure: 10 bar max.
Operating Relative Humidity: < 80% RH non-condensing.
Operating Ambient Temperature:
Sensor Probe: -40 to 93°C
Electronic Case: 0 to 50°C
Alarms: High and low, voltage outputs, corresponding to air velocity
Power: 15 to 24 Vdc, 200 mA
Case Dimensions: 114 H x 89 W x 38 mm D
Weight: 230 g |
|
|
|
|
|
|
† Price are shown in RMB.
Note: Comes complete with 305 mm (12") long sensor probe, power/output cable, 4 point certificate of compliance and USB cable. Operator’s manual and Windows based PC interface software available for free download.
For units with a 4-point calibration certificate add '-CAL-3' to the model number and $240 to the price.
|
|
|
|
|
|
|
|
|
Part Number Builder |
|
|
|
|
|
|
|
|
Option Descriptions
|
|
(1)
|
Range
|
| |
Select
1 for 0 to 5.08 (0 to 1000)
2 for 0 to 25.4 (0 to 5000)
3 for 0 to 50.8 (0 to 10000)
4 for 0 to 2.54 (0 to 500)
5 for 0 to 10.16 (0 to 2000)
6 for 0 to 60.9 (0 to 12000)
|
(2)
|
Angle
|
| |
Select
A for Fixed probe top mount
B for Fixed probe right angle back mount
R for Remote probe
|
(3)
|
Output
|
| |
Select
MA for 4 to 20 mA
V1 for 0 to 5 Vdc
V2 for 0 to 10 Vdc
|
(4)
|
Additional Option
|
| |
Select
Nothing(leave field blank) for None
-S for 95 mm (3.75 in) short probe
|
|
NOTE: All combinations may not be valid, check spec sheet for valid part numbers.
|
| | |
|
|
|
|
|
|
| |
|
