FMG3000 and FMG3100 Series

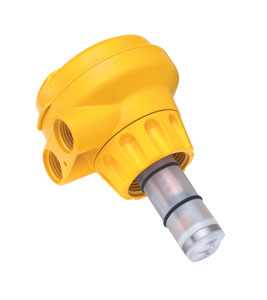

Magnetic Flowmeter (Insertion Style)

Click for larger image.

^¥ 9,365.00 FMG3002-PP

•	For 0.5 to 8 in. Pipes
•	No Moving Parts
•	0.05 to 5 m/s (0.15 to 16.4 ft/s) Flow Rate Range
•	Accurate Measurement Even in Dirty Liquids
•	Blind 4 to 20 mA or Frequency Output
•	No Pressure Drop
•	Corrosion Resistant Polypropylene
View related products - Electromagnetic Flow Meters

The FMG3000 Series magmeters are insertion-style magnetic flow sensors with no moving parts. All models are constructed of corrosion-resistant materials to provide long-term reliability with minimal maintenance costs. When these magmeters are used with OMEGA’s comprehensive line of installation fittings, sensor alignment and insertion depth are automatic. Fittings are required for installation. Please refer to accessories below.

These versatile, simple-to-install flowmeters deliver accurate flow measurement over a wide dynamic range in pipe sizes ranging from 0.5 to 8", satisfying the requirements of many diverse applications. FMG3000 Series magmeters offer a variety of output options for use with OMEGA flow instrumentation that has a frequency or 4 to 20 mA output. Flow velocity measurement is compensated for temperature via an integrated temperature sensor.

SPECIFICATIONS

Performance
Linearity: ±1% rdg ±0.01 m/s (0.033 ft/s)
Repeatability: ±0.5% of rdg @ 25°C (77°F)
Minimum Conductivity: 20 µS/cm
Pipe Size Range: 0.5 to 8"
Flow Range: 0.05 to 5 m/s (0.15 to 16.4 ft/s)

Wetted Materials
Sensor Body/Electrodes and Grounding Ring:
PP: Polypropylene/316L SS
O-Rings: FPM (FKM) standard
Other Materials:
    Case: PBT
    Protection Rating: NEMA 4X (IP65)

Power Requirements
4 to 20 mA: 21.6 to 26.4 Vdc, 22.1 mA max
Frequency: 4.5 to 26.4 Vdc, 15 mA max. Reverse polarity and short circuit protected

Output Specifications
Current Output (4 to 20 mA):
    Loop Accuracy: 32 µA max error (25°C @ 24 Vdc)
    Isolation: Low voltage <48 Vac/Vdc from electrodes and auxiliary power
Display (Optional):
    Characters: 2 x 16
    Window: Polyamide
    SPDT Relay: 5 A @ 30 Vdc max, 5 A @ 250 AC max
    Solid State Relay: 50 mA @ 30 Vdc, 50 mA @ 42 Vac
Maximum Cable: 300 m (1000')
Error Condition: 22.1 mA
Max Loop Resistance: 300 Ω
Frequency Output:
    Max Pull-Up Voltage: 30 Vdc
    Max Current Sink: 50 mA, current limited
Maximum Cable: 300 m (1000')

Environmental Requirements
Storage Temperature: -20 to 70°C (-4 to 158°F)
Relative Humidity: 0 to 95% (non-condensing)
Operating Temperature:
    Ambient: -10 to 70°C (14 to 158°F)
    Media: 0 to 85°C (32 to 185°F)
Max Operating Pressure: 10.3 bar @ 25°C (150 psi @ 77°F), 1.4 bar @ 85°C (20 psi @ 185°F)
Standards and Approvals: CE, NEMA 4X (IP65)

Order on www.omegaengineering.cn and 5% will be discounted when you checkout.

To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping

Part Number	Availability	Price(RMB)	Description	Qty.

Magnetic Flowmeter for 0.5 to 4" Pipes (Fittings sold separately)

FMG3001-PP	2 Weeks	¥9,715.00	Polypropylene/316LSS, 0.5 to 4" pipe size, frequency output	qty.

FMG3002-PP		¥9,365.00	Polypropylene/316LSS, 0.5 to 4" pipe size, 4 to 20 mA output	qty.


Magnetic Flowmeter with Display for 0.5 to 4" Pipes (Fittings sold separately)

FMG3001-PP-D	10 Weeks	¥19,155.00	Polypropylene/316LSS, with display, 0.5 to 4" pipe size, frequency output	qty.

FMG3002-PP-D	2 Weeks	¥18,520.00	Polypropylene/316LSS, with display, 0.5 to 4" pipe size, 4 to 20 mA output	qty.


Magnetic Flowmeter for 5 to 8" Pipes (Fittings sold separately)

FMG3101-PP	10 Weeks	¥10,675.00	Polypropylene/316LSS, 5 to 8" pipe size, frequency output	qty.

FMG3102-PP	3 Weeks	¥10,105.00	Polypropylene/316LSS, 5 to 8" pipe size, 4 to 20 mA output	qty.


Magnetic Flowmeter With Display for 5 to 8" Pipes (Fittings sold separately)

FMG3101-PP-D	10 Weeks	¥17,680.00	Polypropylene/316LSS, with display, 5 to 8" pipe size, frequency output	qty.

FMG3102-PP-D	2 Weeks	¥18,730.00	Polypropylene/316LSS, with display, 5 to 8" pipe size, 4 to 20 mA output	qty.


Popular Fittings (Click on Link Below for Full Offering)

FP-5305M	2 Weeks	¥2,155.00	0.5" pipe PVC molded fitting	qty.

FMG-5310	10 Weeks	¥5,490.00	1" Stainless Steel fitting	qty.

FP-5320M	2 Weeks	¥2,525.00	2" pipe PVC molded fitting	qty.

FP-5320GIS		Consult sales	2" pipe Galvanized Iron saddle fitting	qty.

FMG-5320	10 Weeks	¥4,280.00	2" Stainless Steel fitting	qty.

FP-5340GI	10 Weeks	¥2,690.00	4" pipe Galvanized Iron fitting	qty.

FP-5380S	10 Weeks	¥4,055.00	8" pipe PVC saddle fitting	qty.


Accessories

FPP-1220-0021	8 Weeks	¥99.00	FPM o-ring	qty.

FPP-1224-0021	8 Weeks	¥214.00	EPR (EPDM) o-ring	qty.

FPM-5000-LTCK	10 Weeks	¥760.00	Replacement Liquid Tight Connector Kit (contains three connectors)	qty.

CNI833	8 Weeks	¥4,055.00	1/8 DIN controller with relay outputs accepts 4 to 20 mA inputs.	qty.

DPF701		Consult sales	1/8 DIN frequency input meter for rate or total	qty.

† Price are shown in RMB.

Note: Comes complete with operator’s manual and liquid tight connector.

Display units also include 3 relays: 2 SPDT and 1 solid state.

Ordering Example: (1) FMG3102-PP Polypropylene/316LSS magmeter with 4 to 20 mA output, ¥10,105.00, plus (1) FP-5360S 6, ¥3,010.00, ¥10,105.00 + 3,010.00 = $13,115.00

Part Number Builder

Option Descriptions

(1)

Pipe Size

Select
00 for 0.5 to 4 inch
10 for 5 to 8 inch

(2)

Output

Select
1 for Frequency
2 for 4 to 20 mA

(3)

Wetted Materials

Select
PP for Polypropylene/316L SS
PVDF for PVDF/Hastelloy-C

(4)

Display Option

Select
Nothing(leave field blank) for Without display
-D for With display

NOTE: All combinations may not be valid, check spec sheet for valid part numbers.

Related Links - Manual, Related Products

Product Manual

Download FMG-3000 Series Display Version - Magmeter

Download FMG-3000 Series Blind Version - Magmeter

Related Products

	FP Series Fittings:
	Sensor Installation Fittings
