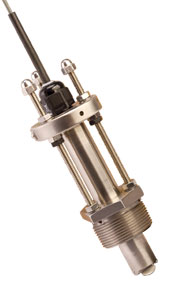

The FP-2540 and FP-3-1500 Series offer the added strength and corrosion resistance of stainless steel
for applications requiring low velocity measurement. Unique internal circuitry eliminates the need for
magnets in the process fluid, enabling lower flow measurement while maintaining the advantages of
insertion-type sensor design. The sensor’s unique rotor/bearing design offers low flow measuring
capability with increased reliability.
SPECIFICATIONS
Output Signal: Open collector, sinking Output Frequency: 15 Hz per fps Operating Range: 0.3 to 20 fps Pressure/Temperature: With standard FKM O-rings: 250 psi @ 82°C (180°F) Power Requirements: 5 to 24 Vdc Pipe Size Range: FP-2540: 1.5 to 24" FP-3-1500-2X: 1.5 to 36" Repeatability: ±0.5% of full range Linearity: ±1% of full range MATERIALS Sensor Fitting: 316 SS O-rings: FKM Rotor: CD4MCu Rotor Bearings: PEEK Cable Type: Twisted pair with foil shield Cable Length: 7.6 m (25'); 305 m (1000') max
† Price are shown in RMB.
Note: Comes complete with 152 mm (6") installation ruler and operator’s manual.
Ordering Example: (1) FP-2541 high performance flow sensor with 1.5, ¥7,430.00
