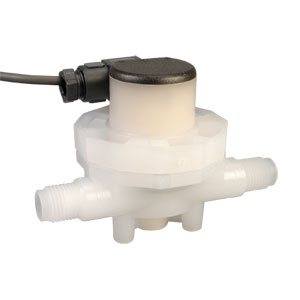

The OMEGA™ FP-5070 Mini-Flow sensor is ideal for precision low flow. The FP-5070 is available in four flow range configurations, covering a very wide range of flows. This allows for easy selection of the range that best fits your application. Typical applications include pilot plant installations, monitoring of critical flows in laboratories, fluid dispensing, bottling lines, and medical flow applications. Other successful applications include monitoring liquid ingredient additions, such as food dyes, in the food processing industry. The FP-5070 is compatible with the FPM-5500, FPM-9010A, DPF701 and DPF5300
SPECIFICATIONS Accuracy: ±2% of flowrate Linearity: ±0.25% of flowrate Reproducibility: ±0.25% of flowrate Pressure Rating: 80 psig @ -30°C (-22°F); 45 psig @ 120°C (248°F) Temperature Range: -30 to 120°C (-22 to 248°F) Viscosity Range: 0.2 to 20.0 cSt Power: 5 to 24 Vdc @ 10 mA maximum, 3-wire Wetted Materials: PVDF, PTFE and FKM Pressure Drop: 10 psid @ 50% flow, 26 psid @ 100% flow Signal Output: 5 Volt, open collector pulse Fluid Connections: ¼ FNPT Cable Length: 7.5 m (25'), resistor required 10 kΩ recommended Dimensions: 95 lay length x 66 H x 68 mm W (3.74 x 2.6 x 2.68") Shipping Weight: 0.4 kg (0.8 lb)
† Price are shown in RMB.
Note: Comes complete with 7.5 m (25') of cable and operator’s manual.
Ordering Example: (1) FP-5074-PV Mini-flow sensor up to 6000 ml/min, ¥8,940.00
