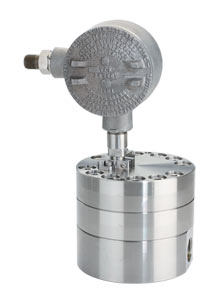

The FPD2000 Series represents a
positive displacement meter that is
affordable and accurate. One
primary feature is the ability to
maintain consistent accuracy
despite changing viscosity
conditions. This reliability, coupled
with a large turndown range, offers
an affordable replacement for older
turbine technology. The meter’s
solid construction and excellent
dynamic response are well suited
to the measurement of oil, grease,
fuel, solvents, polyurethanes,
brake fluid, skydrol as well as
other nonabrasive lubricating fluids.
Since there is no need for straight
run piping upstream or downstream
of the flow meter, the FPD2000 flow
meters are simple to use and to
install. The meters produce good
resolution and high accuracy at low
flow rates. Flow may be bidirectional,
such as for cylinder
position measurements, without
damage to internal parts.
SPECIFICATIONS Accuracy: ±0.5% over 10:1 turndown with 30cP fluid Repeatability: ±0.1% Max Fluid Temperature: Aluminum Body: Meter 85°C (185°F) Stainless Body: Meter 204°C (400°F) Pressure Maximum: 345 bar (5000 psi) Wetted Materials Body: FPD2000 Series: Aluminum FPD2010 Series: 303 stainless steel FPD2020 Series: 316 stainless steel Gear: Stainless steel O-Ring: PTFE, FKM (optional) Bearings: Stainless steel
Outputs Temperature Range (Electronics): Standard Aluminum and Stainless Steel versions: -40 to 85°C (-40 to 185°F) Square Wave: (Basic unit) Supply Voltage: +10 to 28 Vdc Supply Current: 8 mA @ 12 Vdc, 12 mA @ 24 Vdc Duty Signal: 50% ±15% Minimum Signal: 0.5 Hz Frequency: Flow dependent, up to 2000 Hz Driving Capacity: 50 mA max resistive load Output Impedance: 40Ω - analog switch and self-resetting fuse
Analog Output (-A Models) Supply Voltage: 10 to 30 Vdc Output: 4 to 20 mA Input: 0.25 Hz to 5 KHz Amplitude: 1 Vp-p to 40 Vp-p Update Time: 1/F + 25 msec Linearity: ±0.01% of reading Enclosure Rating: IP54
Model No.
Pulses/Liter (Pulses/Gallon)
Body Dia cm (inch)
*Body Heightcm cm (inch)
Filtration (microns)
FPD20X1
14,000 (53,000)
7.6 (3)
8.6 (3.4)
30
FPD20X2
4200 (15,900)
8.4 (3.3)
8.6 (3.4)
30
FPD20X3
1700 (6600)
8.4 (3.3)
8.6 (3.4)
30
FPD20X4
470 (1800)
12.4 (4.9)
13.8 (5.45)
30
FPD20X5
420 (1600)
21.3 (8.4)
17 (6.7)
200
† Price are shown in RMB.
Note: Comes complete with operator's manual, connector, and K-Factor certificate,
Certificate does not include points and is not a NIST cert.
FPD2000, pulse output models come complete with the 6-pin FPD2000-CONNECTOR (Assembly and hook-up wire required).
FPD2000-A, 4-20 mA output models come complete with the 3-pin FPD2000A-CONNECTOR (Assembly and hook-up wire required).
Ordering Example: (1) FPD2001 Aluminum gear meter with pulse output, 1/4 NPT connections and 0.003 to 0.8 GPM range, ¥20,025.00
Part Number Builder
Option Descriptions
(1)
Model & Range LPM (GPM)
Select 01 for Aluminum gear meter range 0.01 to 3 (0.003 to 0.8) 02 for Aluminum gear meter range 0.04 to 7.5 (0.01 to 2) 03 for Aluminum gear meter range 0.11 to 26.4 (0.03 to 7) 04 for Aluminum gear meter range 0.19 to 75 (0.05 to 20) 05 for Aluminum gear meter range 1.9 to 227 (0.5 to 60) 11 for 303 SS gear meter range 0.01 to 3 (0.003 to 0.8) 12 for 303 SS gear meter range 0.04 to 7.5 (0.01 to 2) 13 for 303 SS gear meter range 0.11 to 26.4 (0.03 to 7) 14 for 303 SS gear meter range 0.19 to 75 (0.05 to 20) 15 for 303 SS gear meter range 1.9 to 227 (0.5 to 60) 21 for 316 SS gear meter range 0.01 to 3 (0.003 to 0.8) 22 for 316 SS gear meter range 0.04 to 7.5 (0.01 to 2) 23 for 316 SS gear meter range 0.11 to 26.4 (0.03 to 7) 24 for 316 SS gear meter range 0.19 to 75 (0.05 to 20)
(2)
Output
Select Nothing(leave field blank) for Pulse output -A for 4 to 20 mA output
(3)
Additional Option
Select Nothing(leave field blank) for None -HT for High Temperature option on stainless steel models
NOTE: All combinations may not be valid, check spec sheet for valid part numbers.
