Heavy Duty Diaphragm-Type Injector Metering Pumps  - Discontinued
FPUDT1500 Series
1 year warranty CE

Heavy Duty Diaphragm-Type Injector Metering Pumps
FPUDT1500 Series:Heavy Duty Diaphragm-Type Injector Metering Pumps  - Discontinued

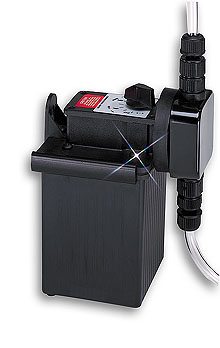

Click for larger image.

• Single Intake and Discharge
• Check Valve Design
• Quick Adjusting Feed Mechanism
• Heavy-Duty Cartridge Pumphead
• PTFE /EPDM Diaphragm
• Optional Timer Available
• Supplied with Flow Indicator
and 7.5 m (25') of Tubing
• Can be Wall- or Shelf-Mounted
• 100% Duty Cycle

View related products - Pumps

Click to scroll below to order See Specs PDF Manuals Related Items View a printer friendly page

The FPUDT1500 series has been discontinued. Please see the FPUD1100 Series as a possible alternative or contact our Flow Engineering department.

The FPUDT1500 Series injector pumps feature a heavy-duty cartridge valve pumphead made of injection-molded polypropylene. The pump includes double-sealed PVDF cartridge valve fittings, FKM O-ring seals, ceramic ball checks, Hastelloy C valve springs, and a PTFE/EPDM diaphragm. Units with the optional built-in electronic percentage 5 second cylce timer allow the user to adjust the feed rate with just the timer or to adjust both the stroke of the diaphragm and the timer for precise feed control. The pump can also be purchased as part of a tank system. See FPUTS1500.
Order on www.omegaengineering.cn and 5% will be discounted when you checkout.
  To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping
 Part Number   Availability   Price(RMB)   Description    Qty.
 FPUDT1501    Consult sales   6.6 GPD, 22 ml/min MAX, 14 Strokes/min, 125 psi MAX
 FPUDT1502    Consult sales   12.9 GPD, 34 ml/min MAX, 14 Strokes/min, 125 psi MAX
 FPUDT1503    Consult sales   * 16.3 GPD, 46 ml/min MAX, 30 Strokes/min, 125 psi MAX
 FPUDT1504    Consult sales   * 30.0 GPD, 82 ml/min MAX, 30 Strokes/min, 125 psi MAX
 FPUDT1505    Consult sales   * 26.6 GPD, 77 ml/min MAX, 45 Strokes/min, 125 psi MAX
 FPUDT1506    Consult sales   *49.0 GPD, 129 ml/min MAX, 45 Strokes/min, 125 psi MAX
 FPUDT1507    Consult sales   * 31.1 GPD, 92 ml/min MAX, 60 Strokes/min, 125 psi MAX
 FPUDT1508    Consult sales   * 57.7 GPD, 158 ml/min MAX, 60 Strokes/min, 125 psi MAX
 FPUDT1509    Consult sales   * 68.4 GPD, 180 ml/min MAX, 125 Strokes/min, 125 psi MAX
 FPUDT1510    Consult sales   *119.7 GPD, 315 ml/min MAX, 125 Strokes/min, 70 psi MAX
† Price are shown in RMB.

 Note: Comes complete with fittings, adaptors, flow indicator, 1.5 m (5') each of polyethylene and vinyl tubing, and operator’s manual.

For built-in stroke and time interval adjustment, add suffix "-D" to model number, add $49 to price.

For 230 V/60 Hz voltage, add suffix "-230V60" to model number; add $10 to price. For 220 V/50 Hz voltage, add suffix "-220V50" to model number; add $10 to price. For 24 V/60 Hz voltage, add suffix "-24V60" to model number; add $10 to price.

(OPTIONS SHOWN IN THIS "NOTE" ABOVE ARE PRICED IN US$)
